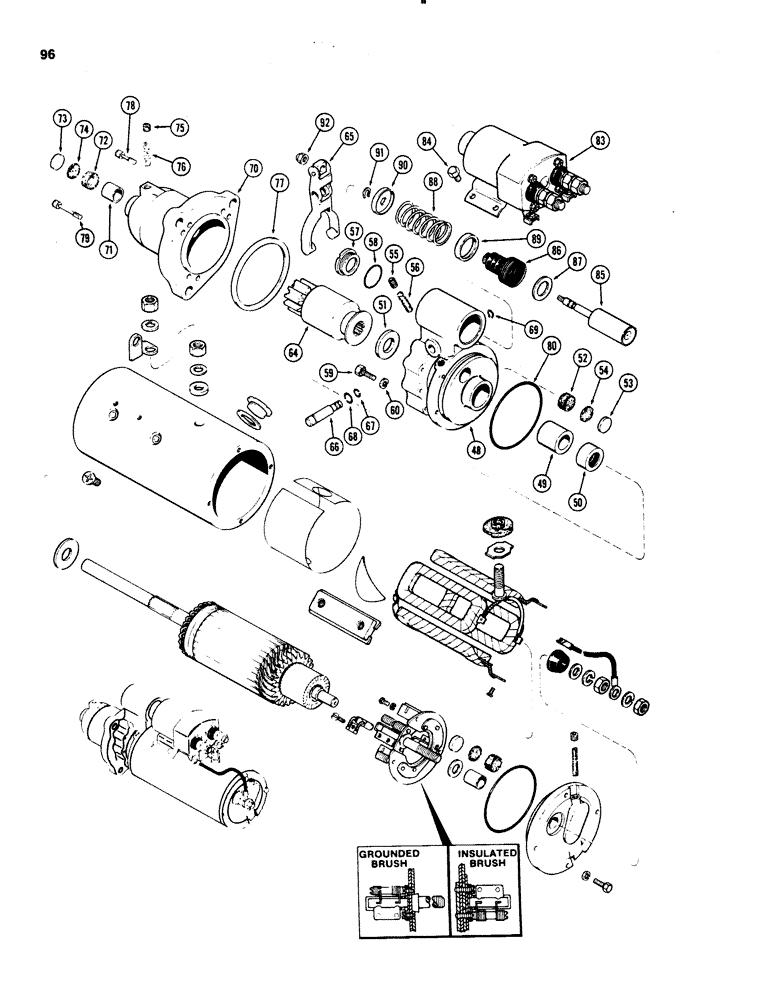

Запчасти Case 1150C (096) - R43343 STARTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
R43343
STARTER MOTOR
STARTER ASSEMBLY - engine Includes: Ref. 2 - 43 on Figure 094
1шт.
48
R21579
HOUSING
ASSEMBLY - shift lever, Includes: Ref. 49 - 92
1шт.
49
A47261
BUSHING
- armature
1шт.
50
R21582
OIL SEAL
- oil
1шт.
51
R15145
DISC
WASHER - brake
1шт.
52
A41923
PLUG
- felt
1шт.
53
41-57
PLUG,Exp, 1 1/32"
- reservoir
1шт.
54
A41973
GASKET
- plug
1шт.
55
221-1041
PLUG
- oil wick
1шт.
56
R15023
WICK
- oil
1шт.
57
R21587
PLUG
- lever housing
1шт.
58
A41924
GASKET
- plug
1шт.
59
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
5шт.
60
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
64
A47523
DRIVE
ASSEMBLY - starter
1шт.
65
D32547
LEVER
- shifter
1шт.
66
A42199
PIN
STUD - pivot, shift lever
1шт.
67
A47259
O-RING,0.244" ID x 0.391" OD
- small, pivot stud
1шт.
68
A47258
O-RING,0.369" ID x 0.515" OD
- large, pivot stud
1шт.
69
G46146
SNAP RING,#37, Ext
Ring, Snap, , pivot stud #37, Ext
1шт.
70
A44168
HOUSING
ASSEMBLY - drive end, Includes: Ref. 71 - 76
1шт.
71
A47257
BUSHING
- armature
1шт.
72
A41923
PLUG
- felt
1шт.
73
41-57
PLUG,Exp, 1 1/32"
- reservoir
1шт.
74
A41973
GASKET
- plug
1шт.
75
221-1041
PLUG
- oil wick
1шт.
76
R15023
WICK
- oil
1шт.
77
R21562
GASKET
- drive end to shifter housing
1шт.
78
D32489
HEX SOC SCREW,5/16" - 18 x 0.86"
SCREW - housing (short)
1шт.
79
D32488
HEX SOC SCREW,5/16" - 18 x 1.50"
SCREW - housing (long)
5шт.
80
D31954
O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro
- drive end, 4-1/8 x 4-3/8 x 1/8 inch (104.78 x 111.12 x 3.18 mm)
1шт.
83
REF
INSTRUCTION
SOLENOID ASSEMBLY - starter (See Figure 102)
1шт.
84
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- solenoid
4шт.
85
A42309
PLUNGER
- solenoid
1шт.
86
A42308
BOOT
- plunger
1шт.
87
A41922
WASHER
SEAT - boot
1шт.
88
A41242
SPRING
- plunger return
1шт.
89
A43380
BACK-UP RING
SEAT - spring (inner)
1шт.
90
A43419
SEAT
- spring (outer)
1шт.
91
G46146
SNAP RING,#37, Ext
Ring, Snap, , spring retainer #37, Ext
1шт.
92
131-31
LOCK NUT,5/16"-24, G8
NUT - plunger to lever
1шт.
Выбрано товаров: 41
