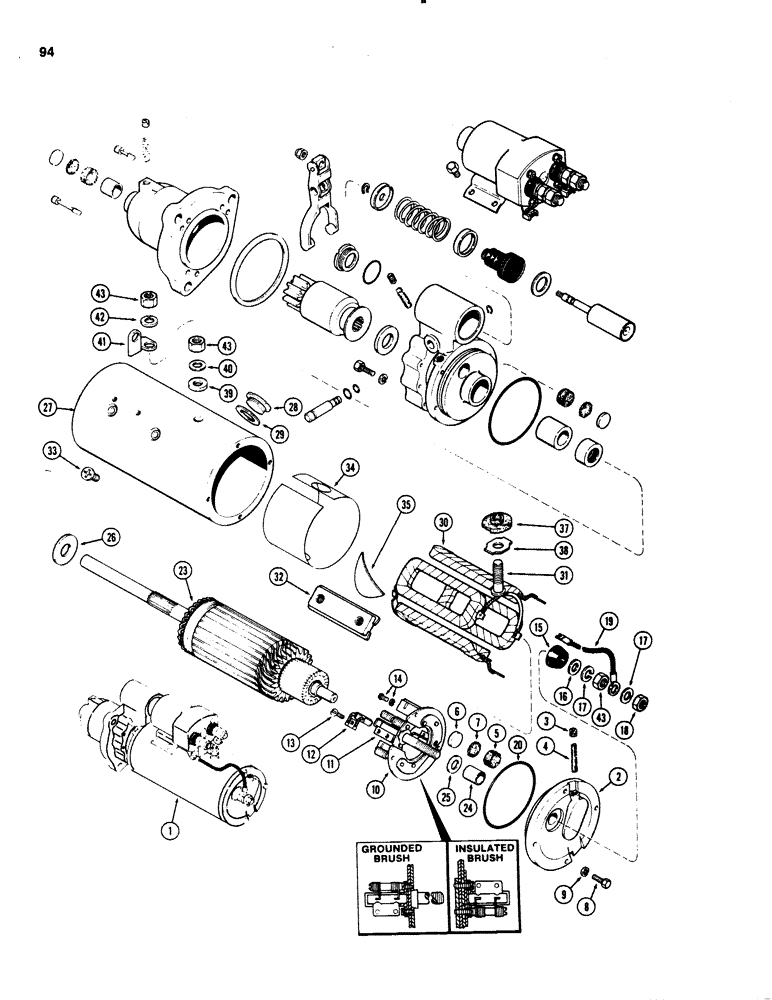

Запчасти Case 1150C (094) - R43343 STARTER (04) - ELECTRICAL SYSTEMS

1

R43343

STARTER MOTOR

STARTER ASSEMBLY - Delco-Remy 1114774, Includes: Ref. 2 - 43

1шт.

2

A47887

FRAME

ASSEMBLY - commutator end (Replaces A40897), Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- reservoir

1шт.

7

A41973

GASKET

- plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

10

A42373

PLATE

ASSEMBLY - brush holder, Includes: Ref. 11

1шт.

11

A25393

SPRING

- brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8-32 x 5/16 inch round head

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

1шт.

15

A43701

BUSHING

- insulating terminal

1шт.

16

D30006

WASHER

- stud

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - 1/2 inch lock

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: terminal-solenoid

1шт.

20

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- end frame, 4-1/8 x 4-3/8 x 1/8 inch (104.78 x 111.13 x 3.18 mm)

1шт.

23

A41458

ARMATURE

1шт.

24

A42323

BUSHING

- armature shaft

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, commutator end

1шт.

26

A40892

WASHER

- thrust, center

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

- inspection

2шт.

29

A41924

GASKET

- plug

2шт.

30

A41950

COIL ASSY.

COIL ASSEMBLY - field, Includes: Ref. 31

1шт.

31

A40896

STUD

- terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- 3/8 x 5/8 inch NC Phillips

8шт.

34

A44169

INSULATOR

INSULATION - coil terminal

1шт.

35

A41977

RUBBER INSULATOR

INSULATION - coil end

1шт.

A41925

BUSHING

ASSEMBLY - field coil terminal, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - insulator

1шт.

39

D30005

INSULATOR

- outer, field terminal

1шт.

40

D30006

WASHER

- terminal

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - 1/2 inch lock

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
