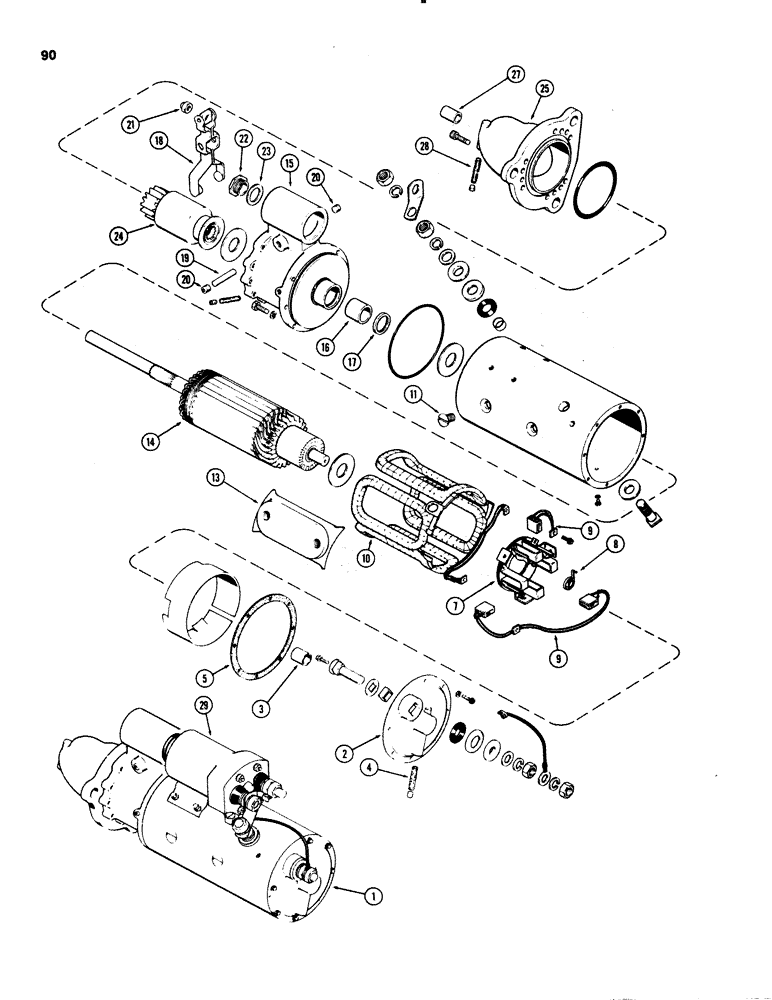

Запчасти Case 1150C (090) - R37343 STARTER (04) - ELECTRICAL SYSTEMS

1

R37343

X

STARTER ASSEMBLY - (Prestolite #MES64066), Includes: Ref. 2 - 29 and Ref. 34 - 66 on Figure 92

1шт.

2

A45647

HEAD

ASSEMBLY - commutator end, Includes: Ref. 3 and 4

1шт.

A45659

KIT

PACKAGE - bearing and wick

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

5

A45640

GASKET

- head (Package of 5)

1шт.

7

A45650

PLATE

ASSEMBLY - brush holder, Includes: Ref. 8

1шт.

8

A45637

SPRING

SET - brush (Set of 8)

1шт.

9

A45652

BRUSH, COMMUTATOR

BRUSH SET - starter

1шт.

10

A45648

COIL

ASSEMBLY - field, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

8шт.

NSS

NOT SOLD SEPARAT

GASKET - pole shoe screws (not used this application)

8шт.

13

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

14

A45654

ARMATURE

- starter

1шт.

15

A45655

HOUSING

ASSEMBLY - intermediate, Includes: Ref. 16 and 17

1шт.

16

A25672

BEARING

- 7/8 x 1 x 1 inch (22.23 x 25.4 x 25.4 mm)

1шт.

17

A45649

SEAL

- oil, 7/8 x 1-1/4 x 3/16 inch (22.23 x 31.75 x 4.76 mm)

1шт.

18

A45084

YOKE

- shifter

1шт.

A45661

PACKAGE

- yoke attaching parts, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

PIN - yoke pivot

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - yoke pin

2шт.

21

NSS

NOT SOLD SEPARAT

NUT - yoke stop, 5/16 inch - 24 hex

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - housing

1шт.

23

A45639

GASKET

- plug (Package of 10)

1шт.

24

A45636

PISTON

DRIVE ASSEMBLY

1шт.

25

A45651

HOUSING

ASSEMBLY - drive end, Includes: Ref. 27 and 28

1шт.

A45658

PACKING

PACKAGE - bearing and wick

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - armature shaft

1шт.

28

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

29

REF

INSTRUCTION

SOLENOID ASSEMBLY - (See Figure 102)

1шт.
