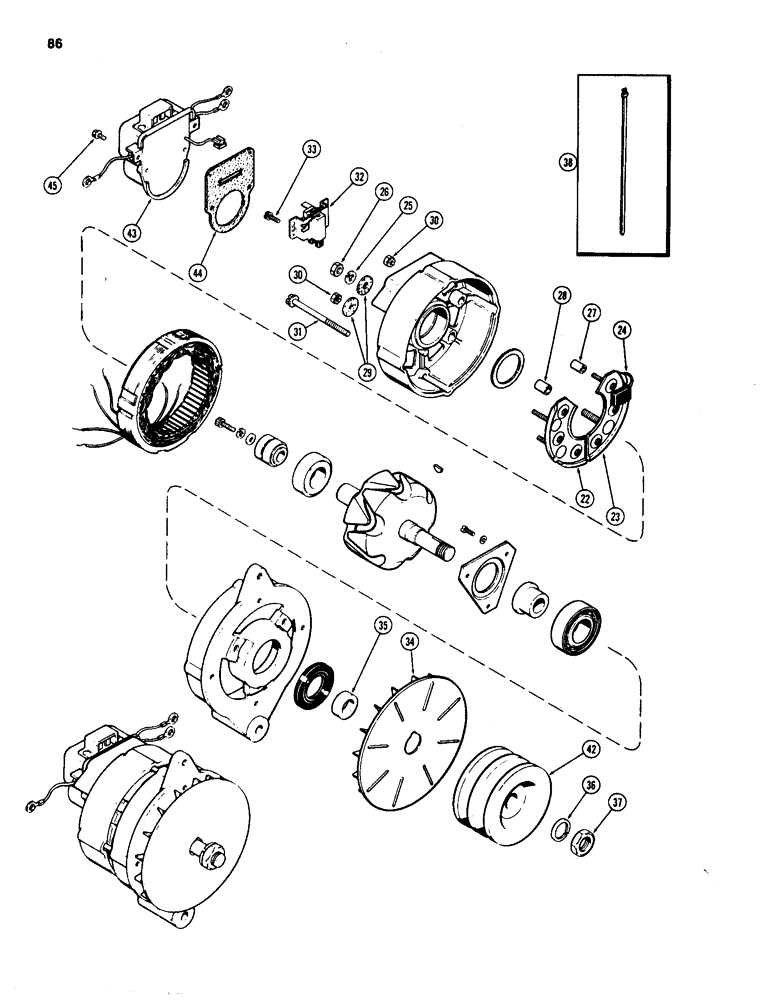

Запчасти Case 1150C (086) - R36587 ALTERNATOR, MOTOROLA NO. 70D44025F01 (04) - ELECTRICAL SYSTEMS

A47090

ALTERNATOR

ALTERNATOR ASSEMBLY - Includes: Ref. 22 - 38 and Ref. 2 - 18 on Figure 084

1шт.

87297298

REMAN-ALTERNATOR

Reman For New PN A47090

1шт.

87297299

CORE-ALTERNATOR

Return Number

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

22

A47165

DIODE

RECTIFIER ASSEMBLY - negative, with diodes and studs, Serial Range: (anode-plate)

1шт.

23

A47164

DIODE

RECTIFIER ASSEMBLY - positive, with diodes and studs, Serial Range: (cathode-plate)

1шт.

24

A45253

DIODE ELEMENT

DIODE ASSEMBLY - trio

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex

3шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

NUT, Jam, 1/4"-20, G5

1шт.

27

A45254

SPACER

SPACER - trio diode

1шт.

28

A44771

SLEEVE CYLINDER

SLEEVE - insulator, 1/4 x 5/16 x 1/2 inch (6.35 x 7.94 x 12.7 mm)

1шт.

28

A47156

SLEEVE CYLINDER

SLEEVE - insulator, 3/16 x 1/4 x 3/8 inch (4.76 x 6.35 x 9.53 mm)

1шт.

29

A45053

WASHER

WASHER - insulating, 1/4 x 3/4 x 1/16 inch (6.35 x 19.05 x 1.59 mm) (Order A47613)

2шт.

29

A41038

WASHER

WASHER - insulating, 3/16 x 3/4 x 1/16 inch (4.76 x 19.05 x 1.59 mm) (Order A47612)

2шт.

30

A41060

LOCK NUT

NUT - #10-24 hex with external shakeproof washer

3шт.

31

A45030

BOLT

BOLT - through, #10 NF x 4 inch

4шт.

32

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - with holder

1шт.

33

A44780

SCREW

SCREW - brush holder to rear housing

2шт.

34

A42431

FAN

FAN - ventilating

1шт.

35

A47162

SPACER

SPACER - fan

1шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Pulley 5/8"

1шт.

37

A41035

NUT

NUT - pulley retaining

1шт.

38

T54520

STRAP

WRAP - wire locking (Nylon tie)

2шт.

42

A41361

PULLEY

PULLEY

1шт.

43

A47167

REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.

44

A47159

GASKET

GASKET - regulator to rear housing

1шт.

45

182-519

SCREW,Sl Pan Hd, #4 - 40 x 3/16"

SCREW - regulator mounting, #8-32 x 1/2 inch self-tapping

2шт.

45

187-1089

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW - regulator mounting, #8-32 x 3/4 inch slotted hex washer head

2шт.
