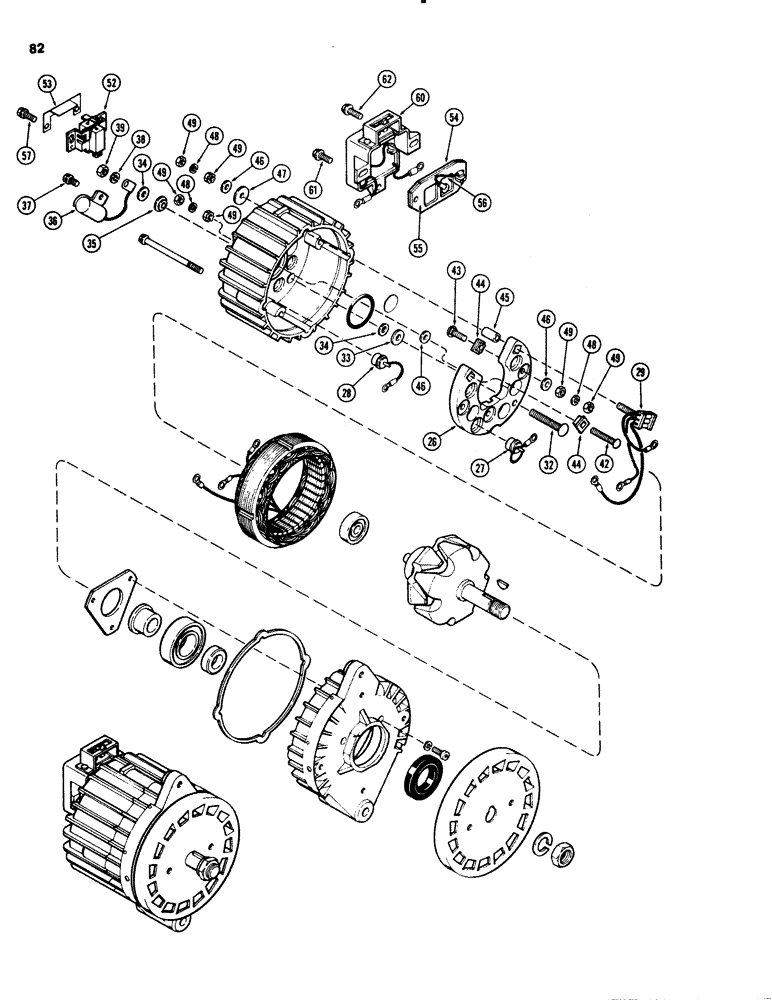

Запчасти Case 1150C (082) - R36588 ALTERNATOR, MOTOROLA NO. 70D44966E01 (04) - ELECTRICAL SYSTEMS

A47263

ALTERNATOR

ALTERNATOR ASSEMBLY - , Includes: Ref. 26 - 57 and Ref. 2 - 24 on Figure 080

1шт.

87297298

REMAN-ALTERNATOR

Reman For New PN A47263

1шт.

87297299

CORE-ALTERNATOR

Return Number

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

26

A43445

HEAD

SPARE PART HEAT SINK - positive diodes

1шт.

27

A43425

DIODE

DIODE - positive (in heat sink)

3шт.

28

A43424

DIODE

SPARE PART DIODE - negative (in rear housing)

3шт.

29

A47849

DIODE

DIODE - field (Replaces A47277)

1шт.

32

111-138

BOLT,1/4"-28 x 1 3/4", G2, Ribbed Neck

BOLT - 1/4-28 x 1-3/4 inch square neck round head

1шт.

33

A43433

INSULATOR

INSULATOR - 1/4 ID x 5/8 inch OD (6.35 x 15.88 mm)

1шт.

34

A43428

INSULATOR

INSULATOR - 1/4 ID x 1/2 inch OD (6.35 x 12.7 mm)

2шт.

35

A47276

SPACER

SPACER - capacitor

1шт.

36

A47273

CAPACITOR

CAPACITOR

1шт.

37

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - capacitor, #10-24 x 5/8 inch self-tapping

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

39

129-121

NUT,1/4"-28, G5

NUT, 1/4"-28, G5

1шт.

42

111-322

BOLT - #10-24 x 1-3/8 inch square neck round head

1шт.

43

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

3шт.

44

A41041

INSULATOR

INSULATOR - (square type)

4шт.

45

A41040

INSULATOR

SLEEVE - insulator (for field diode)

1шт.

46

A43292

WASHER

INSULATOR - #10 x 1/2 inch OD (12.7 mm)

3шт.

47

A41038

WASHER

INSULATOR - #10 x 3/4 inch OD (19.05 mm) (Order A47612)

1шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

49

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

10шт.

52

A47272

BRUSH

BRUSH AND HOLDER ASSEMBLY

1шт.

53

A43434

INSULATOR

INSULATOR - brush holder

1шт.

54

A47265

COVER

COVER - brush holder

1шт.

55

A43440

GASKET

SPARE PART GASKET - brush cover

1шт.

56

A47274

CABLE

WIRE - connector

1шт.

57

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - #8 x 1/2 inch self-tapping

2шт.

60

A47275

REGULATOR

SPARE PART REGULATOR ASSEMBLY - voltage

1шт.

61

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW - #10-24 x 3/8 inch self-tapping

1шт.

62

187-1090

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - #10-24 x 5/8 inch self-tapping

1шт.
