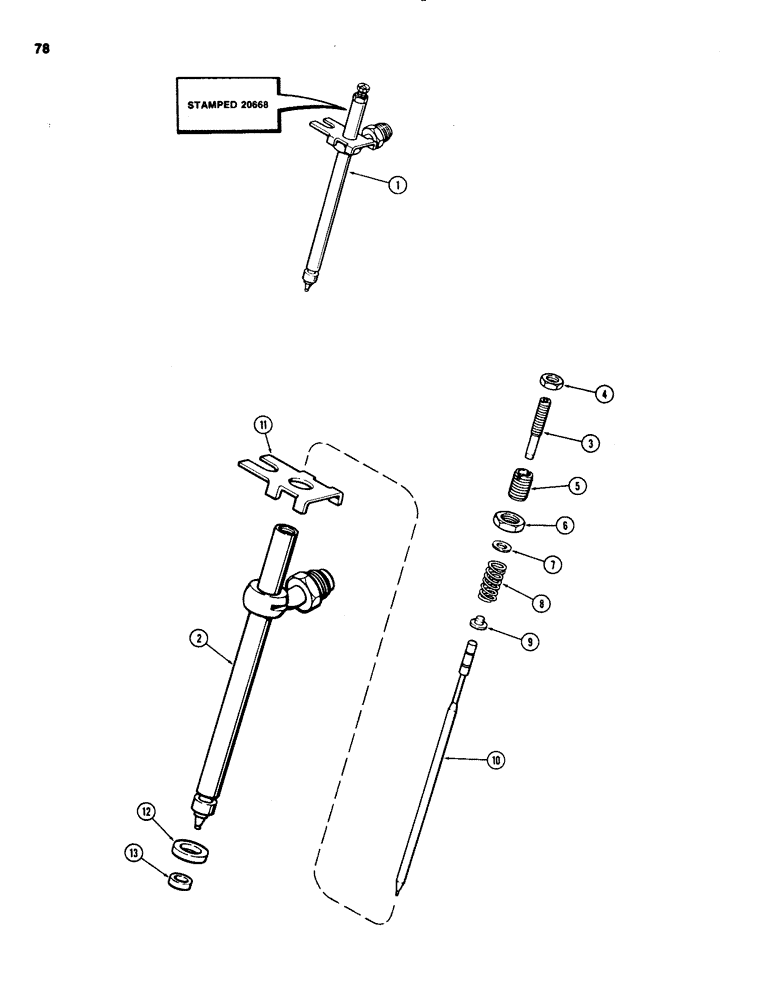

Запчасти Case 1150C (078) - INJECTOR NOZZLES (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20668 on body) (red color code), Includes: Ref. 2 - 13

6шт.

WHENEVER A NOZZLE IS REMOVED FROM THE HEAD, A41403 WASHER AND A41402 SEAL MUST BE REPLACED BEFORE THE NOZZLE IS INSTALLED BACK INTO THE HEAD.

1шт.

A138322R

REMAN-INJECT NOZZLE

1150C

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A48321

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45632

SHIM

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- pressure adjusting (red color code) 11/16 inch free length (17.46 mm)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
