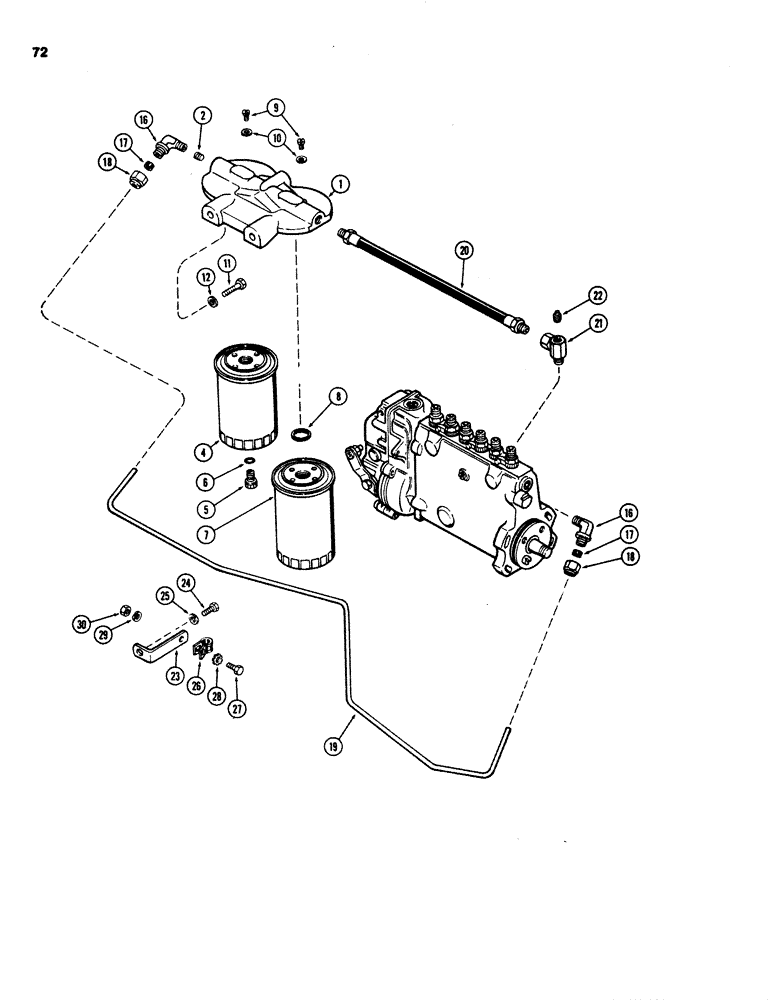

Запчасти Case 1150C (072) - FUEL FILTER SYSTEM, 451BD DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fuel filters (Replaces A62339), Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8 inch PT, socket head

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - fuel filters, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - first stage

1шт.

5

G49080

PLUG

- drain, 3/8 inch NF, 12 point head

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drain plug

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER - second stage

1шт.

8

A42315

GASKET

- filter to head, 15/16 x 1-3/16 x 1/4 inch (23.81 x 30.16 x 6.35 mm)

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, #10-32 x 5/16 inch slotted head

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 3/16 x 3/8 x 1/16 inch aluminum (4.76 x 9.53 x 1.59 mm)

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

16

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY, Includes: Ref. 17 and 18

2шт.

17

222-103

SLEEVE,5/16" Tube

(7.94 mm) 5/16" Tube

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - for 5/16 inch tube (7.94 mm)

1шт.

19

A157329

TUBE

- pump to first stage filter (Replaces A62342)

1шт.

20

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- second stage, Serial Range: filter-pump

1шт.

21

A20539

FITTING

UNION - switch (in injection pump)

1шт.

22

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - switch, 1/8 inch PT, square head

1шт.

23

A64856

BRACKET

- tube

1шт.

24

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Bracket to bolt Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube holder

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

28

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

25-104

NUT,1/4"-20, G5

1шт.
