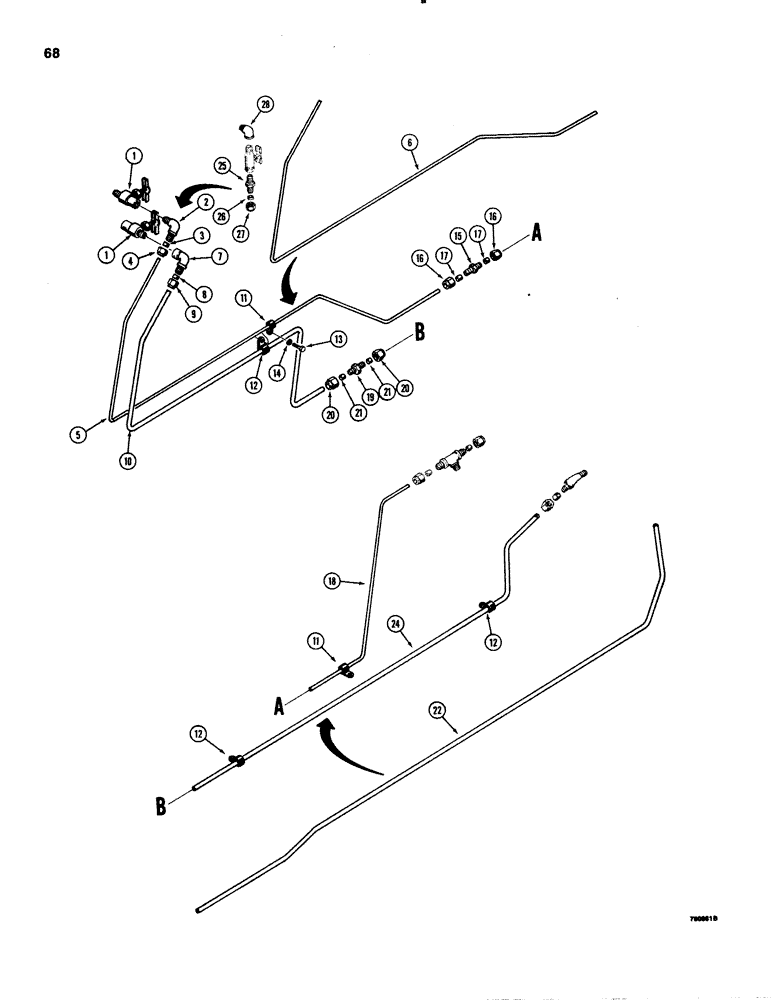

Запчасти Case 1150C (068) - FUEL LINES (03) - FUEL SYSTEM

1

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - fuel

2шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 90 degree, upper, if used, see optional parts below, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

3

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

elbow

1шт.

5

R41364

TUBE

dozer and drawbar models, upper, fuel return

1шт.

6

R41365

TUBE

loader models, upper, fuel return

1шт.

222-57

ELBOW,5/8"-24 x 1/4 NPTF

- 90 degree, lower, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

8

222-104

SLEEVE,3/8" Tube

elbow

1шт.

9

222-114

NUT,5/8"-24

elbow

1шт.

10

R41363

TUBE

lower

1шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

tube, 1/4" (6 mm) ID

3шт.

12

49852

PTO SHAFT

tube, 3/8" (9 mm) ID

4шт.

13

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

222-3

FITTING,1/2"-24 Flex Tube

ADAPTER - straight, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

16

87017024

TUBE NUT,1/2"-24

adapter

2шт.

17

222-102

SLEEVE,1/4" Tube

Adapter 1/4" Tube

2шт.

18

R27098

TUBE

from fuel injectors

1шт.

222-5

FITTING,5/8"-24 Flex Tube

ADAPTER - straight, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

20

222-114

NUT,5/8"-24

adapter

2шт.

21

222-104

SLEEVE,3/8" Tube

adapter

2шт.

22

R27096

TUBE,0.375" OD

fuel supply, dozer and drawbar models, used before tractor SN 7307688

1шт.

23

R42751

FUEL TUBE,0.375" OD

fuel supply, dozer and drawbar models, used SN 7307688 and after, not shown

1шт.

24

R27099

FUEL TUBE,0.375" OD

fuel supply, loader models

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - straight, fuel return, if used, optional fuel return fittings used on some models, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - adapter, optional fuel return fittings used on some models

1шт.

26

222-102

SLEEVE,1/4" Tube

Adapter, Optional fuel return fittings used on some models 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

adapter, optional fuel return fittings used on some models

1шт.

28

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

STREET ELBOW - 90 degree, 1/4" NPT, at fuel tank, if used, optional return on some models

1шт.
