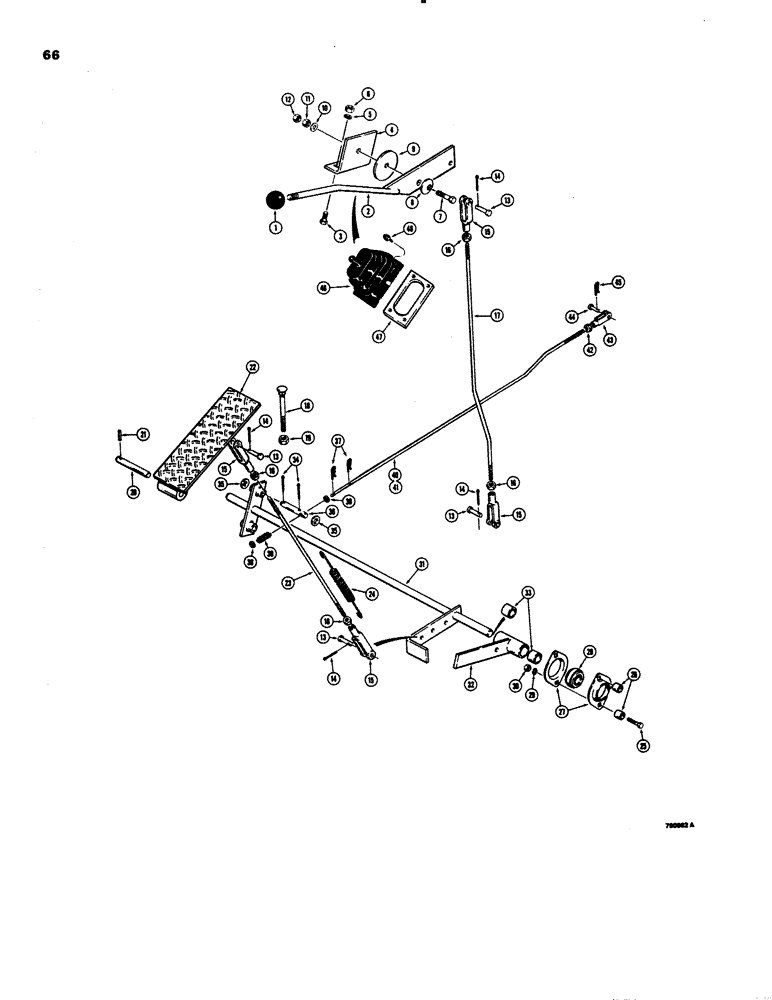

Запчасти Case 1150C (066) - THROTTLE CONTROL LINKAGE (03) - FUEL SYSTEM

1

D49996

KNOB

- lever

1шт.

2

R26931

LEVER

- hand throttle

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

R26944

SUPPORT

BRACKET - mounting, hand throttle

1шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

R14771

WASHER

BELLEVILLE SPRING - lever mounting

1шт.

9

R15071

DISC

- friction

1шт.

10

95-8

WASHER,1/2"

flat 1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

1шт.

13

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

14

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

4шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable

4шт.

16

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

17

R26945

ROD

- connecting, hand throttle to connecting lever

1шт.

18

111-503

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" - 13 NC x 4"

1шт.

19

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

20

R17364

SHAFT

- pedal, foot throttle

1шт.

21

135-737

GROOVED PIN,5/32" x 1", Type E

ROLL PIN - 5/32" x 1"

1шт.

22

R26937

PEDAL

- foot throttle

1шт.

23

R26943

ROD

- connecting, foot throttle to cross shaft

1шт.

24

R36912

SPRING

- throttle return, pedal

1шт.

25

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

26

D34162

SPACER

- ball bearing

4шт.

27

F13526

FLANGED BEARING

FLANGE - ball bearing

4шт.

28

R46666

BALL BEARING,0.627" ID x 1.575" OD x 1.125"

- cross shaft

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

25-104

NUT,1/4"-20, G5

4шт.

31

R26939

CROSS SHAFT

SHAFT - cross, throttle connecting

1шт.

32

R26934

LEVER

- connecting, hand throttle, Includes: Ref. 33

1шт.

33

R31144

BUSHING

- lever

2шт.

34

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

35

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

36

D47686

SHAFT

- override

1шт.

37

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

HAIR PIN - connecting rod, at cross shaft

2шт.

38

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

39

F62245

SPRING

- override

1шт.

40

R26946

ROD

- accelerator, loader models

1шт.

41

R26947

ROD

- accelerator, dozer and drawbar models

1шт.

42

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

43

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable

1шт.

44

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated

1шт.

45

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

HAIR PIN - connecting rod, at engine

1шт.

46

R37792

BOOT

COVER - rubber, cab models, if used

1шт.

47

R37793

PLATE - retaining, if used

1шт.

48

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 6 NC x 1/2" plated, if used

4шт.
