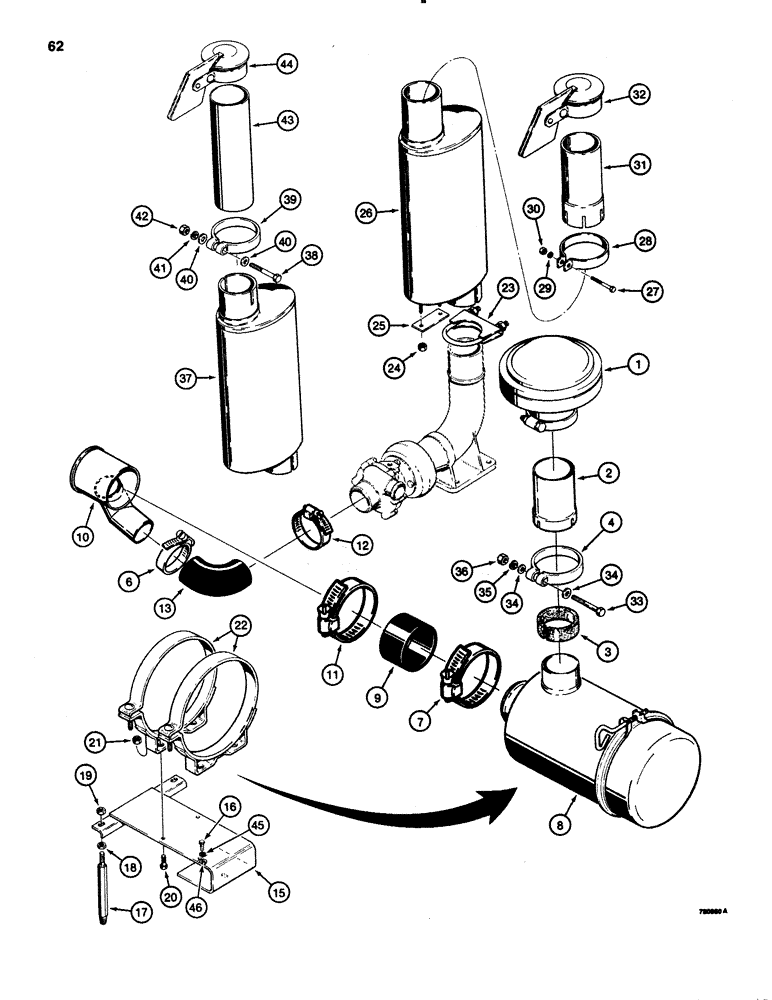

Запчасти Case 1150C (062) - AIR CLEANER AND MUFFLER MOUNTING, DOZER MODELS WITH TURBOCHARGER (02) - ENGINE

1

L45486

AIR CLEANER

CAP - air cleaner, includes hardware

1шт.

2

R40837

MUFFLER

PIPE - air cleaner, may be 7-1/2" (190 mm) or 9-1/2" (241 mm) long

1шт.

3

R43072

NOISE PROTECTION

PAD - seal, air cleaner pipe

1шт.

4

R35673

CLAMP

- air cleaner pipe

1шт.

6

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adjustable, tube to turbocharger

1шт.

7

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adjustable, at air cleaner

1шт.

8

R36360

CLEANER

AIR CLEANER - parts list Figure 056

1шт.

9

R39057

HOSE,5.00" ID x 3.00", SAE 20R1

at Air Cleaner 5.00" ID x 3.00", SAE 20R1

1шт.

10

R46686

TUBE,6.8" L

CHAMBER - air cleaner

1шт.

11

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adjustable, hose

1шт.

12

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adjustable, air chamber

1шт.

13

D36262

LARGE HOSE

ELBOW - hose

1шт.

15

R33871

- air cleaner mounting

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

A143235

JACK SCREW,1/2" - 13 x 0.12"

- special, air cleaner bracket

2шт.

18

25-148

JAM NUT,Jam, 1/2"-13, G5

JAM NUT - hex, 1/2"-13 NC

2шт.

19

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

21

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

22

A16574

BAND

CLAMP - air cleaner, includes hardware

2шт.

23

A17851

CLAMP

- muffler, includes hardware

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ ref. 26 muffler only 3/8"-16, G5

2шт.

25

R33869

PLATE ASSY.

PLATE - used with ref. 26 muffler only

1шт.

26

A66780

MUFFLER

- exhaust, with studs for mounting

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

A162895

CLAMP

- pipe, used with ref. 26 muffler only

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

R35239

TUBE

EXHAUST PIPE - used with ref. 26 muffler only

1шт.

32

S93398

CAP

- rain, used with ref. 26 muffler only

1шт.

33

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

34

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

37

R43075

MUFFLER

- exhaust, without studs for mounting

1шт.

38

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

39

R45478

CLAMP

- stack, used with ref. 37 muffler only

1шт.

40

195-129

WASHER,3/8"

- flat, , plated 3/8"

2шт.

41

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

42

129-770

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, plated

1шт.

43

R43368

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - used with ref. 37 muffler only

1шт.

44

A19795

CAP

- rain, used with ref. 37 muffler only

1шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

195-25

WASHER,3/8"

- flat, 3/8"

2шт.
