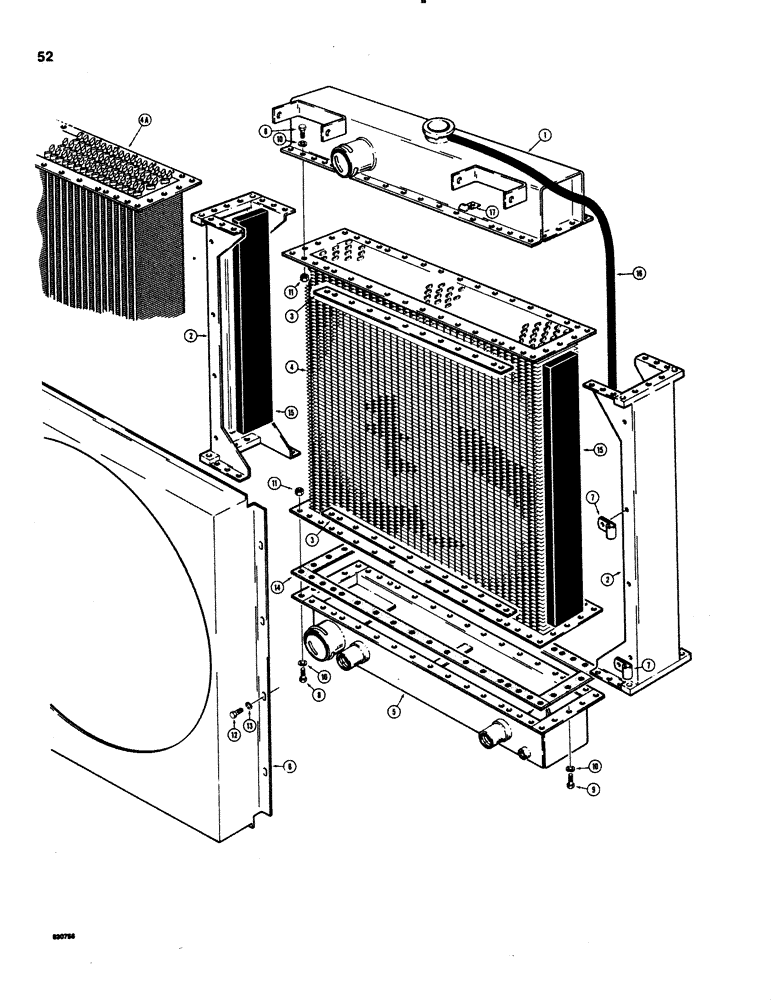

Запчасти Case 1150C (052) - GENERAL THERMODYNAMICS RADIATORS, WITH COOLER TANK ON THE BOTTOM (02) - ENGINE

R47148

RADIATOR

ASSEMBLY - standard, General Thermodynamics No. 286, may be replaced with R49598 heavy duty radiator kit, see Figure 143A (radiator parts list Figure 054), Includes: Ref. 1 - 15

1шт.

R47149

RADIATOR

ASSEMBLY - antisandblast, General Thermodynamics No. 286-A, may be replaced with R49598 heavy duty radiator kit, see Figure 143A (radiator parts list Figure 054), Includes: Ref. 1 - 15

1шт.

1

N7892

TANK

- top

1шт.

2

N7890

LARGE PLATE

SIDE ASSEMBLY - radiator

2шт.

3

N8739

WASHER

PLATE - reinforcement, core

4шт.

4

N7888

BODY

CORE - R47148 standard radiator assembly

1шт.

4a

N7885

CORE

- R47149 antisandblast radiator assembly

1шт.

5

N7891

TANK

- bottom

1шт.

6

N7889

SHROUD

- radiator

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP - overflow tube

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

72шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

10

92-5

LOCK WASHER,5/16"

84шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

72шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

14

N6649

STRIP-GASKET

- cork, 36" (914 mm) long, Serial Range: cut-length

1шт.

15

N7887

PADDING

INSULATOR - vibration

2шт.
