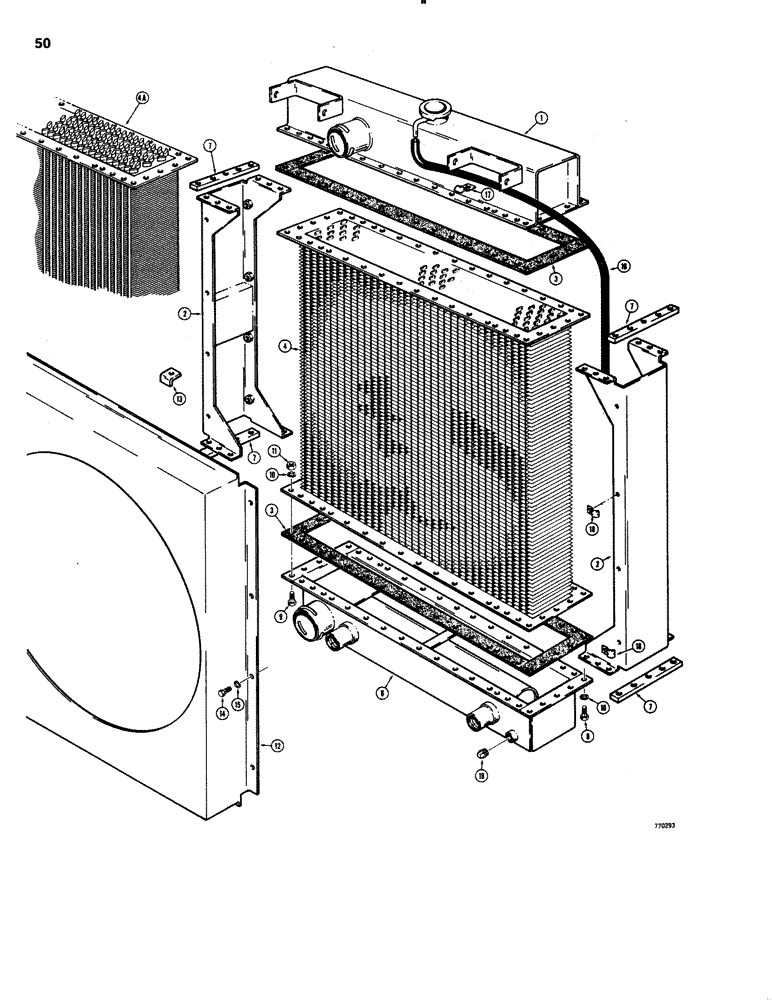

Запчасти Case 1150C (050) - PERFEX RADIATORS (02) - ENGINE

R27202

RADIATOR

ASSEMBLY - standard, Perfex No. R4948-A, may be replaced with R49598 heavy duty radiator kit, see Figure 143A (radiator parts list Figure 054), Includes: Ref. 1 - 19

1шт.

R39362

RADIATOR

ASSEMBLY - antisandblast, Perfex No. R8882-A, may be replaced with R49598 heavy duty radiator kit, see Figure 143A (radiator parts list Figure 054), Includes: Ref. 1 - 19

1шт.

1

N7892

TANK

- top

1шт.

2

N7890

LARGE PLATE

SIDE ASSEMBLY - radiator

2шт.

3

N6649

STRIP-GASKET

- tank

2шт.

4

R30079

CORE

ASSEMBLY - R27202 radiator

1шт.

4a

D78320

CORE, RADIATOR

CORE ASSEMBLY - R39362 radiator

1шт.

5

R30081

WASHER - core, not shown

4шт.

6

N7891

TANK

- bottom

1шт.

7

R30080

BAR

- tank

4шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

20шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

64шт.

10

92-5

LOCK WASHER,5/16"

84шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

64шт.

12

N7889

SHROUD

- radiator

1шт.

13

R10971

CLIP

- shroud

4шт.

14

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

15

92-5

LOCK WASHER,5/16"

8шт.

16

R30082

TUBE

- overflow

1шт.

17

R30083

CLIP - tube

1шт.

18

L32695

CLIP

- tube

2шт.

19

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG - square head, 1/4" NPT

1шт.
