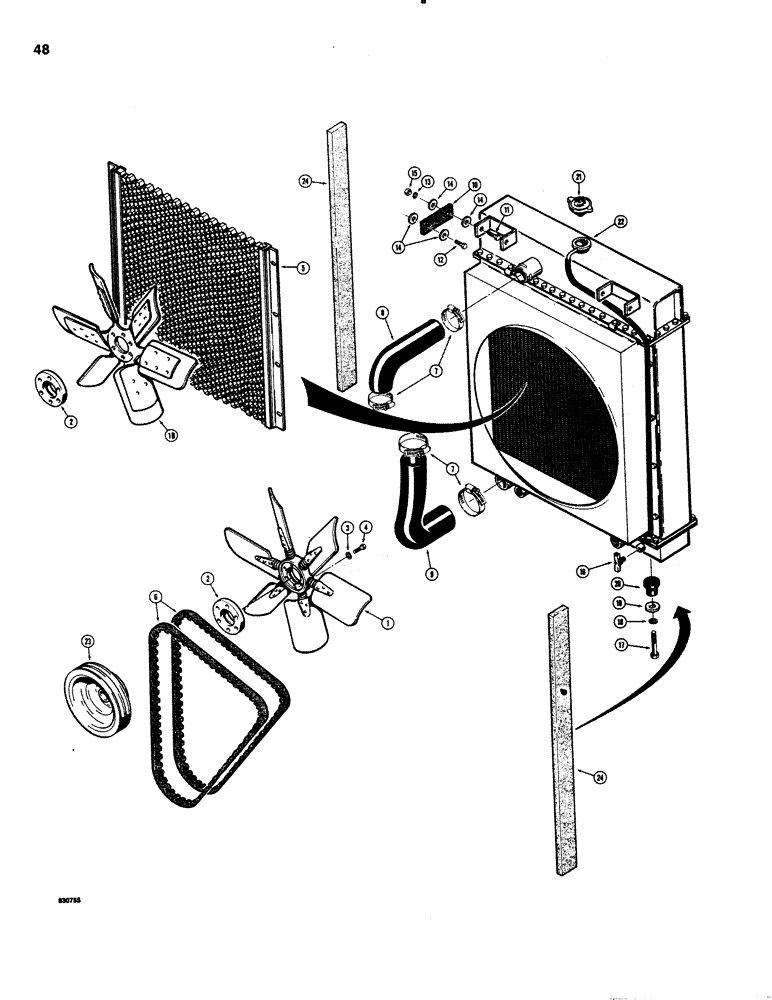

Запчасти Case 1150C (048) - RADIATOR, FANS, AND HOSES (02) - ENGINE

1

R27705

FAN

- reversible

1шт.

1a

R27704

FAN

- pusher, not shown

1шт.

1b

R27703

FAN

- suction

1шт.

2

R41828

SPACER

- suction fan, dozer and drawbar models

1шт.

2

NLS

NO LONGER SERVICED

SPACER - pusher and reversible fans, dozer and drawbar models

1шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2", suction fan, dozer and drawbar models

6шт.

4

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4", suction fan, loader models

6шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pusher and reversible fans, loader models Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Pusher and reversible fans, dozer and drawbar models Hex, 3/8"-16 x 1 3/4", G5

6шт.

5

R27191

FILTER SCREEN

SCREEN - increased sand protection, if used

1шт.

6

R27266

SET OF BELTS,0.69" W x 58.00" L

Fan and alternator, Matched set, Dozer and drawbar models 0.69" W x 58.00" L

1шт.

6

R30790

SET OF BELTS,0.69" W x 59.00" L

Fan and alternator, Matched set, Loader models 0.69" W x 59.00" L

1шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

8

R27205

HOSE

- radiator, upper

1шт.

9

R27206

RADIATOR HOSE,2.63" ID x 13.40", SAE 20R4 Class D1, SAE 20R4 Class SC

HOSE - radiator, lower

1шт.

10

D73500

STRAP

- radiator mounting

2шт.

11

13-260

BOLT - hex head, 3/8" - 16 NC x 1-1/4", 4 used on dozer and drawbar models, 2 used on loader models

2-4шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader models only Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

8шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, 4 used on dozer and drawbar models, 2 used on loader models

2-4шт.

16

217-92

COCK

VALVE - drain

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D25022

WASHER

- special

2шт.

20

R29799

SHOCK ABSORBER

INSULATOR - vibration

2шт.

21

D25826

CAP

- radiator, 7 psi (48 kPa)

1шт.

22

REF

INSTRUCTION

RADIATOR - standard, for correct assembly and components see Figures 050 and 054, if used

1шт.

22

REF

INSTRUCTION

RADIATOR - antisandblast, for correct assembly and components see Figures 050 and 054, if used

1шт.

22

REF

INSTRUCTION

RADIATOR - heavy duty, antisandblast, parts list Figure 054, special adapting parts on Figure 143A, if used

1шт.

23

REF

INSTRUCTION

PULLEY - fan drive, see Figures 012 and 014

1шт.

24

REF

INSTRUCTION

PAD - air, non-recirculating, 2" (51 mm) x 31-1/4" (795 mm), cut from R30870

2шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 23 fluid ounces

1шт.
