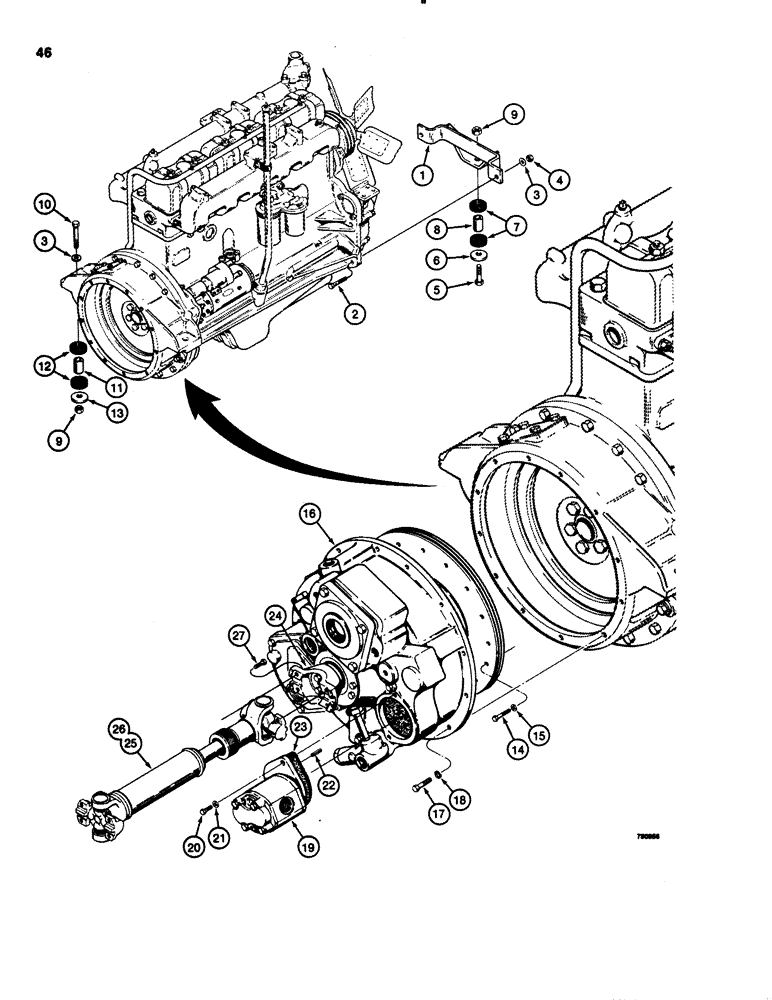

Запчасти Case 1150C (046) - ENGINE AND TORQUE CONVERTER MOUNTING (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
R35450
SUPPORT
- engine mount
1шт.
2
26-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
- hex head, 3/4" - 10 NC x 2-3/4", grade 8
2шт.
3
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
4шт.
4
131-1205
LOCK NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
2шт.
5
13-1252
BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5
1шт.
6
D31854
WASHER
- special
1шт.
7
R32663
SPACER
INSULATOR - vibration
2шт.
8
R27264
SPACER
- engine mounting, front
1шт.
9
131-1205
LOCK NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
3шт.
10
13-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
2шт.
11
R27264
SPACER
- engine mounting, rear
2шт.
12
R32663
SPACER
INSULATOR - vibration
4шт.
13
D31854
WASHER
- special
2шт.
14
121-205
LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8
BOLT - hex head, self-locking, 5/16" - 24 NF x 3/4"
16шт.
15
R14978
WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk
- special
16шт.
16
REF
INSTRUCTION
TORQUE CONVERTER - loader models, parts list Figure 146
1шт.
16
REF
INSTRUCTION
TORQUE CONVERTER - dozer and drawbar models, parts list Figure 146
1шт.
17
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
12шт.
18
92-6
LOCK WASHER,3/8"
12шт.
19
R25586
PUMP
- hydraulic, torque converter, parts list Figure 150
1шт.
R25586R
REMAN-HYD PUMP
1150C
1шт.
R25586C
CORE-HYDRAULIC PUMP
Return Number
1шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
21
D32117
COPPER WASHER
WASHER, COPPER, Special
2шт.
22
138-88
LOCK PIN,3/16" x 1/2", Slotted
PIN, 3/16" x 1/2", Slotted
1шт.
23
D32000
GASKET
- pump
1шт.
24
REF
INSTRUCTION
YOKE - drive, torque converter, see Figure 146
1шт.
25
REF
INSTRUCTION
DRIVE SHAFT - dozer models, for correct assembly and components see Figures 152 and 154
1шт.
26
REF
INSTRUCTION
DRIVE SHAFT - loader models, for correct assembly and components see Figures 152 and 154
1шт.
27
REF
INSTRUCTION
BOLT - drive shaft yoke, see Figure 152 or 154
8шт.
