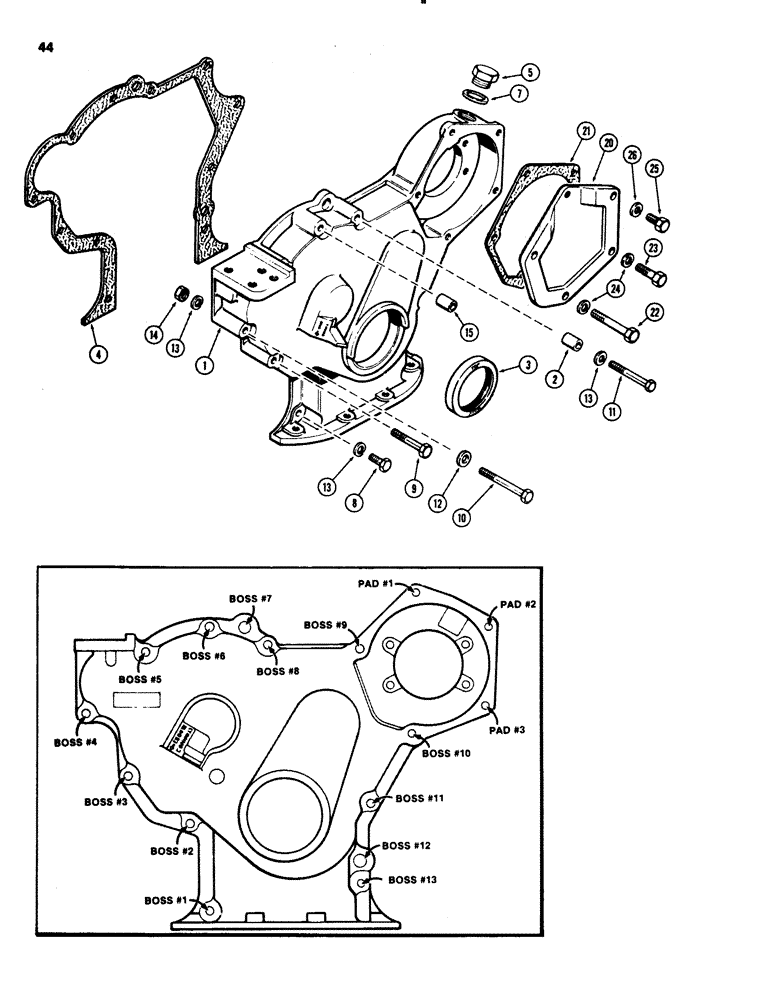

Запчасти Case 1150C (044) - TIMING GEAR COVER, 451BD DIESEL ENGINE (02) - ENGINE

1

A166141

HOUSING

COVER ASSEMBLY - timing gears (Replaces A58609), Includes: Ref. 2

1шт.

2

A58611

PIN

DOWEL - cover locating (Boss #7 and #12)

2шт.

3

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A21140

PLUG

- timing window

1шт.

7

A58613

SEALING WASHER

GASKET - plug, 1 x 1-1/4 x 1/16 inch nylon (25.4 x 31.75 x 1.59 mm)

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss #1, #2, #11 and #13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2 inch NC hex (Boss #3 and #8)

2шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4 inch NC hex (Boss #4 and #5)

2шт.

11

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2 inch NC hex (Boss #6)

1шт.

12

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (9.53 x 20.64 x 1.59 mm) (Boss #4 and #5)

2шт.

13

92-6

LOCK WASHER,3/8"

9шт.

14

25-106

NUT,3/8"-16, G5

- 3/8 inch NC hex (Boss #4 and #5)

2шт.

15

A19774

BUSHING

SPACER - alternator pry joint (Boss #6)

1шт.

20

A61053

COVER

- fuel pump gear

1шт.

21

A58615

GASKET

- cover

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2 inch NC hex (Boss #9 and #10)

2шт.

23

A151921

BOLT

- 3/8 x 1-1/2 inch NC hex (Pad #2 and #3) (head drilled for anti-tamper wire)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 7/8 inch NC hex (Pad #1) (Replaced 13-514)

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.
