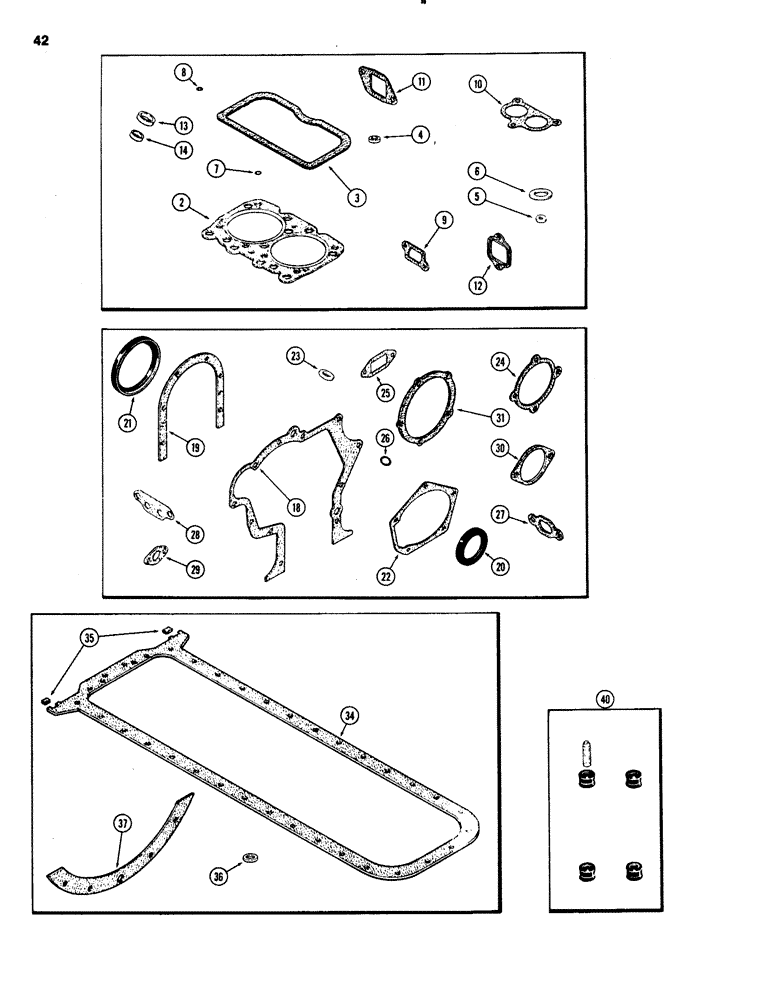

Запчасти Case 1150C (042) - ENGINE GASKET KITS, 451BD DIESEL ENGINE, VALVE GRIND KIT, CYLINDER BLOCK & OIL PAN KIT (02) - ENGINE

A157348

GASKET KIT

- valve grind (Replaces A44085), Includes: Ref. 2 - 14

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A-157348, 1-A44075 AND 1-A152479.

1шт.

2

A157220

CYLINDER HEAD GASKET

- cylinder head (Replaces A62402 and A142482)

3шт.

3

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- cylinder head cover (Replaces A65734)

3шт.

4

A142098

GROMMET

GASKET - cover studs (Replaces A23684)

6шт.

5

A34133

GASKET

- breather tube, upper, 1/4 x 1/2 x 1/16 inch fiber (6.35 x 12.7 x 1.59 mm)

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower, 11/16 x 1-1/4 x 1/4 inch (17.46 x 31.75 x 6.35 mm)

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, 3/16 x 5/16 x 1/16 inch (4.76 x 7.94 x 1.59 mm)

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- exhaust and intake valves (See Ref 40)

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A58895

GASKET

- exhaust manifold

6шт.

13

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body

6шт.

14

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (injector nozzle tip)

6шт.

A44075

GASKET KIT

- cylinder block, Includes: Ref. 18 - 31

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A-157348, 1-A44075 AND 1-A152479.

1шт.

18

A58612

GASKET

- timing gear cover

1шт.

19

A32830

GASKET

- rear oil seal retainer

1шт.

20

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft, front

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2 inch (120.05 x 146.05 x 12.7 mm)

1шт.

22

A58615

GASKET

- pump mounting cover

1шт.

23

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

24

A58646

GASKET

- water, Serial Range: pump-body

1шт.

25

A58649

GASKET

- water pump, Serial Range: body-block

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base, 15/16 x 1-1/8 x 3/32 inch (23.81 x 28.57 x 2.38 mm)

3шт.

27

A58670

GASKET

- oil filter base

1шт.

28

A58756

OIL PAN GASKET SET

- (not used this application)

1шт.

29

A58680

OIL PAN GASKET SET

- (not used this application)

1шт.

30

A58617

GASKET

- (not used this application)

1шт.

31

A76656

GASKET

- (not used this application)

1шт.

152479

GASKET KIT - oil pan (Replaces A43006), Includes: Ref. 34 - 37

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A-157348, 1-A44075 AND 1-A152479.

1шт.

34

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

35

A150690

OIL PAN GASKET SET

- oil pan corners (Replaces A62402)

1шт.

36

A58608

GASKET

- drain plug, 3/4 x 1 x 1/16 inch nylon (19.05 x 25.4 x 1.59 mm)

1шт.

36

A27968

RING

- drain plug, 7/8 x 1-1/4 x 1/16 inch copper (22.23 x 31.75 x 1.59 mm)

1шт.

37

A57966

GASKET

- transmission housing, lower (not used this application)

1шт.

40

M20614

SEAL KIT

SEAL KIT - valves (includes 4 seals and installation tool)

1шт.
