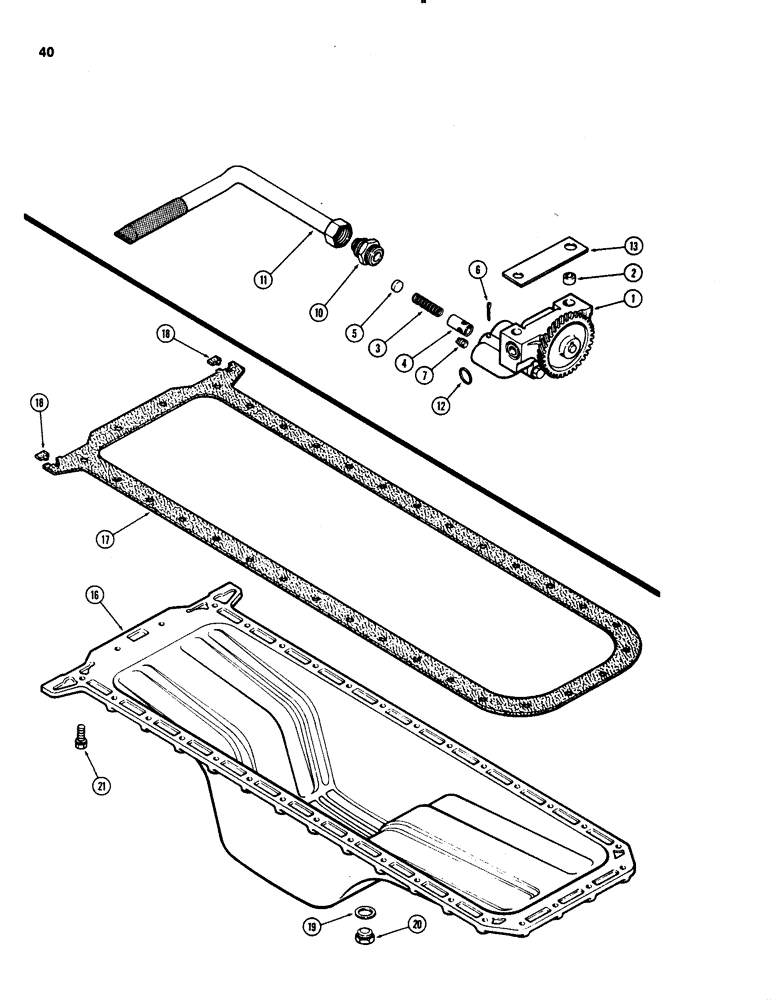

Запчасти Case 1150C (040) - OIL PUMP, 451BD DIESEL ENGINE, OIL PAN (02) - ENGINE

1

A153805

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil (For naturally aspirated engines), Includes: Ref. 2 - 7

1шт.

1

A151665

PUMP

ASSEMBLY - oil (For altitude compensating engines), Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump locating, 5/8 x 3/4 x 1/2 inch (15.88 x 19.05 x 12.7 mm)

1шт.

3

A155980

SPRING

- relief valve, 2 inch free length (50.8 mm) (Replaces A151960)

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16 inch cup type (17.46 mm)

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

PIN, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2 inch PT, socket head

1шт.

10

A142004

CONNECTOR, ELEC

CONNECTOR - oil suction line

1шт.

11

A139713

TUBE

- oil suction (with screen)

1шт.

12

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block, 15/16 x 1-1/8 x 3/32 inch (23.81 x 28.58 x 2.38 mm)

1шт.

13

A58859

SHIM,.005" Thk

Oil pump to brg. cap (0.14 mm) .005" Thk

1шт.

16

A60502

PAN

- oil

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43006 from Figure 042)

1шт.

18

A62402

GASKET

- oil pan corners

2шт.

19

A27968

RING

- drain plug, 7/8 x 1-1/4 x 1/16 inch copper (22.23 x 31.75 x 1.59 mm)

1шт.

20

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

21

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4 inch NC hex, Sems

32шт.
