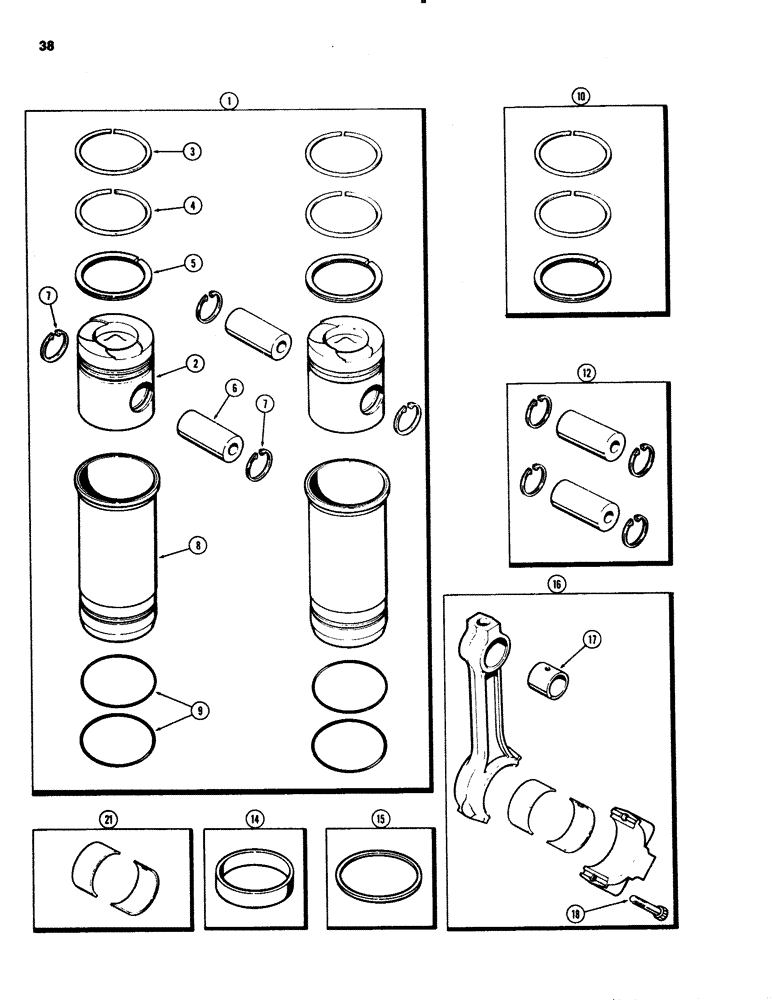

Запчасти Case 1150C (038) - PISTONS, 451BD DIESEL ENGINE, CONNECTING RODS (02) - ENGINE

1

A46022

SET

PISTON KIT - (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A64766

PISTON

- engine

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref 10)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref 10)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref 10)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A142367

SLEEVE

- piston (cylinder liner)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- sleeve, 4-1/2 x 4-3/4 x 1/8 inch (113.3 x 120.65 x 3.18 mm)

4шт.

10

A43028

RING, SET

RING KIT - piston re-ring (Set of 1)

6шт.

12

A43713

PIN

KIT - (Set of 2 pins and 4 retaining rings)

3шт.

14

A150306

SHIM

- sleeve, 0.005 inch (0.127 mm) (Repairs only)

1шт.

14

A150221

SHIM

- sleeve, 0.010 inch (0.254 mm) (Repairs only)

1шт.

15

A150326

BUSHING,124.21mm ID x 127.14mm OD x 30.15mm L

- sleeve (Repairs only)

1шт.

16

A62952

ROD

ASSEMBLY - connecting, Includes: Ref. 17 and 18

6шт.

17

A21069

BUSHING,37.63mm ID x 43mm OD x 34.8mm L

- piston pin

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - bearing cap, 1/2 x 2-3/16 inch NF special

2шт.

21

A43173

BEARING LINER

INSERT KIT - connecting rod bearing, standard (Set of 2)

6шт.

21

A43174

BEARING LINER

INSERT KIT - connecting rod bearing, 0.002 inch undersize (0.06 mm) (Set of 2)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing, 0.010 inch undersize (0.26 mm) (Set of 2)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - connecting rod bearing, 0.020 inch undersize (0.52 mm) (Set of 2)

6шт.

21

A43177

BEARING LINER

INSERT KIT - connecting rod bearing, 0.030 inch undersize (0.78 mm) (Set of 2)

6шт.

THERE IS A INDUCTION HARDENED SLEEVE KIT AVAILABLE, ORDER# A151408.

1шт.

TURBO CHARGED ENGINE USES THE SAME SLEEVES AND PISTONS AS NON TURBO. THIS WAS AN ALTITUDE COMPENSATING TURBO.

1шт.
