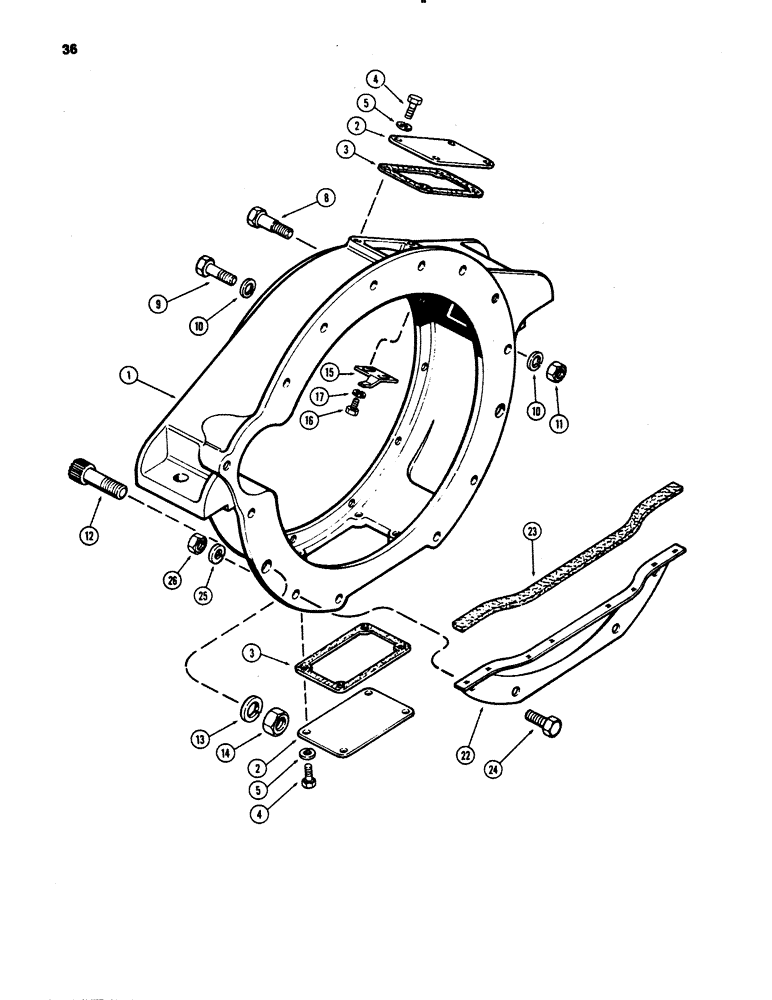

Запчасти Case 1150C (036) - FLYWHEEL HOUSING, 451BD DIESEL ENGINE (02) - ENGINE

1

A153190

HOUSING

ASSEMBLY - flywheel, Includes: Ref. 2 - 5

1шт.

2

A22584

COVER

PLATE - hand hole cover

2шт.

3

A22585

GASKET

- hand hole plate cover

2шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1/4 inch PT, square head (Not Shown)

1шт.

8

A16040

BOLT - dowel, 1/2 x 1-15/16 inch NC hex (Order A149764)

1шт.

8

A61041

STEP BOLT

BOLT - dowel, 1/2 x 2-7/16 inch NC hex (Order A149765)

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4 inch NC hex

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2 inch NC hex

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- 1/2 inch NC hex

4шт.

12

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 3/4 x 3 inch NC, 12 point head

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

129-137

NUT,3/4"-10, G5

2шт.

15

A22586

INDICATOR

POINTER - flywheel timing

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

A64462

GUARD

SHIELD - dust, flywheel housing

1шт.

23

A57144

GASKET

- dust shield

1шт.

24

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- 1/2 inch NC hex

4шт.
