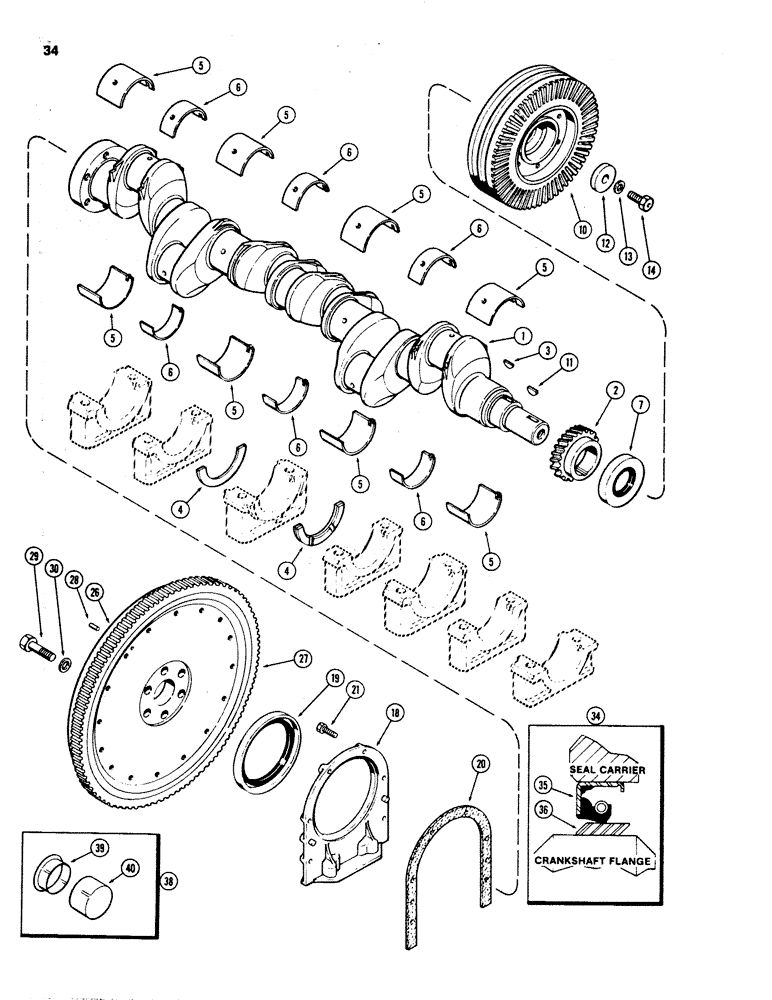

Запчасти Case 1150C (034) - CRANKSHAFT AND FLYWHEEL, 451BD DIESEL ENGINE, WEAR SEAL KIT (02) - ENGINE

1

A154305

CRANKSHAFT

ASSEMBLY - (Replaces A136106), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, standard, 0.185 inch (4.70 mm)

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, oversize, 0.191 inch (4.86 mm)

2шт.

5

A43163

BEARING LINER

INSERT KIT - main bearing, wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

INSERT KIT - main bearing, wide, 0.002 inch undersize (0.06 mm) (Set of 2)

4шт.

5

A43165

BEARING LINER

INSERT KIT - main bearing, wide, 0.010 inch undersize (0.26 mm) (Set of 2)

4шт.

5

A43166

BEARING LINER

INSERT KIT - main bearing, wide, 0.020 inch undersize (0.52 mm) (Set of 2)

4шт.

5

A43167

BEARING LINER

INSERT KIT - main bearing, wide, 0.030 inch undersize (0.78 mm) (Set of 2)

4шт.

6

A43158

BEARING LINER

INSERT KIT - main bearing, narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

INSERT KIT - main bearing, narrow, 0.002 inch undersize (0.06 mm) (Set of 2)

3шт.

6

A43160

BEARING LINER

INSERT KIT - main bearing, narrow, 0.010 inch undersize (0.26 mm) (Set of 2)

3шт.

6

A43161

BEARING SET

INSERT KIT - main bearing, narrow, 0.020 inch undersize (0.52 mm) (Set of 2)

3шт.

6

A43162

BEARING LINER

INSERT KIT - main bearing, narrow, 0.030 inch undersize (0.78 mm) (Set of 2)

3шт.

7

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, front

1шт.

10

A65125

PULLEY

- fan drive

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

12

A156428

WASHER

- pulley bolt (Replaces A27903)

1шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW - pulley retaining, 5/8 x 1-1/2 inch NF hex (Replaces A28028)

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2 inch (See Ref 34) (110.65 x 146.05 x 12.77 mm)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - 3/8 x 1-1/4 inch NC hex Sems (Replaces 13-620 and 92-6)

6шт.

26

A60508

FLYWHEEL

ASSEMBLY, Includes: Ref. 27 and 28

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

A27840

PIN

- flywheel, 5/16 x 3/4 inch (7.94 x 19.05 mm)

1шт.

29

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- 5/8 x 1-1/2 inch NF hex (Replaced 28-1024)

6шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8 inch (15.88 x 25.4 x 3.18 mm)

6шт.

34

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2 inch (113.83 x 146.05 x 12.7 mm)

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16 inch (110.65 x 113.83 x 14.29 mm)

1шт.

38

A154684

SLEEVE

WEAR SLEEVE KIT - crankshaft pulley, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
