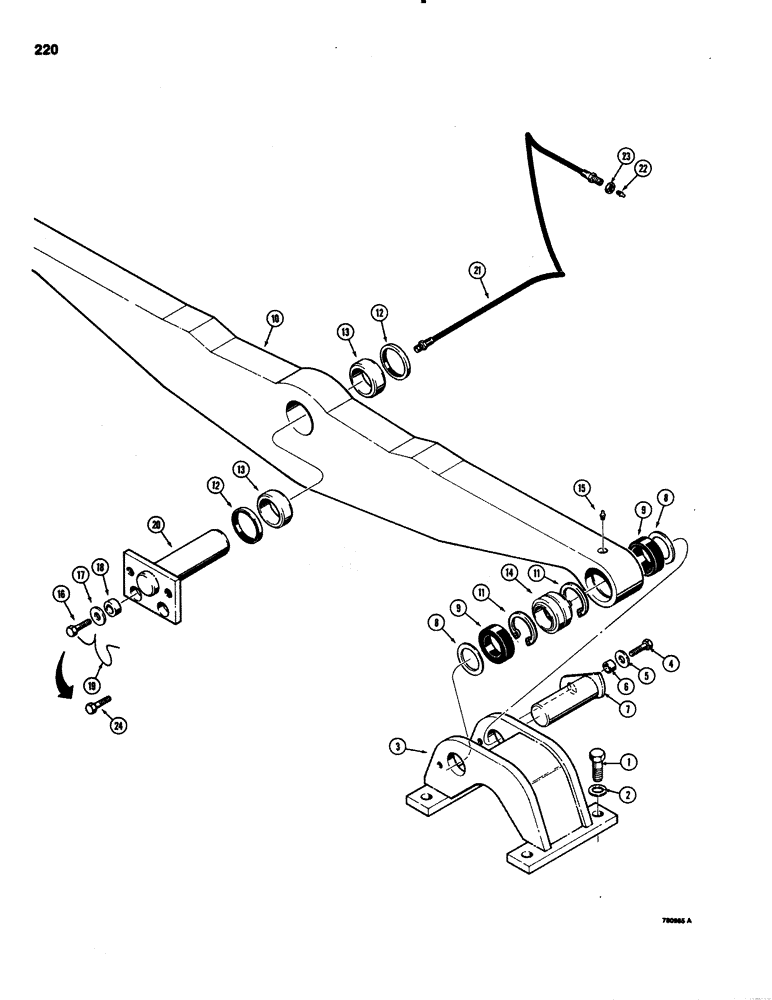

Запчасти Case 1150C (220) - TRACK SUSPENSION - EQUALIZER BEAM, DOZER AND DRAWBAR MODELS (11) - TRACKS/STEERING

1

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

2

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

3

R36522

BRACKET

- equalizer beam

2шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Use with Loctite Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

D64050

WASHER

- hardened

2шт.

6

D40896

ROLLER

SPACER - pin

2шт.

7

R36526

PIN

- equalizer beam mounting

2шт.

8

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- hardened

4шт.

9

R36521

SEAL

- oil, equalizer beam

4шт.

R47800

BEAM

EQUALIZER BEAM ASSEMBLY - drawbar and 62" (1575 mm) gauge standard dozer models, Includes: Ref. 10 - 14

1шт.

R38240

BEAM ASSY.

EQUALIZER BEAM ASSEMBLY - 74" (1880 mm) gauge LGP dozer models, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

EQUALIZER BEAM - track suspension

1шт.

11

49477

RING, SNAP

3.156", Int, #315, bushing

4шт.

12

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

- bushing

2шт.

13

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- equalizer beam, center

2шт.

14

S109373

BUSHING

- equalizer beam, outer

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

16

S78662

BOLT

- tie, if used, may be replaced with item 24 bolt

2шт.

17

D31328

WASHER

- hardened

2шт.

18

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

2шт.

19

391-620

LOCK,#16 Ga x 12"

WIRE - tie, bolt, if used

1шт.

20

R40497

PIN,63.5mm OD x 213mm L

- equalizer beam to main frame

1шт.

21

L54693

HOSE

- lube, 27" (1086 mm) long, Includes: Ref. 22

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

23

F53473

LOCK NUT,1/8-27 NPSM

- hex, lube hose

1шт.

24

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Use with Loctite, if used Hex, 3/4"-10 x 2", G5

2шт.
