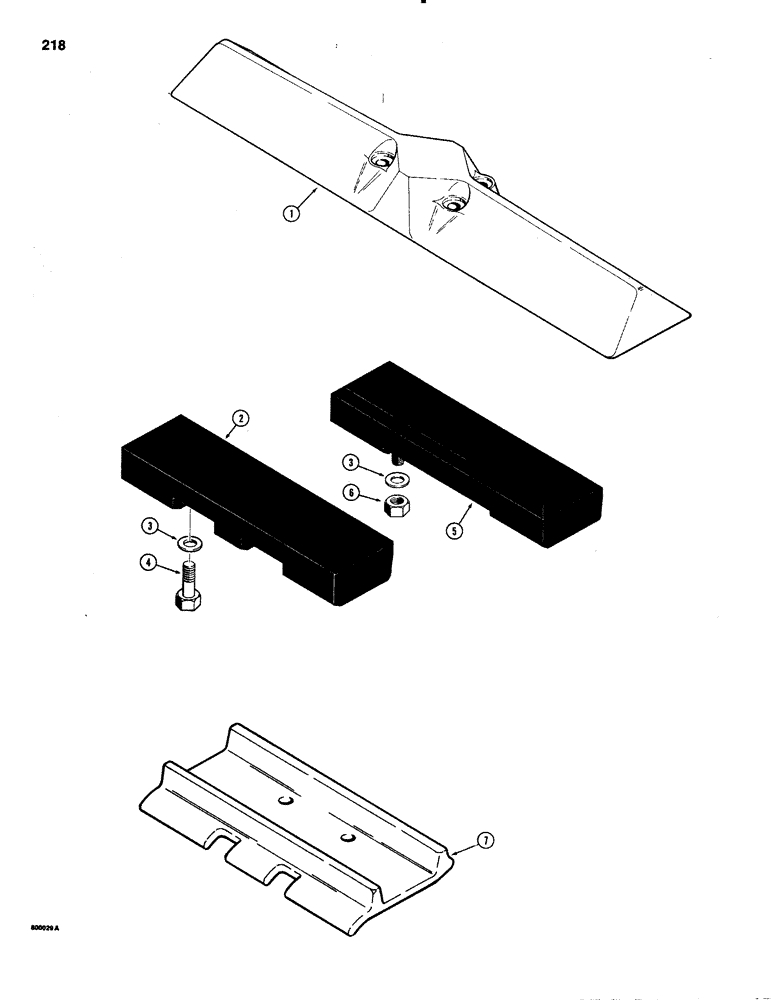

Запчасти Case 1150C (218) - TRACK SHOES, GROUSER - SELF CLEANING (11) - TRACKS/STEERING

1

R42736

TRACK SHOE

34" (864 mm), 74" gauge LGP dozer models only

80шт.

2

R38862

SHOE

rubber, without studs for mounting, if used

80шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

hardened, 5/8", used with ref. 2 and ref. 5, rubber track shoes

160шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used with ref. 2 only, rubber track shoe Hex, 5/8"-11 x 1 1/2", G5, Full Thd

160шт.

5

R43447

SHOE

rubber, with studs for mounting, if used

80шт.

6

25-1010

NUT,5/8"-11, G5

Used with ref. 5 only, rubber track shoe 5/8"-11, G5

160шт.

7

R40973

TRACK SHOE

16" (406 mm), loader models, 2 bar grouser closed

80шт.
