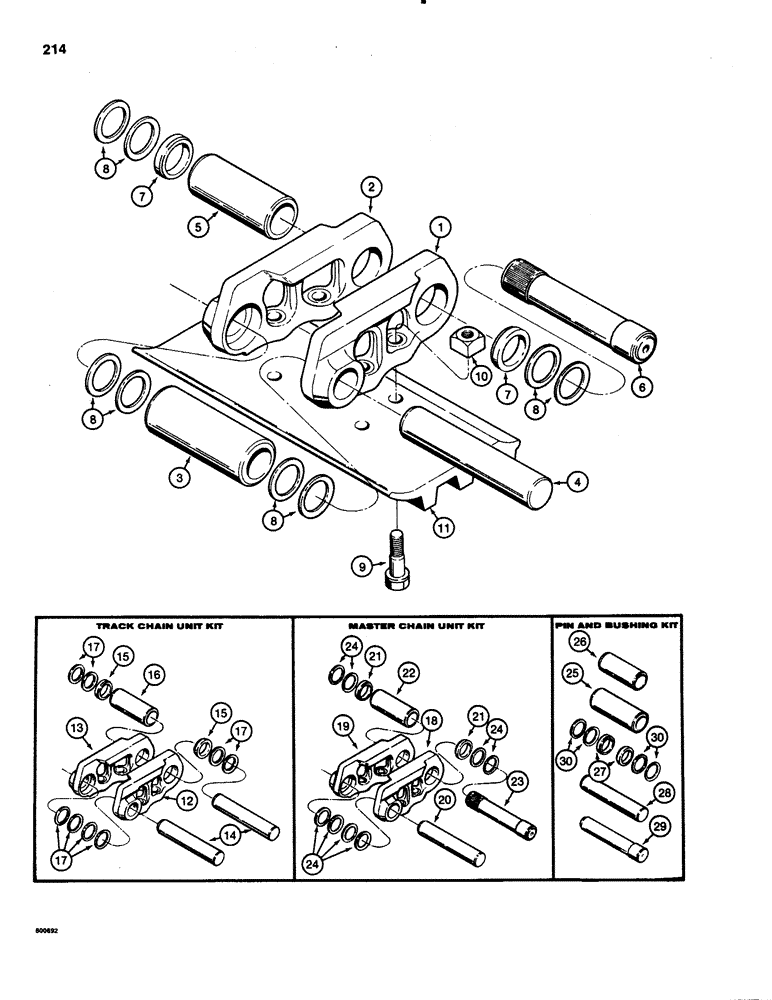

Запчасти Case 1150C (214) - TRACK CHAIN (11) - TRACKS/STEERING

R27668

CHAIN (CE)

40 unit, Includes: Ref. 1 - 8

2шт.

1

R25687

LINK

track, right-hand

40шт.

2

R25686

LINK

track, left-hand

40шт.

3

R25703

BUSHING

track, standard, long

39шт.

4

R25697

PIN

track, standard

39шт.

4

R25698

PIN

track, 0.003" (0.076 mm) oversize, service option

39шт.

5

R25702

BUSHING

track, master

1шт.

6

R25699

PIN

track, master

1шт.

REF. 6 - THIS PIN IS NOT SPLINED ARTWORK ERROR.

1шт.

6

R25700

PIN

track, master, 0.003" oversize (0.076 mm), service option

1шт.

7

R25704

BUSHING

SPACER - master

2шт.

8

R25705

WASHER

BELLEVILLE SPRING - pin

160шт.

9

R27166

BOLT

special, used with all track shoes except R42736

320шт.

9

R42738

BOLT

special, R42736 track shoe only

320шт.

10

R25688

SQUARE NUT

special

320шт.

11

REF

INSTRUCTION

TRACK SHOE - see Figures 216 and 218 for options

80шт.

R27708

CHAIN (AG)

KIT - track chain unit, Includes: Ref. 12 - 17

78шт.

12

R25687

LINK

right-hand, track chain unit kit

1шт.

13

R25686

LINK

left-hand, track chain unit kit

1шт.

14

R25697

PIN

standard, track chain unit kit

2шт.

15

R25704

BUSHING

SPACER - track chain unit kit

2шт.

16

R25702

BUSHING

master, short, track chain unit kit

1шт.

17

R25705

WASHER

BELLEVILLE SPRING - pin, track chain unit kit

8шт.

R27710

CHAIN (AG)

KIT - master chain unit, Includes: Ref. 18 - 24

1шт.

18

R25687

LINK

right-hand, master track unit kit

1шт.

19

R25686

LINK

left-hand, master track unit kit

1шт.

20

R25697

PIN

standard, master track unit kit

1шт.

21

R25704

BUSHING

SPACER - master track unit kit

2шт.

22

R25702

BUSHING

master, short, master track unit kit

1шт.

23

R25699

PIN

track, master, master track unit kit

1шт.

24

R25705

WASHER

BELLEVILLE, master track unit kit SPRING - pin

8шт.

R27709

PIN

KIT - bushing, Includes: Ref. 25 - 30

1шт.

25

R25703

BUSHING

standard, long, pin & bushing kit

78шт.

26

R25702

BUSHING

master, short, pin & bushing kit

2шт.

27

R25704

BUSHING

SPACER - pin & bushing kit

4шт.

28

R25698

PIN

track, 0.003" (0.076 mm) oversize, pin & bushing kit

78шт.

29

R25700

PIN

track, master, 0.003" (0.076 mm) oversize, pin & bushing kit

2шт.

30

R25705

WASHER

BELLEVILLE SPRING - pin & bushing kit

320шт.
