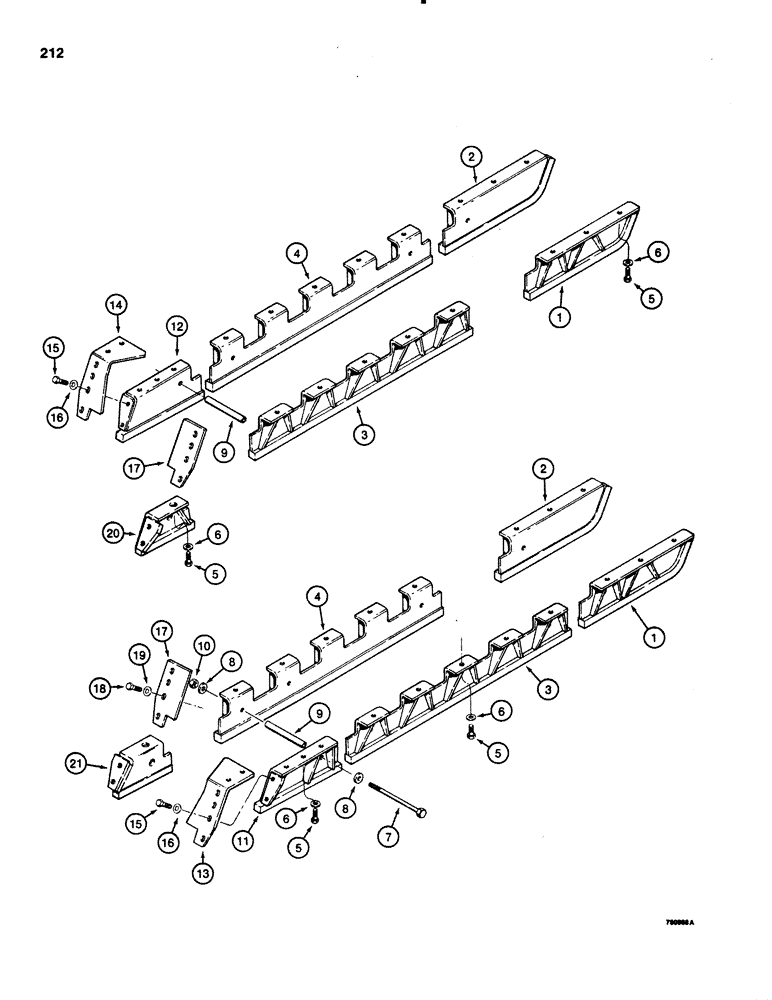

Запчасти Case 1150C (212) - TRACK GUARDS (11) - TRACKS/STEERING

1

R27543

GUARD

TRACK GUARD - front, right-hand

2шт.

2

R27542

GUARD

TRACK GUARD - front, left-hand

2шт.

3

R27547

GUARD

TRACK GUARD - center, right-hand

2шт.

4

R27546

TRACK GUARD - center, left-hand

2шт.

5

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Use with Loctite Hex, 3/4"-10 x 1 1/2", G5

40шт.

6

R43769

WASHER

- special

40шт.

7

13-12176

BOLT,Hex, 3/4" - 10 x 11", Gr 5

- hex head, 3/4" - 10 NC x 11"

8шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

16шт.

9

R27555

SPACER

- track guards

8шт.

10

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

8шт.

11

R27552

GUARD

TRACK GUARD - rear, right-hand track, outer

1шт.

12

R27551

GUARD

TRACK GUARD - rear, left-hand track, outer

1шт.

13

R27549

COVER

- track guard, right-hand track, outer, 62" (1575 mm) gauge standard dozer models only

1шт.

13

R31859

COVER

- track guard, right-hand track, outer, 74" (1880 mm) gauge LGP dozer models only

1шт.

14

R27548

GUARD

COVER - track guard, left-hand track, outer, 62" (1575 mm) gauge standard dozer models only

1шт.

14

R31858

COVER

- track guard, left-hand track, outer, 74" (1880 mm) gauge LGP dozer models only

1шт.

15

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite Hex, 5/8"-11 x 1 1/2", G5, Full Thd

12шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

12шт.

17

R27550

COVER

- track guard, inner

2шт.

18

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Use with Loctite Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

19

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

8шт.

20

R33943

GUARD

TRACK GUARD - left-hand, rear, inner

1шт.

21

R33944

GUARD

TRACK GUARD - right-hand, rear, inner

1шт.
