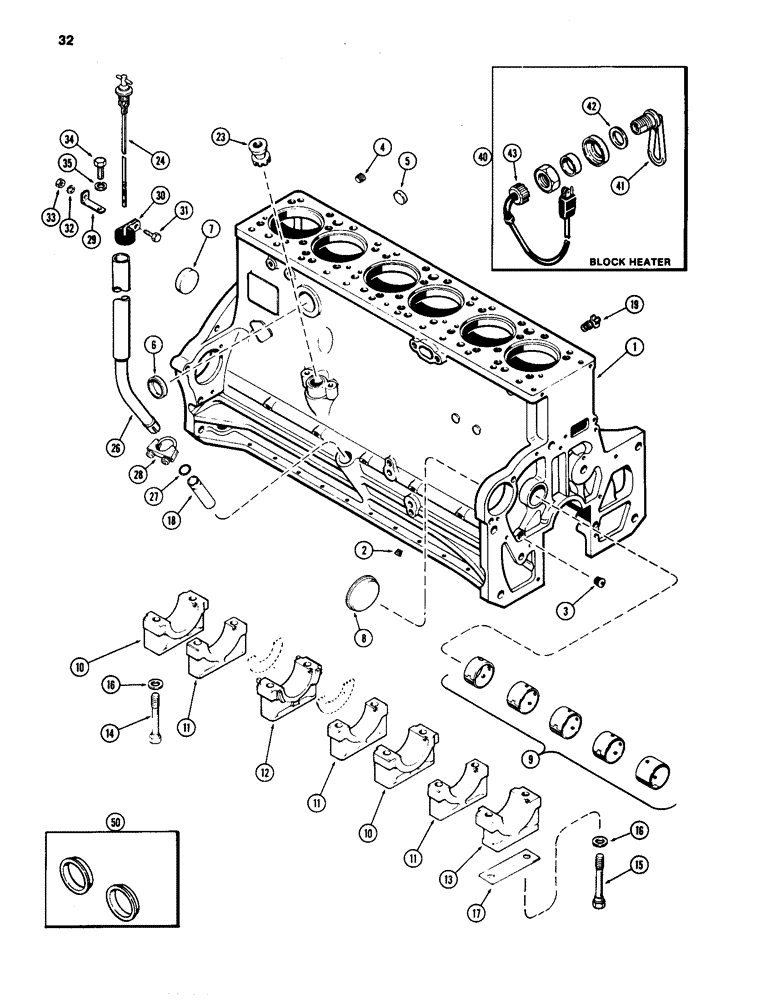

Запчасти Case 1150C (032) - CYLINDER BLOCK, 451BD DIESEL ENGINE, BLOCK HEATER (02) - ENGINE

A44096

CRANKCASE

BLOCK ASSEMBLY - short (includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft and timing gears), Includes: Ref. 2 - 19

1шт.

1

A44097

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting No. A66523), Includes: Ref. 2 - 19

1шт.

2

221-1849

PLUG

- oil gallery, 1/8 inch PT, socket head

6шт.

3

221-1843

PLUG

- oil gallery, 3/8 inch PT, socket head

4шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- 3/8 inch PT, socket head

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8 inch cup type (34.93 mm)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2 inch cup type (50.8 mm)

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8 inch cup type (60.33 mm)

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive hole, 3-1/4 inch cup type (82.55 mm)

1шт.

9

REF

INSTRUCTION

BUSHING - camshaft (See Figure 030)

5шт.

10

A154391

CAP

- main bearing, wide (Replaces A58783)

2шт.

11

A154390

CAP

- main bearing, narrow (Replaces A58784)

3шт.

12

A154392

CAP

- main bearing, thrust, wide (Replaces A58785)

1шт.

13

A154389

CAP

- main bearing, front, wide (Replaces A58782)

1шт.

14

A66948

STEP BOLT

BOLT - bearing caps, 5/8 x 5 inch NC hex

12шт.

15

A66949

STEP BOLT

BOLT - bearing cap, front, 5/8 x 7 inch NC hex

2шт.

16

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8 inch (15.88 x 25.4 x 3.18 mm)

14шт.

17

A58859

SHIM,.005" Thk

Oil pump (0.14 mm) .005" Thk

1шт.

18

A34540

TUBE

SOCKET - oil filler and dipstick

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

23

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

24

A155634

DIPSTICK

ASSEMBLY - oil level (Replaces A135650)

1шт.

26

A155590

TUBE

- extension, oil filler and dipstick (Replaces A65119)

1шт.

27

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension, 1-1/8 x 1-3/8 x 1/8 inch (28.58 x 34.93 x 3.18 mm)

1шт.

28

L47766

CLAMP

- extension

1шт.

29

A65120

BRACKET

- extension, Serial Range: tube-manifold

1шт.

30

D30474

CLAMP

- extension tube to bracket (Replaces D39138)

1шт.

31

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp to bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to manifold Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

40

A155436

RESISTOR

HEATER ASSEMBLY - block water, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A155436)

1шт.

42

A45114

GASKET

- element

1шт.

43

A44813

CABLE EXTENSION

CORD - heater, 12 inch long (304.8 mm)

1шт.

A44006

SLEEVE

KIT - heater adapter, Includes: Ref. 50

1шт.

50

NSS

NOT SOLD SEPARAT

SLEEVE - block heater hole, 2-1/16 inch (52.39 mm)

1шт.

50

NSS

NOT SOLD SEPARAT

SLEEVE - block heater hole, 2-1/8 inch (53.97 mm)

1шт.
