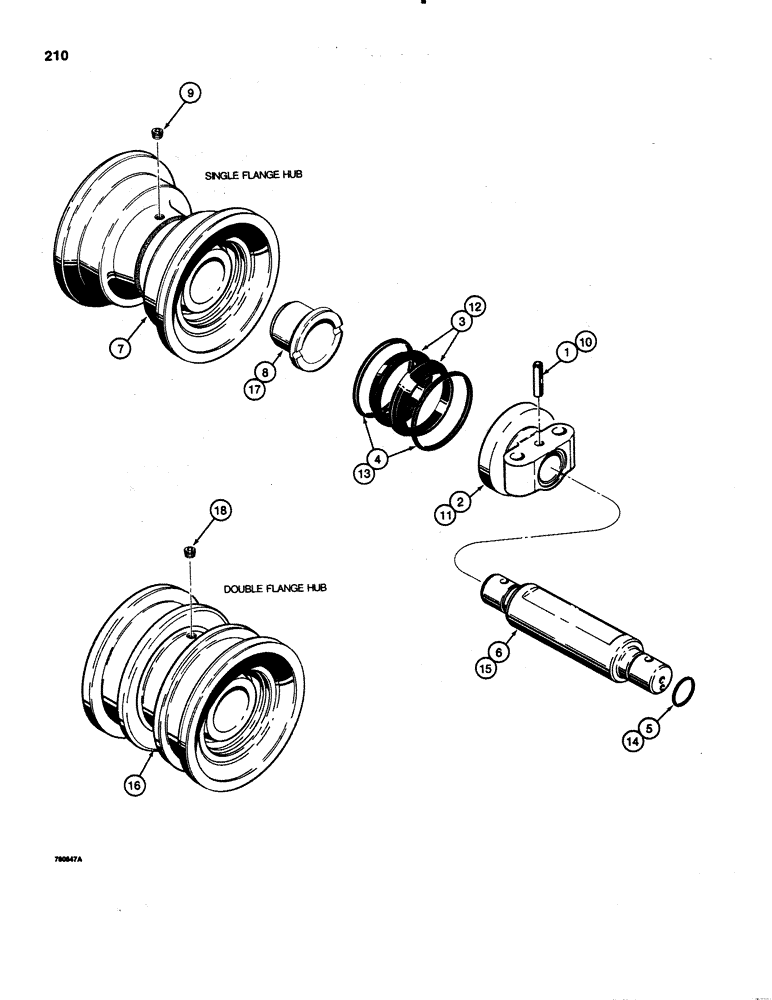

Запчасти Case 1150C (210) - INTERTRAC TRACK ROLLERS, R33571 TRACK ROLLER - SINGLE FLANGE, INTERTRAC ROLLER (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
R33571
ROLLER
TRACK ASSEMBLY - single flange, Includes: Ref. 1 - 9
8шт.
1
R33581
PIN
cap retaining
2шт.
2
R33578
CYLINDER END CAP
end collar
2шт.
S209139
SEAL
FACE - track roller, Includes: Ref. 3 and 4
2шт.
3
NSS
NOT SOLD SEPARAT
SEAL - rubber
2шт.
4
NSS
NOT SOLD SEPARAT
RING - seal
2шт.
5
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
shaft
2шт.
6
R33579
SHAFT HOUSING
track roller
1шт.
R33575
ROLLER
HUB ASSEMBLY - track roller, Includes: Ref. 7 - 9
1шт.
7
NSS
NOT SOLD SEPARAT
HUB - track roller
1шт.
8
R33577
BUSHING
hub
2шт.
9
R33557
PLUG
track roller
1шт.
R33572
ROLLER
TRACK ASSEMBLY - double flange, Includes: Ref. 10 - 18
4шт.
10
R33581
PIN
cap retaining, R33572 track roller - double flange
2шт.
11
R33578
CYLINDER END CAP
collar, R33572 track roller - double flange
2шт.
S209139
SEAL
FACE - track roller, R33572 track roller - double flange, Includes: Ref. 12 and 13
2шт.
12
NSS
NOT SOLD SEPARAT
SEAL - rubber, R33572 track roller - double flange
2шт.
13
NSS
NOT SOLD SEPARAT
RING - seal, R33572 track roller - double flange
2шт.
14
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
shaft, R33572 track roller - double flange
2шт.
15
R33579
SHAFT HOUSING
track roller, R33572 track roller - double flange
1шт.
R33576
ROLLER
HUB ASSEMBLY - , R33572 track - double flange, Includes: Ref. 16 - 18
1шт.
16
NSS
NOT SOLD SEPARAT
HUB - R33572 track roller - double flange
1шт.
17
R33577
BUSHING
hub, R33572 track roller - double flange
2шт.
18
R33557
PLUG
R33572 track roller - double flange
1шт.
Выбрано товаров: 24
