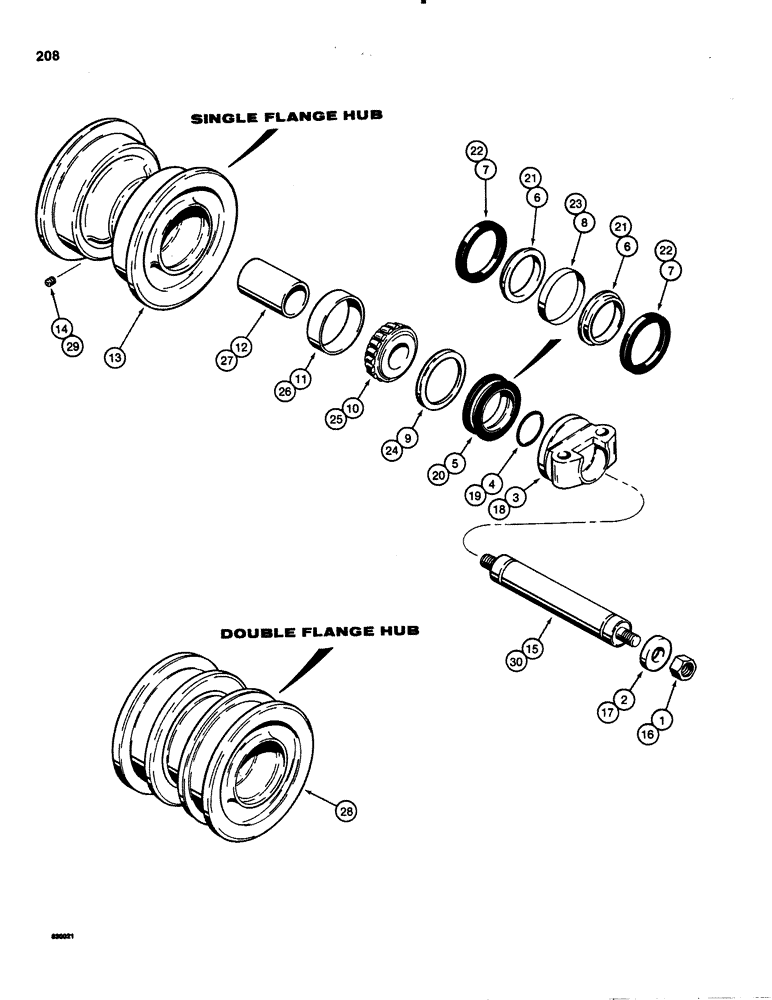

Запчасти Case 1150C (208) - CASE-MADE TRACK ROLLERS, R25660 TRACK ROLLER - SINGLE FLANGE (11) - TRACKS/STEERING

R25660

ROLLER

TRACK ASSEMBLY - single flange, order R33571 for service, Figure 210, Includes: Ref. 1 - 15

8шт.

1

280375

NUT,3/4"-10, GC

hex, self-locking, 3/4" - 10 NC

2шт.

2

R25676

WASHER

special

2шт.

3

R25673

RETAINER

seal, track roller mounting

2шт.

4

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

shaft

2шт.

5

R39273

SEAL

FACE- track roller, Includes: Ref. 6 - 8 and kit

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

seal repair, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

9

R25679

SPACER

seal

2шт.

10

A20301

CUP

TAPERED ROLLER BEARING - track roller

2шт.

11

R25674

BEARING

CUP - tapered roller

2шт.

12

R25677

SPACER

tapered roller bearing

1шт.

13

R25682

HUB

- track roller, single flange

1шт.

14

221-841

PLUG

hex socket head, 1/4" NPT

1шт.

15

R25678

SHAFT

roller

1шт.

R25670

ROLLER

TRACK ROLLER ASSEMBLY - double flange, order R33572 for service, Figure 210, Includes: Ref. 16 - 30

4шт.

16

280375

NUT,3/4"-10, GC

hex, self-locking, 3/4" - 10 NC, R25670 track roller-double flange

2шт.

17

R25676

WASHER

special, R25670 track roller-double flange

2шт.

18

R25673

RETAINER

seal, track roller mounting, R25670 track roller-double flange

2шт.

19

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

shaft, R25670 track roller-double flange

2шт.

20

R39273

SEAL

FACE - R25670 track roller-double flange, Includes: Ref. 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

BODY - seal, split, R25670 track roller-double flange

1шт.

D36826

SEAL KIT

seal repair, R25670 track roller-double flange, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - rubber, R25670 track roller-double flange

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R25670 track roller-double flange

1шт.

24

R25679

SPACER

seal, R25670 track roller-double flange

2шт.

25

A20301

CUP

TAPERED ROLLER BEARING - R25670 track roller-double flange

2шт.

26

R25674

BEARING

CUP - tapered, R25670 track roller-double flange

2шт.

27

R25677

SPACER

bearing, R25670 track roller-double flange

1шт.

28

R25671

BEARING, ROLLER

HUB - track roller, double flange

1шт.

29

221-841

PLUG

- hex socket head, 1/4" NPT, R25670 track roller-double flange

1шт.

30

R25678

SHAFT

R25670 track roller-double flange

1шт.
