(206) - CARRIER ROLLERS, R25680 TRACK CARRIER ROLLER, FOR I.D., SEE ITEM 3 OF ILLUSTRATION CASE MADE ROLLER

Запчасти Case 1150C (206) - CARRIER ROLLERS, R25680 TRACK CARRIER ROLLER, FOR I.D., SEE ITEM 3 OF ILLUSTRATION CASE MADE ROLLER (11) - TRACKS/STEERING

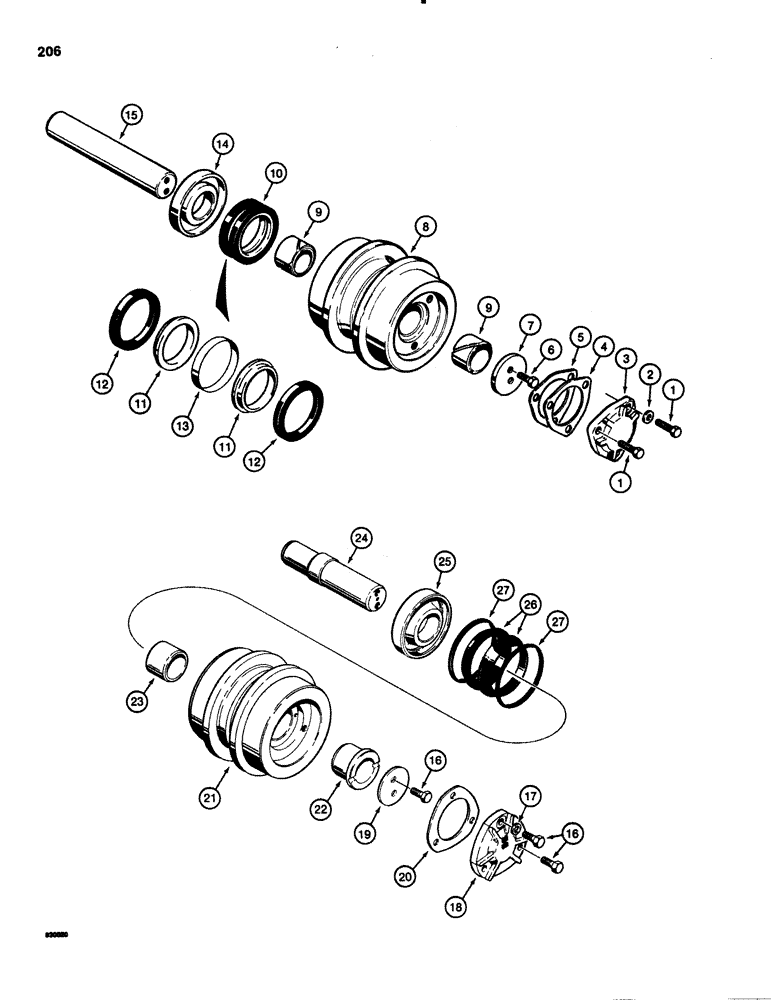

Схема запчастей Case 1150C - (206) - CARRIER ROLLERS, R25680 TRACK CARRIER ROLLER, FOR I.D., SEE ITEM 3 OF ILLUSTRATION CASE MADE ROLLER (11) - TRACKS/STEERING
8
5
7
19
3
9
1
6
17
2
14
9
21
4
26
1
16
23
11
15
24
13
11
27
12
27
25
22
20
12
16
18
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R25680

CARRIER

ROLLER ASSEMBLY - track, order R33594 for service, see below, Includes: Ref. 1 - 15

2шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

copper

1шт.

3

R29288

COVER ASSY

roller

1шт.

4

D30384

SHIM,.010" Thk

(0.25 mm), Brown .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(.13 mm ), Blue .005" Thk

1шт.

6

26-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex head, 3/8" - 16 NC x 3/4", G8

2шт.

7

D30382

WASHER

RETAINER - shaft

1шт.

8

R25683

CARRIER

HUB - roller

1шт.

9

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

split

2шт.

10

R39273

SEAL

FACE - roller, Includes: Ref. 11 - 13 and kit

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - face seal, split

1шт.

D36826

SEAL KIT

seal repair

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D35265

COLLAR

RETAINER - seal

1шт.

15

R25685

SHAFT

roller

1шт.

R33594

ROLLER

CARRIER ROLLER ASSEMBLY - track, Includes: Ref. 16 - 27

2шт.

16

813-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm x 1.75 x 20 mm, grade 8.8, R25670 track roller-double flange, for id see ref, 18 of illustration, other Fg. 211

5шт.

17

D35288

WASHER

copper, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

3шт.

18

R33602

CAP

COVER - R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

19

R33601

RETAINER

shaft, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg 211

1шт.

20

R33606

GASKET

cover, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

R33596

HUB CARRIER

ASSEMBLY - R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

HUB - R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

22

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

hub, outer, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

23

R33597

BUSHING

hub, inner, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

R33600

SHAFT

ASSEMBLY - roller, R25670 track roller-double flange, for id see item 18 of illustration, other pg 211, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT - R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

25

R33599

RETAINER

seal, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

1шт.

R33607

SEAL

FACE- R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rubber, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

2шт.

27

N6847

O-RING,75mm ID x 8mm Width

seal, R25670 track roller-double flange, for id see ref. 18 of illustration, other Fg. 211

2шт.
