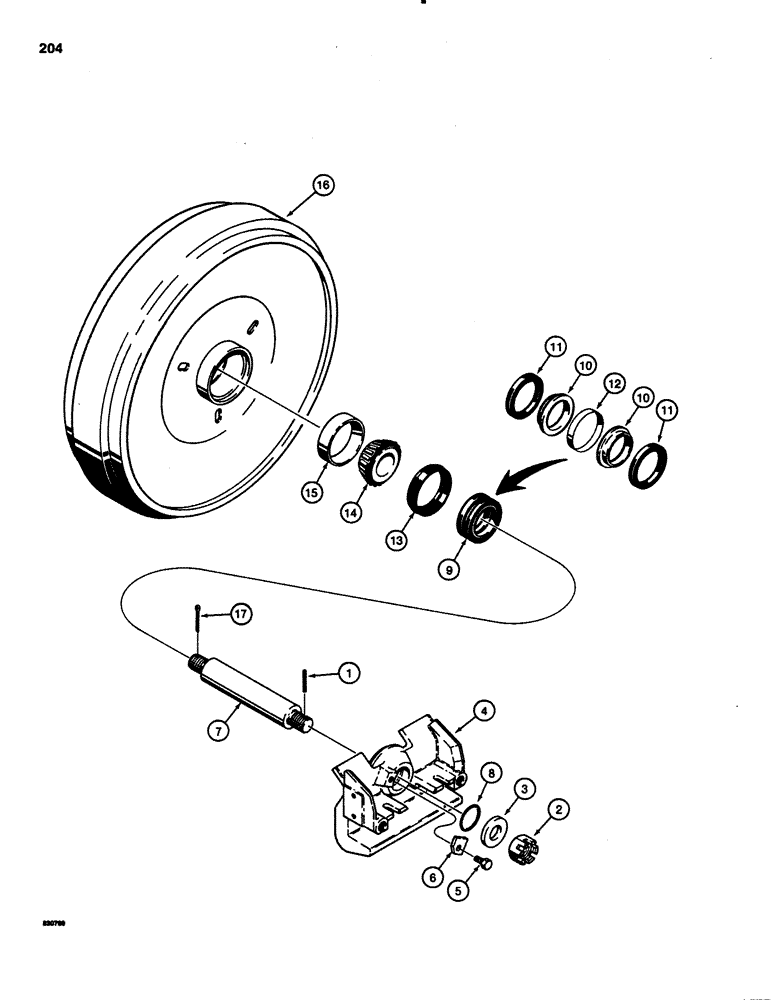

Запчасти Case 1150C (204) - R45817 IDLER AND MOUNTING (11) - TRACKS/STEERING

R45817

FRONT IDLER

IDLER ASSEMBLY - track, with locking tab for shaft, see ref. 6 for identification, if used, Includes: Ref. 1 - 17

2шт.

For idler assembly without locking tab, see Figure 202.

1шт.

1

138-218

LOCK PIN,5/16" x 1 7/8", Slotted

PIN, 5/16" x 1 7/8", Slotted

1шт.

2

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

3

D43745

WASHER

- hardened

2шт.

4

R45660

BRACKET

- idler assembly

2шт.

5

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

6

R46823

PLATE

TAB - locking

1шт.

7

R46990

SHAFT

- idler

1шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- idler shaft

2шт.

9

R39273

SEAL

FACE SEAL ASSEMBLY - idler assembly, Includes: Ref. 10 - 12 and kit

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - face seal

1шт.

D36826

SEAL KIT

KIT - face seal repair, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

13

R34742

SEAL

RETAINING RING - seal

2шт.

14

R25651

BEARING

TAPERED ROLLER BEARING - idler assembly

2шт.

15

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

16

R25647

FRONT IDLER

IDLER - hub

1шт.

17

132-155

PIN

COTTER PIN - 1/4" x 2-1/8"

1шт.
