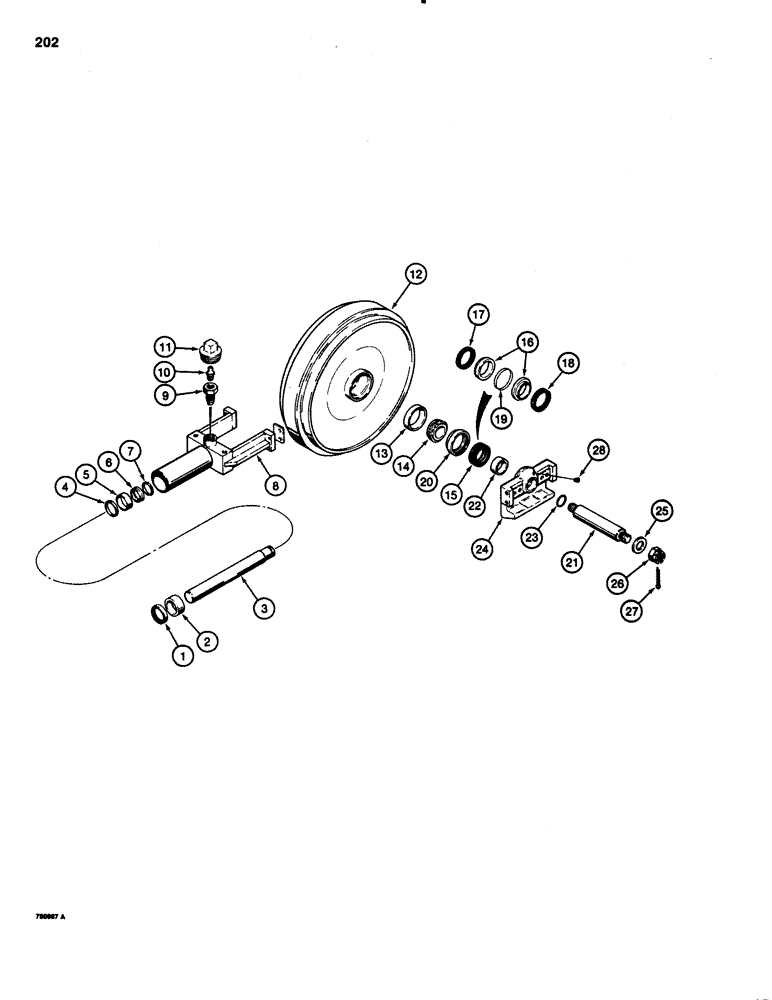

Запчасти Case 1150C (202) - TRACK ADJUSTER AND R25650 IDLER ASSEMBLY (11) - TRACKS/STEERING

R34137

CYLINDER

TRACK ADJUSTER ASSEMBLY - yoke, Includes: Ref. 1 - 11

2шт.

1

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER - piston

1шт.

2

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

SLEEVE - wiper

1шт.

3

R39210

PISTON

- track adjuster

1шт.

4

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

BACKUP RING - sleeve, yoke end

1шт.

5

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

SLEEVE - seal

1шт.

6

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

- piston

1шт.

7

A32413

SNAP RING,#212, 1.997", Ext

- seal

1шт.

8

R34138

CLEVIS

YOKE - track adjuster

1шт.

9

D35287

CHECK VALVE,5/8" - 18

CHECK VALVE - track adjuster

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

R25650

FRONT IDLER

IDLER ASSEMBLY - track, without locking tab for shaft, if used, Includes: Ref. 12 - 28

2шт.

For idler assembly with locking tab for shaft, see Figure 204.

1шт.

12

R25647

FRONT IDLER

IDLER - hub

1шт.

13

A27732

BEARING CUP

CUP - tapered roller bearing

2шт.

14

R25651

BEARING

TAPERED ROLLER BEARING - idler

2шт.

15

R39273

SEAL

FACE SEAL - idler, Includes: Ref. 16 - 19 and kit

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - face seal, split

1шт.

D36826

SEAL KIT

KIT - seal repair

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

19

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

20

R34742

SEAL

RETAINING RING - seal

2шт.

21

R25652

SHAFT

- idler assembly

1шт.

22

R25653

SPACER,55.58mm ID x 63.5mm OD x 24.38mm L

- seal

2шт.

23

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- idler shaft

2шт.

24

R44590

BRACKET

- R25650 idler assembly only, with oil level check hole replaces R25648 bracket without check hole

2шт.

25

D43745

WASHER

- special

2шт.

26

25-1320

SLOTTED NUT,1 1/4"-12, G5

2шт.

27

132-155

PIN

COTTER PIN - 1/4" x 2-1/8"

2шт.

28

221-841

PLUG

- hex socket head, 1/4" NPT, if used

2шт.
