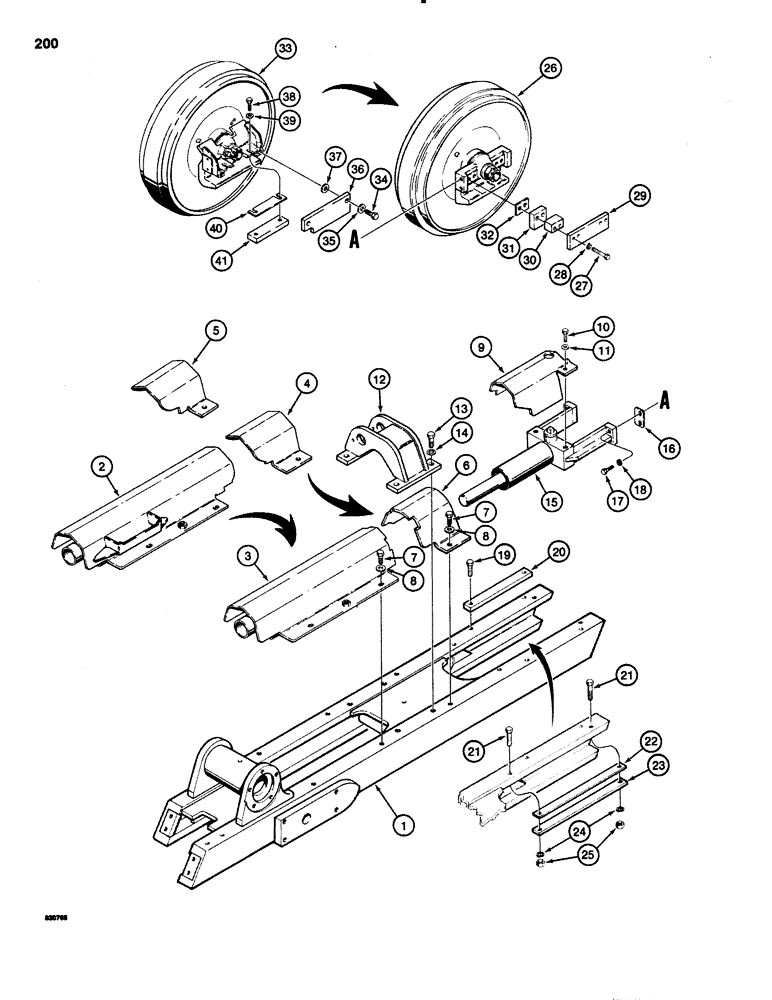

Запчасти Case 1150C (200) - IDLER AND RECOIL SYSTEM MOUNTING, R25650 IDLER AND MOUNTING, IF USED (11) - TRACKS/STEERING

1

REF

INSTRUCTION

TRACK FRAME - see Figure 198 for correct track frame

1шт.

2

R43096

HOUSING

- recoil, loader models, right-hand

1шт.

2

R43095

HOUSING

- recoil, loader models, left-hand, not shown

1шт.

3

R43094

GUARD

HOUSING - recoil, dozer and drawbar models

2шт.

4

R42891

COVER

- track adjuster, loader models, right-hand

1шт.

5

R42890

COVER ASSY

COVER - track adjuster, loader models, left-hand

1шт.

6

R42892

COVER

- track adjuster, dozer models

2шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

12шт.

8

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8"

12шт.

9

R42893

COVER

- track adjuster, with lube hole

2шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

11

R24718

WASHER

- hardened, 1/2"

4шт.

12

R36522

BRACKET

- equalizer beam, dozer and drawbar models

1шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

15

R34137

CYLINDER

TRACK ADJUSTER ASSEMBLY - parts list Figure 202

2шт.

16

R37875

SHIM,0.813mm Thk

Track adjuster 0.813mm Thk

1шт.

17

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Use with Loctite Hex, 1/2"-13 x 1 1/2", G8, Full Thd

8шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

20

R25692

BAR

PLATE - wear, idler

4шт.

21

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

22

R25691

SHIM

- idler wear strip

1шт.

23

R25689

BAR

STRIP - idler wear

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

25-1010

NUT,5/8"-11, G5

8шт.

26

R25650

FRONT IDLER

IDLER ASSEMBLY - without locking tab for shaft, parts list Figure 202, if used

2шт.

27

26-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

- hex head, 1/2" - 13 NC x 4"

16шт.

28

92-8

LOCK WASHER,1/2"

16шт.

29

R30204

BLOCK

- thrust, outer

4шт.

30

R30203

SPACER

- block

8шт.

31

R25694

BLOCK

- thrust, inner

8шт.

32

R25693

SHIM,.0299" Thk

Idler .0299" Thk

1шт.

33

R45817

FRONT IDLER

IDLER ASSEMBLY - with locking tab for shaft, parts list Figure 204, if used

2шт.

34

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

35

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

8шт.

36

R44516

PLATE

- thrust, idler

4шт.

37

D35268

SHIM,1/32" Thk

Thrust plate 1/32" Thk

1шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

39

R24323

WASHER

- hardened, 1/2"

8шт.

40

R40783

SHIM

- idler wear plate

1шт.

41

R40793

PLATE

- idler wear

4шт.
