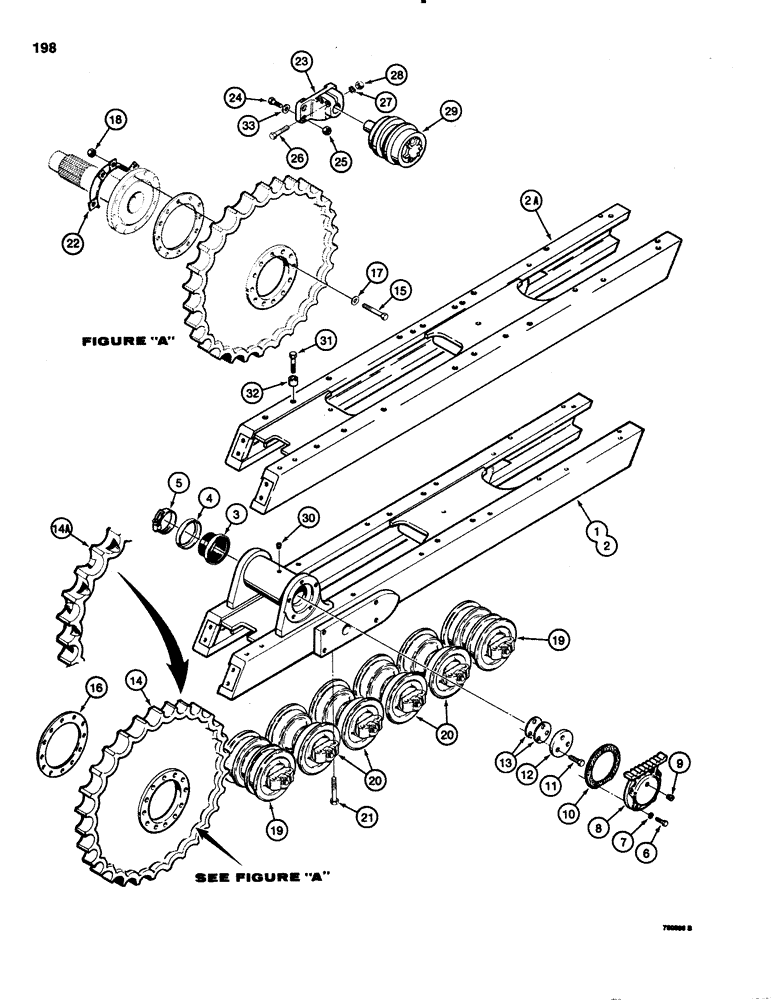

Запчасти Case 1150C (198) - TRACK FRAMES, SPROCKET, AND ROLLERS (11) - TRACKS/STEERING

1

R39227

TRACK FRAME - left-hand, drawbar and 62" (1575 mm) gauge standard dozer models, not shown

1шт.

1

R39234

TRACK FRAME - left-hand, 74" (1880 mm) gauge LGP dozer models, not shown

1шт.

1a

R39236

TRACK CHAIN

TRACK FRAME - loader models, left-hand, not shown

1шт.

2

R39228

TRACK FRAME - right-hand, drawbar and 62" (1575 mm) gauge standard dozer models

1шт.

2

R39235

TRACK FRAME - right-hand, 74" (1880 mm) gauge LGP dozer models

1шт.

2a

R39237

FRAME

TRACK FRAME - loader models, right-hand

1шт.

3

R41714

SEAL

- pivot shaft

2шт.

4

R41713

GUARD

- pivot shaft seal

2шт.

5

214-180

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - seal, adjustable

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", may replace 1-1/2" long bolt on some models

10шт.

7

92-8

LOCK WASHER,1/2"

10шт.

8

R46782

COVER

ASSEMBLY - pivot shaft, Includes: Ref. 9

2шт.

9

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

10

R27377

GASKET,0.38mm Thk

- cover

6шт.

11

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex head, 5/8" - 18 NF x 1-3/4"

6шт.

12

R36949

PLATE

- retaining

2шт.

13

R27540

SHIM,.031" Thk

Pivot shaft plate .031" Thk

1шт.

14

R45916

DRIVE SPROCKET

SPROCKET - all models except 74" (1880 mm) gauge LGP dozer models, has 12 bolt holes, may replace sprocket with 8 bolt holes

2шт.

14

R45917

DRIVE SPROCKET

SPROCKET - 74" (1880 mm) gauge LGP dozer models, has 12 bolt holes, may replace sprocket with 8 bolt holes

2шт.

14a

R32725

DRIVE SPROCKET

SPROCKET - relieved, service option, for drawbar and 62" (1575 mm) gauge standard dozer models, if used

2шт.

15

R27242

BOLT

- special, drawbar and 62" (1575 mm) gauge standard dozer models

24шт.

15

R31277

BOLT

- special, 74" (1880 mm) gauge LGP dozer models

24шт.

16

R27241

SHIM,1/32" Thk

Sprocket 1/32" Thk

1шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

24шт.

18

131-737

LOCK NUT

NUT - hex, self-locking, 3/4" - 10 NC

24шт.

19

REF

INSTRUCTION

TRACK ROLLER - double flange, parts list Figures 208 and 210

4шт.

20

REF

INSTRUCTION

TRACK ROLLER - single flange, parts list Figures 208 and 210

8шт.

21

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Use with Loctite Hex, 3/4"-10 x 3", G5

48шт.

22

R36703

GUARD

- final drive shaft, if used

4шт.

23

R27143

BRACKET

- carrier roller

2шт.

24

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8, use with Loctite

8шт.

25

25-1010

NUT,5/8"-11, G5

8шт.

26

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

25-1010

NUT,5/8"-11, G5

4шт.

29

REF

INSTRUCTION

CARRIER ROLLER - track, parts list Figure 206

2шт.

30

221-841

PLUG

- hex socket head, 1/4" NPT

2шт.

31

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, loader models only, track frame to main frame

20шт.

32

R30398

SPACER

- mounting, loader models only

20шт.

33

D35268

SHIM,1/32" Thk

Carrier roller bracket (0.79 mm), Use with upper or lower carrier roller mounting bolts for chain alignment 1/32" Thk

1шт.
