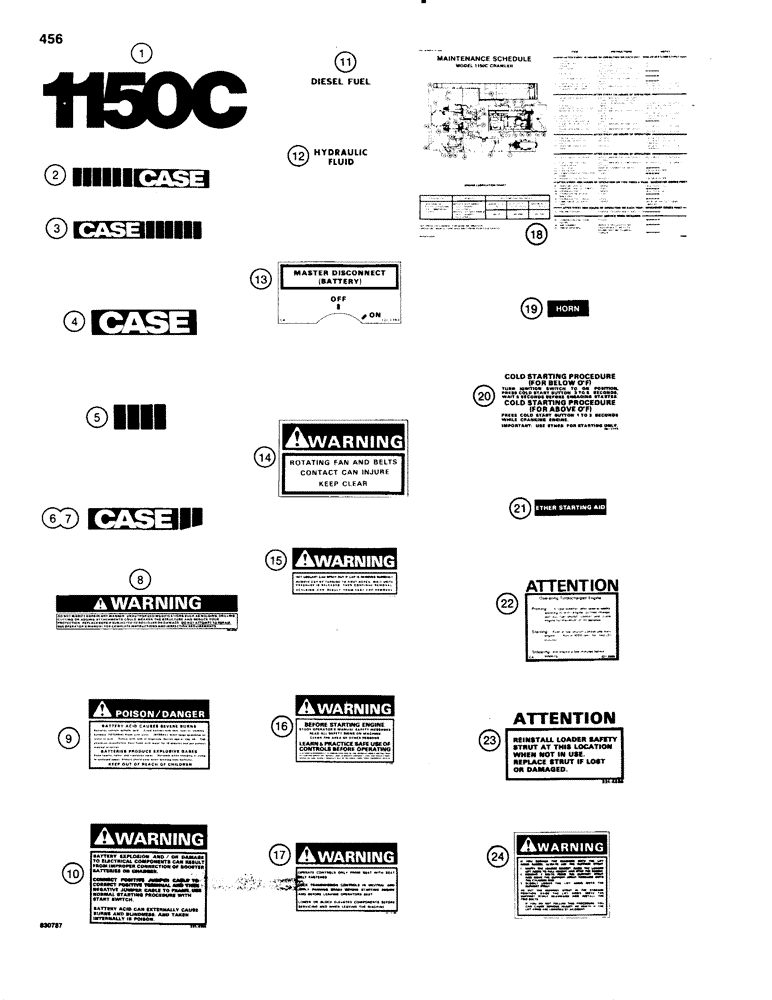

Запчасти Case 1150C (456) - DECALS (09) - CHASSIS/ATTACHMENTS

R42959

DECAL

KIT - decals, also includes items on Figure 458, Includes: Ref. 1 - 24

1шт.

1

321-4627

DECAL

- 1150C

2шт.

2

321-5276

DECAL

- Case, right-hand

1шт.

3

321-5277

DECAL

- Case, left-hand

1шт.

4

321-5273

DECAL

- Case, rear

1шт.

5

321-3122

DECAL

- treads, rear

2шт.

6

321-5274

DECAL

- Case, loader lift frame, right-hand, not shown

1шт.

7

321-5275

DECAL

- Case, loader lift frame, left-hand

1шт.

8

321-4192

DECAL

- Warning, ROPS modification

1шт.

9

321-2996

DECAL

- Poison/Danger, batteries

1шт.

10

321-4190

DECAL

- Warning, booster batteries

1шт.

11

321-230

DECAL

- Diesel Fuel

1шт.

12

321-229

DECAL

- Hydraulic Fluid

1шт.

13

321-2392

DECAL

- Master Disconnect

1шт.

14

321-3596

DECAL

- Warning, fan rotation

3шт.

15

321-5734

DECAL

- radiator pressure

1шт.

16

321-3705

DECAL

- Warning, Before Starting Engine

1шт.

17

321-4188

DECAL

- Warning, operate from seat

1шт.

18

321-4689

DECAL

- Master Maintenance Schedule

1шт.

19

321-3294

DECAL

- horn

1шт.

20

321-2946

DECAL

- ether starting aid, instructions

1шт.

21

321-2435

DECAL

- Ether Starting Aid

1шт.

22

321-2605

DECAL

- Operating Turbocharged Engine

1шт.

23

321-4289

DECAL

- attention, reinstall loader safety strut

1шт.

24

321-6488

DECAL

- usage, loader safety strut

2шт.
