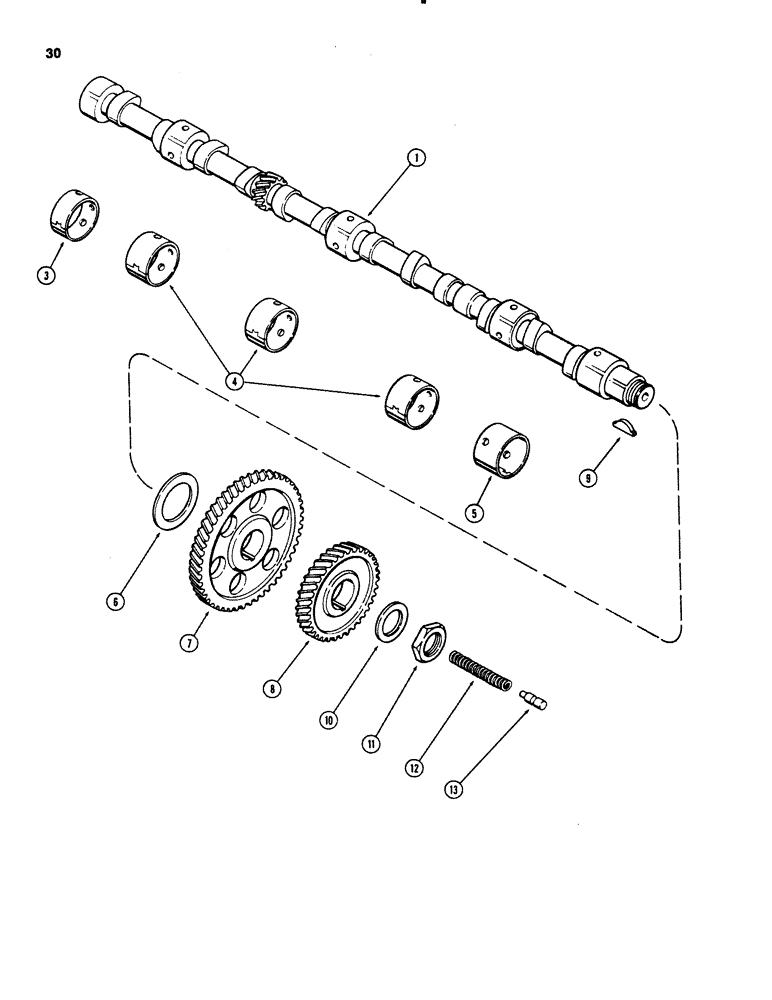

Запчасти Case 1150C (030) - CAMSHAFT, 451BD DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-5/32 inch wide (29.37 mm)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16 inch wide (36.51 mm)

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-5/8 inch wide (41.28 mm)

1шт.

6

A21017

WASHER

- thrust, 2-1/4 x 3-1/4 x 1/8 inch (57.15 x 82.55 x 3.18 mm)

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (Hi-Pro type)

1шт.

10

A31038

THRUST WASHER

- thrust, 1-3/8 x 2-1/4 x 5/32 inch (34.93 x 57.15 x 3.97 mm)

1шт.

11

A58595

NUT

- camshaft gears retaining

1шт.

12

CASA27853

SPRING

- plunger, 3-5/8 inch free length (92.08 mm)

1шт.

13

A27852

PLUNGER

- camshaft (bumper)

1шт.
