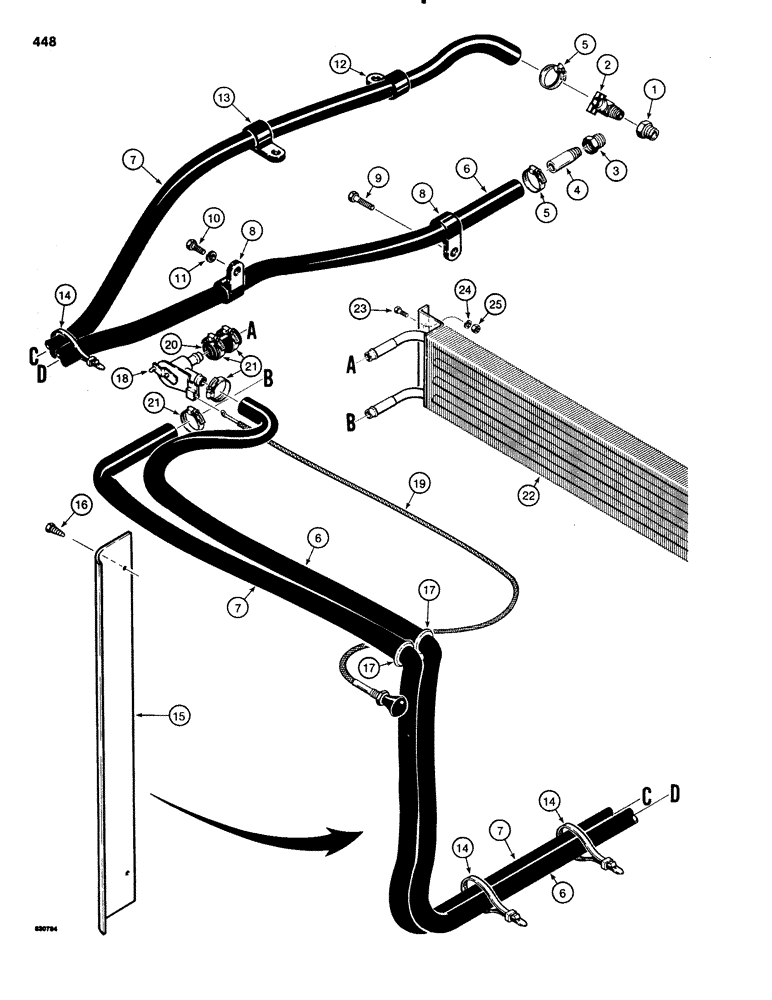

Запчасти Case 1150C (448) - PRESSURIZED CAB, HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" - 3/8", at manifold

1шт.

2

A16764

VALVE

SHUTOFF VALVE - at manifold

1шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

at water pump Hex, 3/4" x 3/8" NPT

1шт.

4

A19940

PIPE

NIPPLE - straight, 3/8" NPT, at water pump

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

2шт.

6

REF

INSTRUCTION

HOSE - from water pump, 259-7/8" (6600 mm) long, cut from A42610

1шт.

7

REF

INSTRUCTION

HOSE - from manifold, 232-5/16" (5900 mm) long on models without turbocharger (cut shorter as required on models with turbocharger), cut from A42610

1шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-style

2шт.

9

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-style, at air cleaner bracket, used in this position on models without a turbocharger only

1шт.

13

51200320

CLAMP

- P-style, at exhaust manifold, used on models without turbocharger only

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

N7779

GUARD

- heater hoses, right-hand side of cab

1шт.

16

187-1514

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW - self-tapping, 1/4" - 20 NC x 5/8"

2шт.

17

353-482

PLUG

GROMMET - 1-3/16" (30 mm) diameter

2шт.

18

F63865

VALVE

FLOW CONTROL VALVE - heater

1шт.

19

F44755

CABLE

- heater control

1шт.

20

REF

INSTRUCTION

HOSE - flow control valve to heater core, 2" (51 mm) long, cut from A42610

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adjustable, hoses

4шт.

22

F45204

HEAT-EXCHANGER

CORE - heater, interchangeable with F45210 heater core

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

26

REF

INSTRUCTION

DECAL - heater valve control, on those guard, see Figure 458, not shown

1шт.

A42610

LARGE HOSE

HOSE - bulk, 5/8" (16 mm) ID x 1" (25 mm) OD x 50 ft. (1524 cm) long

1шт.
