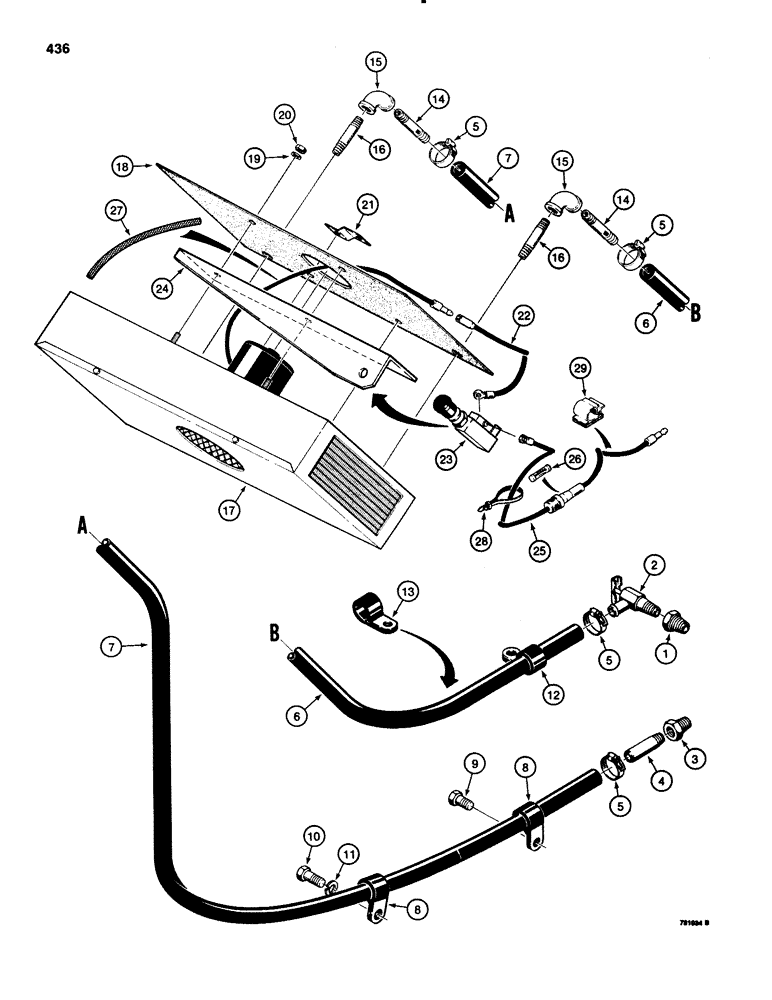

Запчасти Case 1150C (436) - NON-PRESSURIZED CAB, HEATER CIRCUIT (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" - 3/8", at manifold

1шт.

2

A16764

VALVE

SHUTOFF VALVE - at manifold

1шт.

3

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

at water pump Hex, 3/4" x 3/8" NPT

1шт.

4

A19940

PIPE

NIPPLE - straight, 3/8", at water pump

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, adjustable

4шт.

6

REF

INSTRUCTION

HOSE - manifold to heater, 5/8" (16 mm) ID x 51" (1295 mm) long, cut from A42610

1шт.

7

REF

INSTRUCTION

HOSE - water pump to heater, 5/8" (16 mm) ID x 66" (1676 mm)long, cut from A42610

1шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-style

2шт.

9

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- P-style, at air cleaner bracket, used in this position on models without a turbocharger only

1шт.

13

51200320

CLAMP

- P-style, at exhaust manifold, used on models without a turbocharger only

1шт.

14

D65132

FITTING

NIPPLE - special

2шт.

15

221-1376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, 3/8" NPT

2шт.

16

221-1164

HYD CONNECTOR

NIPPLE - pipe, 3/8" x 2"

2шт.

17

R40468

HEATER

ASSEMBLY - parts list Figure 438

1шт.

18

D63394

GASKET

- heater, part of heater assembly, ref. 17

1шт.

19

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

21

R40592

BRACKET - heater

1шт.

22

R40429

CABLE

-, Serial Range: heater-switch

1шт.

23

L33827

SWITCH

- heater

1шт.

24

R43128

BRACKET

- switch mounting

1шт.

25

R40435

CABLE

WIRE - with fuse, from heater switch, Includes: Ref. 26

1шт.

26

223-10

FUSE,10 Amp, Type 3AG

- AGC 10

1шт.

27

R40467

GUARD - hose, if used

1шт.

28

L76747

STRAP

TIE STRAP - wires, if used

1шт.

29

F43611

CLIP

- adhesive, wire

2шт.
