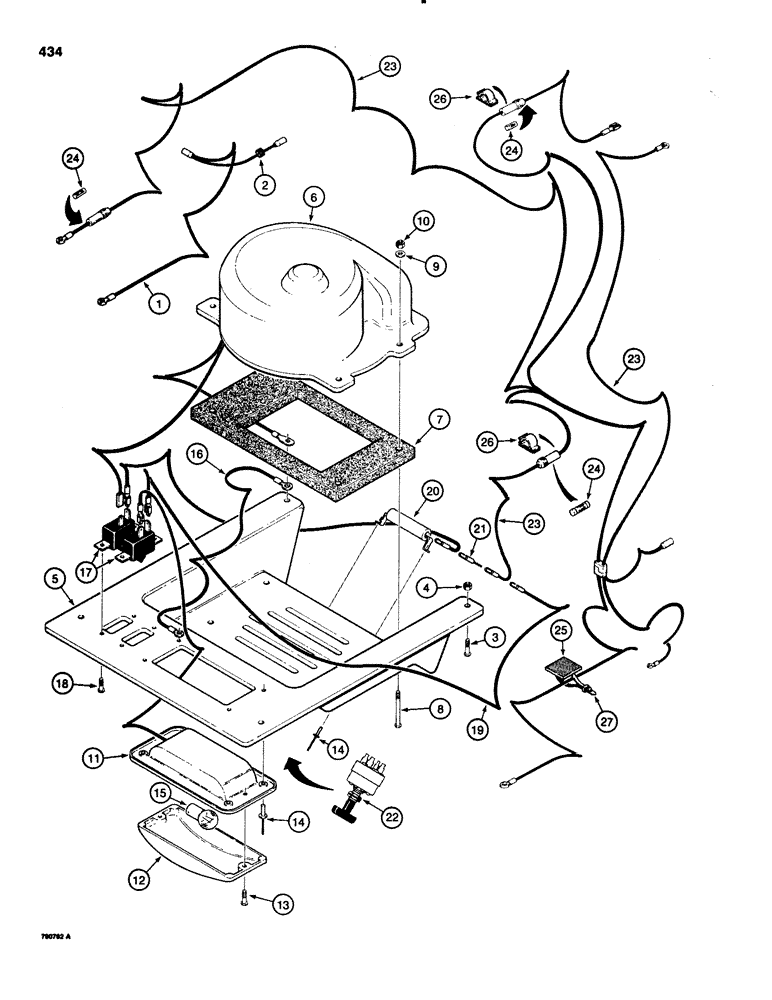

Запчасти Case 1150C (434) - NON-PRESSURIZED CAB, WIRING, DEFROSTER, AND DOME LAMP (09) - CHASSIS/ATTACHMENTS

1

R39626

WIRE - to harness, used before tractor SN 7307881

1шт.

2

353-700

BUSHING

GROMMET - rubber, used before tractor SN 7307881

1шт.

3

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - No. 10 - 24 NC x 5/8", plated

4шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

5

R39543

COVER

- defroster, without hole for front wiper switch, if used

1шт.

5

R43117

COVER

- defroster, with hole for front wiper switch, if used

1шт.

6

F43618

DIFFUSER

DEFROSTER - cab

1шт.

7

F43619

SEAL

- defroster

1шт.

8

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

MACHINE SCREW - No. 10 - 24 NC x 1-1/2"

4шт.

9

195-516

WASHER,#12

- flat, No. 10

4шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

F89772

LAMP

DOME LAMP ASSEMBLY - replace 12 volt bulb with 24 volt bulb below, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - dome lamp

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - dome lamp

1шт.

13

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

MACHINE SCREW - No. 8 - 32 NC x 1/4"

2шт.

14

151-527

POP RIVET - 5/32" x 1/2" Pop, 5/32" x .517"

6шт.

15

D71459

LAMP

BULB - 24 volt, No. 1591

1шт.

16

R39545

CABLE

WIRE - ground, dome lamp

1шт.

17

D75876

IGNITION SWITCH

SWITCH - dome lamp and defroster control

2шт.

18

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

MACHINE SCREW - No. 6 - 32 NC x 1/2"

4шт.

19

A34860

ELECTRICAL WIRE

WIRE -, Serial Range: resistor-switch

2шт.

20

F43625

RESISTOR

- defroster, 10 ohm, 25W

1шт.

21

A34863

ADAPTER

CONNECTOR - electrical

1шт.

22

S225028

IGNITION SWITCH

SWITCH - front wiper, if used

1шт.

23

R37696

HARNESS - cab, used before tractor SN 7307881, Includes: Ref. 24

1шт.

23

N6431

HARNESS - cab, used on tractor Sn 7307881 and after, Includes: Ref. 24

1шт.

24

223-38

FUSE,3 Amp, Type 3AG

- 3 amp, No. AGC 3

3шт.

25

R37564

CLIP

- harness, used with R37696 harness

3шт.

26

F43611

CLIP

- harness, used with N6431 harness

3шт.

27

R40745

STRAP

TIE STRAP - harness, used with R37696 harness

3шт.
