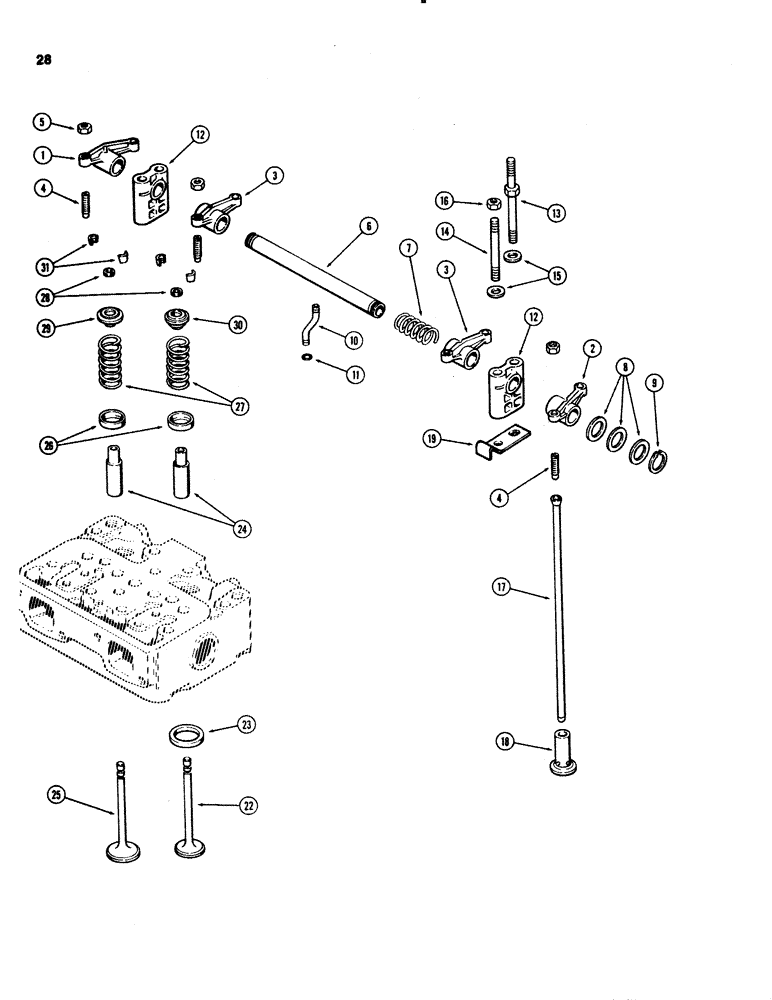

Запчасти Case 1150C (028) - VALVE MECHANISM, 451BD DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148137
ROCKER ARM
ARM ASSEMBLY - rocker, exhaust valves (No. 1, 3 and 5 cylinders) (Includes refs. 4 and 5)
3шт.
2
A148138
ARM
ASSEMBLY - rocker, exhaust valves (No. 2, 4 and 6 cylinders) (Includes refs. 4 and 5)
3шт.
3
A148136
ARM
ASSEMBLY - rocker, intake valves, Includes: Ref. 4 and 5
6шт.
4
A21105
ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"
SCREW - rocker arm adjusting
1шт.
5
25-116
NUT,Hex, 3/8"-24, G5
- 3/8 inch NC hex
1шт.
6
A150545
SHAFT
- rocker arm
3шт.
7
A27877
SPRING
- rocker arm shaft
3шт.
8
A27878
WASHER
- rocker arm shaft, 7/8 x 1-5/16 x 1/32 inch (22.23 x 33.34 x 0.79 mm)
1шт.
9
B18206
SNAP RING,#87, Ext
Ring, Snap, , rocker shaft #87, Ext
6шт.
10
A58657
TUBE
- oil, rocker arm shaft
3шт.
11
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- oil tube, 3/16 x 5/16 x 1/16 inch (4.76 x 7.94 x 1.59 mm)
3шт.
12
A61128
BRACKET
- rocker shaft
6шт.
13
A67121
STUD
- bracket and cover, 7/16 x 6 inch NC
6шт.
14
A58659
STUD
- bracket, 7/16 x 4-5/16 inch NC
6шт.
15
195-29
WASHER,7/16"
- bracket studs, 7/16 x 15/16 x 1/16 inch (11.11 x 23.81 x 1.59 mm)
12шт.
16
25-107
NUT,7/16"-14, G5
- 7/16 inch NC hex
6шт.
17
A157328
ROD
- push (Replaces A141841)
12шт.
18
A20865
TAPPET
LIFTER - push rod (standard)
12шт.
18
A21857
TAPPET
LIFTER - push rod (0.010 inch oversize)
12шт.
19
A157197
STRAP
- rocker shaft bracket
6шт.
22
A42130
VALVE
- exhaust (Set of 2)
3шт.
23
A41783
GUIDE
INSERT - exhaust valve seat
6шт.
24
A21023
INSERT
GUIDE - intake and exhaust valves
12шт.
25
A42129
PACKAGE
VALVE - intake (Set of 2)
3шт.
26
A66328
SEAT
- intake and exhaust valve springs
12шт.
27
A66444
SPRING
- intake and exhaust valves
12шт.
28
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
S - valve stems
12шт.
29
A44645
KIT
RETAINER - intake valves (Set of 2 retainers and 4 locks)
3шт.
30
A66336
ROTATOR
RETAINER - exhaust valves (roto-caps)
6шт.
31
A27872
LOCK
- valve keepers
24шт.
Выбрано товаров: 30
