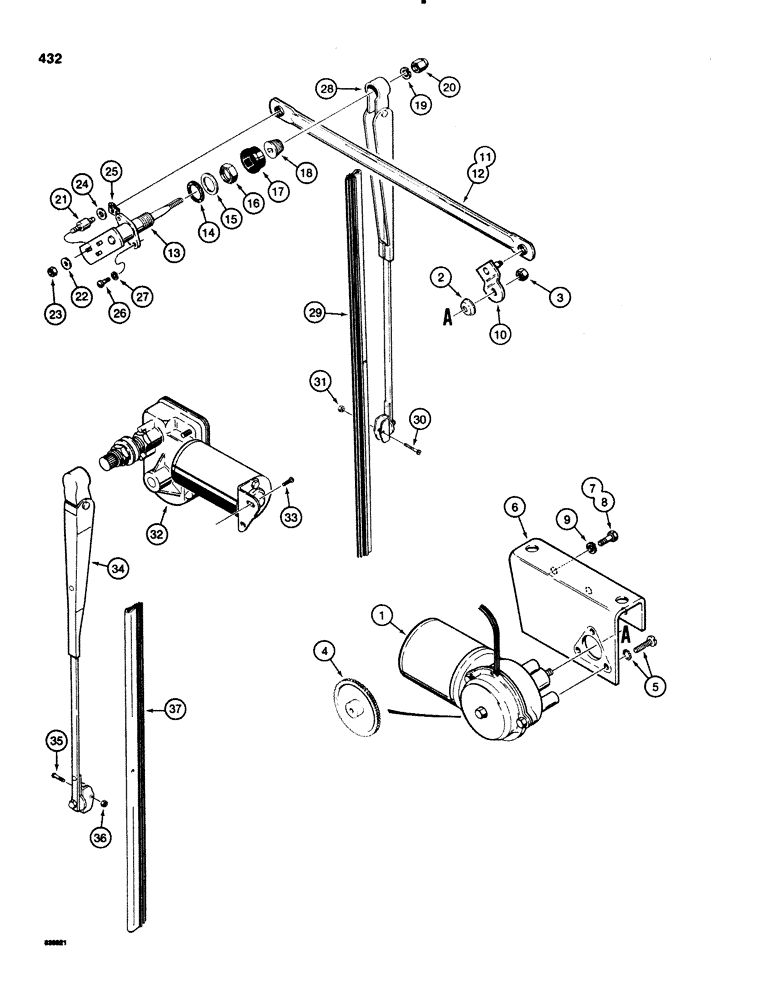

Запчасти Case 1150C (432) - WINDSHIELD WIPERS, USED ON NON-PRESSURIZED CABS ON TRAC SN 7307881 & AFT & ON PRESSURIZED CABS (09) - CHASSIS/ATTACHMENTS

F93654

WIPER MOTOR

MOTOR ASSEMBLY - front windshield wiper, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

2

D71411

WASHER

BELLEVILLE SPRING - motor mounting

1шт.

3

F44452

LOCK NUT

- special locking

1шт.

4

N6029

GEAR

- drive, plastic

1шт.

5

D72849

SCREW

- with lock washer, Serial Range: motor-bracket

3шт.

6

D72850

BRACKET

- motor mounting

1шт.

7

182-580

SCREW,Slotted Pan Hd, 1/4"-28 X 3/4"

MACHINE SCREW - 1/4" - 28 NF x 3/4", used on all non-pressurized models and on dozer models with pressurized cab

2шт.

8

182-511

SCREW,Sl Pan Hd, 1/4" - 28 x 1/2"

MACHINE SCREW - 1/4" - 28 NF x 1/2", used on loader models with pressurized cab

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

A36091

ARM

- drive

1шт.

11

D86566

LINK, CONNECTING

LINK - wiper arm, 14-5/8' (372 mm) long, used on all non-pressurized cabs and on dozer models with pressurized cab

1шт.

12

N7672

LINK, CONNECTING

LINK - wiper arm, 12-13/16" (325 mm) long, used on loader models with pressurized cab

1шт.

D72848

SHAFT

PIVOT AND SHAFT ASSEMBLY - windshield wiper, Includes: Ref. 13 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - windshield wiper pivot

1шт.

14

D71417

SPECIAL WASHER

WASHER - felt

1шт.

15

D71418

WASHER

- flat

1шт.

16

D71419

NUT

- special

1шт.

17

D71420

CAP

COVER - rubber

1шт.

18

D71421

TOOL

BUSHING - with teeth

1шт.

19

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

20

D71422

NUT

DOME NUT - shaft

1шт.

21

D73642

PIN

- special

1шт.

22

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4", plated

1шт.

23

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

24

A22431

WASHER

- spacer

2шт.

25

D71414

CLIP

RETAINER - spring clip

2шт.

26

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2", plated

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

28

A165060

WIPER ARM

ARM - wiper, front

1шт.

29

A165059

WIPER

BLADE - front wiper arm, Includes: Ref. 30 and 31

1шт.

30

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

31

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

32

N6445

MOTOR - rear windshield wiper

1шт.

Ref. 32--Orville Products wiper Motor

1шт.

33

182-77

MACHINE SCREW - No. 10 - 24 NC x 3/8"

1шт.

34

F42213

ARM

- wiper, rear

1шт.

35

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching, Includes: Ref. 35 and 36

1шт.

36

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

37

A42580

WIPER BLADE,203.2mm L

BLADE - rear wiper arm

1шт.
