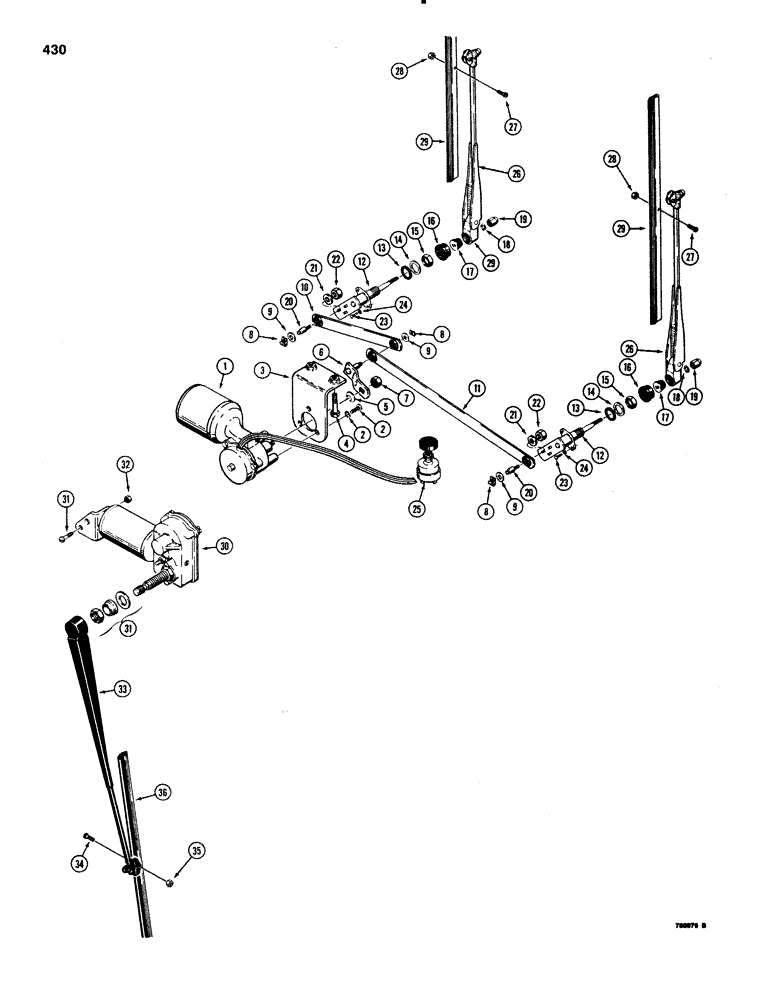

Запчасти Case 1150C (430) - NON-PRESSURIZED CAB, WINDSHIELD WIPERS, USED BEFORE TRACTOR SN 7307881 (09) - CHASSIS/ATTACHMENTS

1

R37766

ELECTRIC MOTOR

MOTOR - front wiper

1шт.

2

D72849

SCREW

- with washer

3шт.

3

R37779

BRACKET

- motor

1шт.

4

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

2шт.

5

D71411

WASHER

- special

1шт.

6

R37768

ARM

- drive

1шт.

7

F44452

LOCK NUT

- special locking

1шт.

8

D71414

CLIP

- spring

3шт.

9

A22431

WASHER

- special

3шт.

10

R37774

LINK

- left-hand, short

1шт.

11

R37775

LINK

- right-hand, long

1шт.

D72848

SHAFT

AND PIVOT ASSEMBLY - windshield wiper, Includes: Ref. 12 - 22

2шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - windshield wiper pivot

1шт.

13

D71417

SPECIAL WASHER

WASHER - felt

1шт.

14

D71418

WASHER

- flat

1шт.

15

D71419

NUT

- special

1шт.

16

D71420

CAP

COVER - rubber

1шт.

17

D71421

TOOL

BUSHING - with teeth

1шт.

18

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

19

D71422

NUT

DOME NUT - shaft

1шт.

20

D73642

PIN

- special

1шт.

21

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - flat, 1/4", plated

1шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

23

F44456

SCREW,0.19" - 32 x 3 3/4"

- round head slotted, No. 10-32 NF x 3/8", plated

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

S225028

IGNITION SWITCH

SWITCH - front wipers

1шт.

26

R41945

ARM

- wiper, front, Includes: Ref. 27 and 28

2шт.

27

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

28

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

29

F42214

WIPER

BLADE - front

2шт.

30

L109876

WIPER MOTOR

MOTOR - rear wiper

1шт.

31

182-166

SCREW - pan head slotted, No. 12 - 24 NC x 3/4"

1шт.

32

225-14112

NUT,#12-24

- hex, No. 12 - 24 NC

1шт.

33

F42721

ARM

- rear wiper, Includes: Ref. 34 and 35

1шт.

34

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

35

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

36

A10894

WINDSHIELD WIPER

BLADE - rear wiper

1шт.
