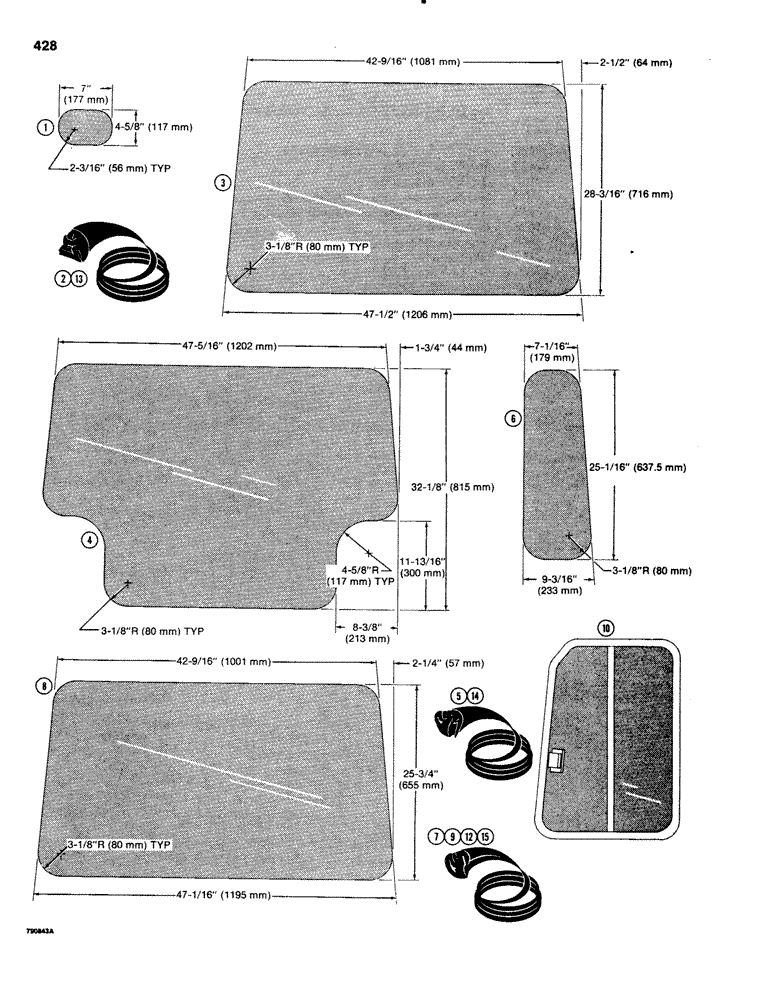

Запчасти Case 1150C (428) - GLASS, USED ON NON-PRESSURIZED CABS ON TRACTOR SN 7307881 & AFT & ON PRESSURIZED CABS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - fuel sight

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - fuel sight glass, 24" (610 mm) long, cut from L35717

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - front windshield, loader models

1шт.

4

NSS

NOT SOLD SEPARAT

GLASS - front windshield, dozer models

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front windshield glass, dozer models, 162" (4115 mm) long; loader models, 151" (3835 mm) long, cut from D88782

1шт.

6

NSS

NOT SOLD SEPARAT

GLASS - lower front windshield, dozer models

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - glass, lower front windshield, dozer models, each 70" (1778 mm) long, cut from D88770

2шт.

8

NSS

NOT SOLD SEPARAT

GLASS - rear

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear glass, 148" (3759 mm) long, cut from D88770

1шт.

10

N6428

WINDOW

GLASS AND FRAME - side, left-hand, front; right-hand, rear

2шт.

11

N6427

WINDOW

GLASS AND FRAME - side, left-hand, rear; right-hand, front, not shown

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - side windows, front and rear, each 95" (2413 mm) long, cut from D88770

4шт.

13

L35717

GASKET

SEAL - 50 ft. (1524 cm) roll

1шт.

14

D88782

SEAL - 50 ft. (1524 cm) roll

1шт.

15

D88770

SEAL

- 50 ft. (1524 cm) roll

1шт.
