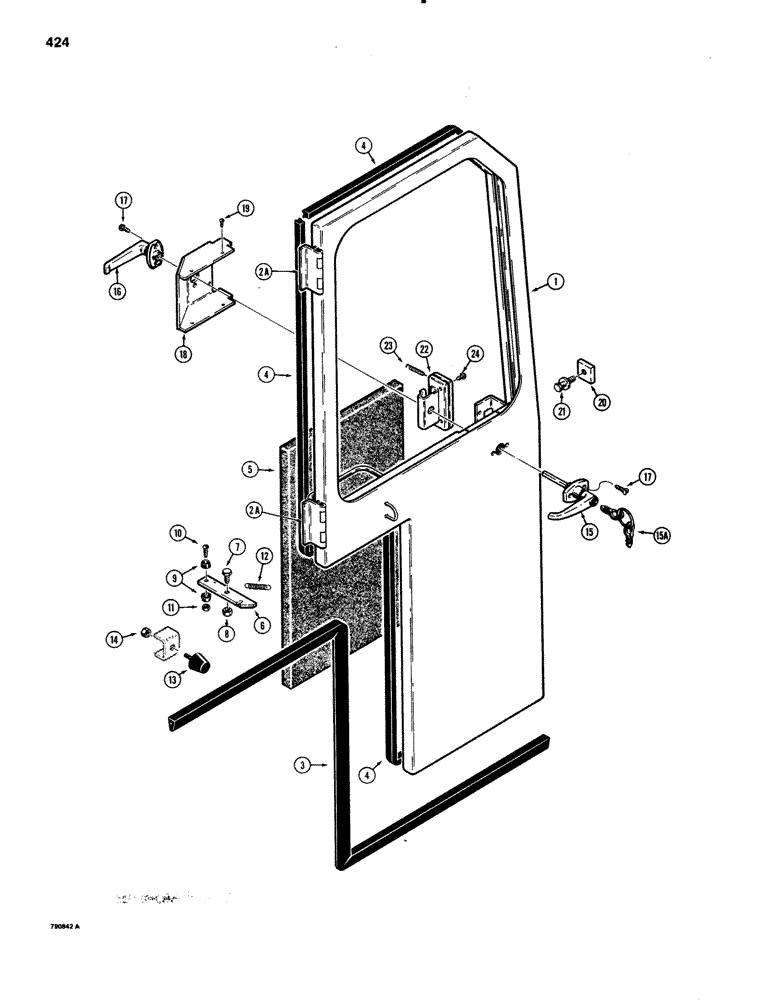

Запчасти Case 1150C (424) - DOORS, USED ON NON-PRESSURIZED CABS ON TRACTOR SN 7307881 & AFT & ON PRESSURIZED CABS (09) - CHASSIS/ATTACHMENTS

1

N6448

DOOR - right-hand

1шт.

2

N6449

DOOR - left-hand, not shown, Includes: Ref. 2A

1шт.

2a

N7053

HINGE - right-hand and left-hand doors

2шт.

3

REF

INSTRUCTION

SEAL - door frame, each 54" (1372 mm) long, cut from N6451, see below

2шт.

4

REF

INSTRUCTION

SEAL - door, each 14 ft. (427 cm) long, cut from N6453, see below

2шт.

5

N6429

PAD - door

2шт.

6

N6423

LATCH

- for open door

2шт.

7

163-33

BOLT - hex head, 1/4" - 20 NC x 3/4"

2шт.

8

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

9

N6443

BUMPER

- latch for open door, inside cab

4шт.

10

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

MACHINE SCREW - No. 10 - 24 NC x 1"

2шт.

11

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

2шт.

12

N6452

SPRING

- latch for open door

2шт.

13

N7673

BUMPER

- door

2шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

15

D88771

LOCK

HANDLE - door, outer, includes two keys, Includes: Ref. 15A

2шт.

15a

D88772

KEY

- handle, set of two on a ring

1шт.

16

D88773

HANDLE

- door, inner

2шт.

17

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

MACHINE SCREW - flat head slotted, No. 10 - 24 NC x 5/8"

8шт.

18

N6420

COVER

- door latch

2шт.

19

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

MACHINE SCREW - No. 10 - 24 NC x 1/2"

8шт.

20

N6422

LARGE PLATE

PLATE - door striker

2шт.

21

N6444

PLATE

STRIKER - door

2шт.

D88774

LATCH ASSY.

LATCH ASSEMBLY - door, left-hand, not shown, Includes: Ref. 22 and 23

1шт.

D88776

LATCH ASSY.

LATCH ASSEMBLY - door, right-hand, Includes: Ref. 22and 23

1шт.

22

NSS

NOT SOLD SEPARAT

LATCH - door

1шт.

23

D88775

SPRING

- right-hand and left-hand latches

1шт.

24

182-579

MACHINE SCREW - 1/4" - 20 NC x 7/8"

8шт.

N6451

SEAL

- door frame, bulk roll, 12 ft. (366 cm) long

1шт.

N6453

SEAL,138 Inches Long

- door, bulk, 50 ft. (1524 cm) long

1шт.
