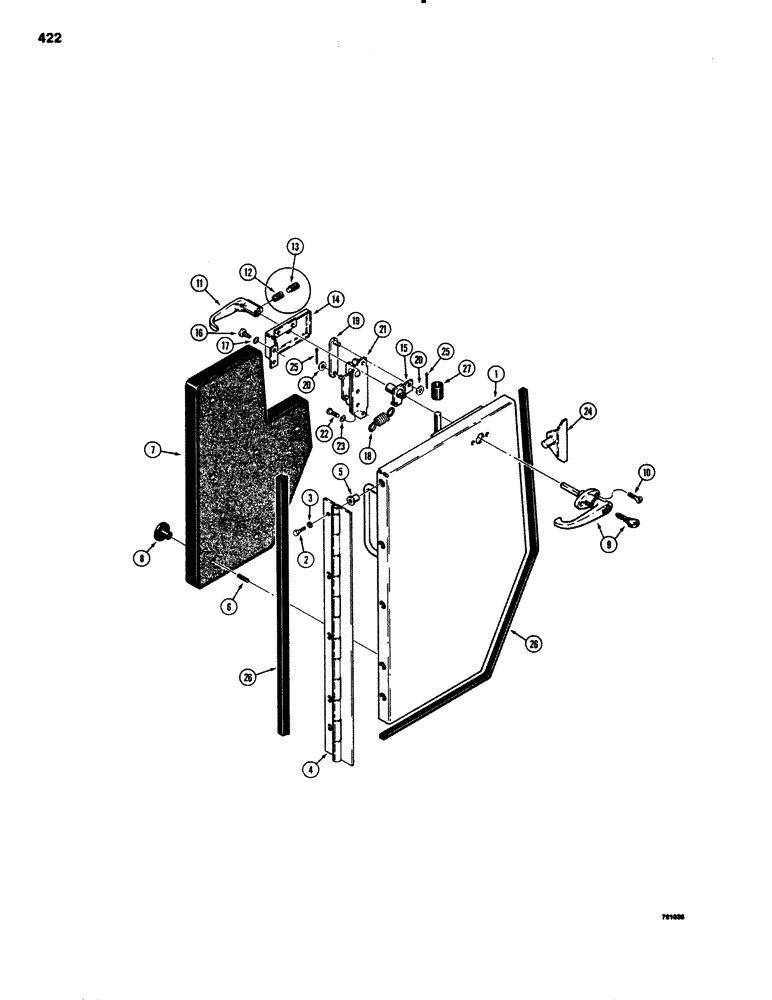

Запчасти Case 1150C (422) - NON-PRESSURIZED CAB, LOWER DOORS, USED BEFORE TRACTOR SN 7307881 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
R37702
DOOR - lower, right-hand, Includes: Ref. 1 - 6
1шт.
R37703
DOOR - lower, left-hand, not shown, Includes: Ref. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME - door
1шт.
2
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
5шт.
3
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
4
R37665
HINGE
- door
1шт.
5
R37829
NUT - special, 1/4" - 20 NC
5шт.
6
R38724
STUD - No. 10 - 24 NC x 1"
7шт.
7
R37821
PAD - liner, left-hand, not shown
1шт.
7
R37820
PAD - liner, right-hand
1шт.
8
R37817
RETAINER - pad
16шт.
9
R37575
HANDLE
- outer
2шт.
10
179-155
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
- oval head, No. 10 - 24 NC x 3/4"
4шт.
11
R37576
HANDLE
- inner
2шт.
12
83-43
SET SCREW - hex socket, 1/4" - 20 NC x 3/16"
2шт.
13
176-134
SET SCREW - slotted, 1/4" - 20 NC x 3/16"
2шт.
14
R37666
COVER
- latch, right-hand
1шт.
14
R37667
COVER
- latch, left-hand
1шт.
15
R37642
LEVER - handle, right-hand
1шт.
15
R37694
PLATE
LEVER - handle, left-hand
1шт.
REF. 15A - THIS IS A SINGLE KEY.(CATALOG ERROR)
1шт.
16
187-339
SELF-TAP SCREW,Slotted Pan Hd, #12 x 5/8"
SCREW - self-tapping, No. 12 - 14 x 5/8"
8шт.
17
193-7
LOCK WASHER,Ext Tooth, #12
WASHER, LOCK, Ext Tooth, #12
8шт.
18
R37572
SPRING
- door latch
2шт.
19
R41077
ASSEMBLY
LEVER - door latch
2шт.
20
195-16
WASHER,#12
- flat, No. 12
10шт.
21
R41074
LEVER
LATCH - right-hand door
1шт.
21
R41075
LATCH
- left-hand door
1шт.
22
173-204
SCREW,Sl Rnd Hd, #10 - 24 x 3/4"
- round head slotted, No. 10-24 NC x 3/4"
8шт.
23
193-6
LOCK WASHER,Ext Tooth, #10
WASHER, LOCK, Ext Tooth, #10
8шт.
24
NSS
NOT SOLD SEPARAT
STRIKER - door
2шт.
25
132-3
COTTER PIN,1/16" x 3/8"
Pin, Split (Cotter), 1/16" x 3/8"
4шт.
26
REF
INSTRUCTION
SEAL - door, 24" (610 mm) long, cut from R37570, see below
2шт.
27
R37706
BUSHING - rubber, door
2шт.
R37570
SEAL - 25 ft. (762 cm) roll
1шт.
REF. N 6453 IS 11.5 FT.
1шт.
Выбрано товаров: 36
