Запчасти Case 1150C (420) - NON-PRESSURIZED CAB, UPPER DOORS, USED BEFORE TRACTOR SN 7307881 (09) - CHASSIS/ATTACHMENTS

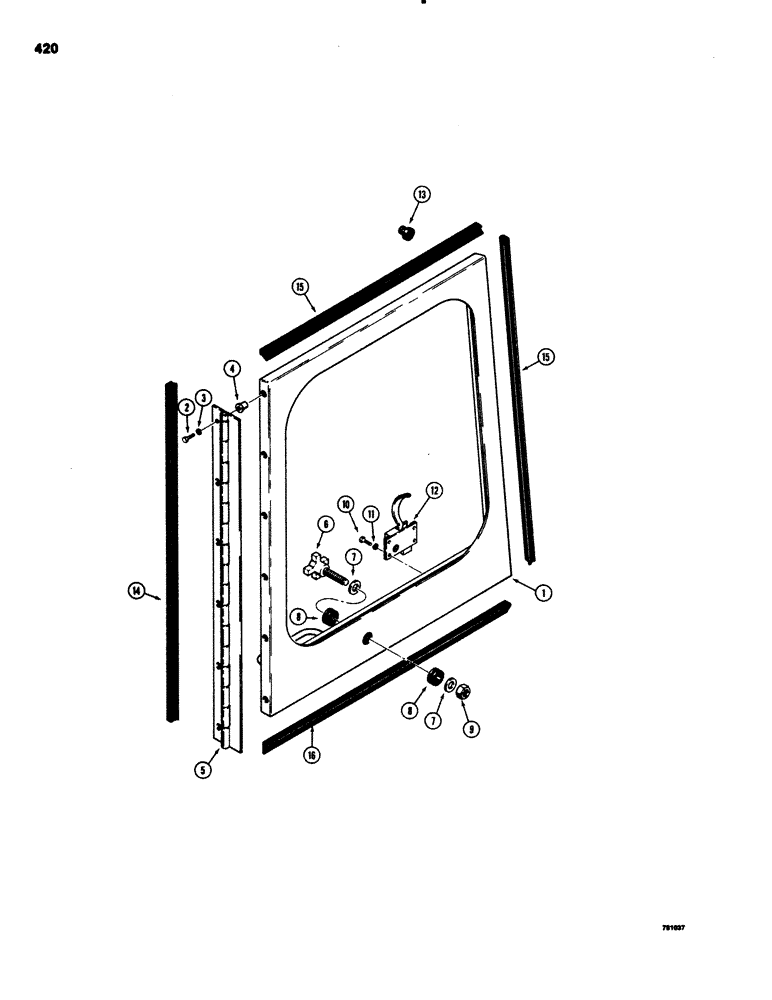

Схема запчастей Case 1150C - (420) - NON-PRESSURIZED CAB, UPPER DOORS, USED BEFORE TRACTOR SN 7307881 (09) - CHASSIS/ATTACHMENTS
6
9
4
7
16
14
8
2
13
1
12
7
11
5
15
3
15
8
10

Артикул

Название

Примечание

Количество

R37704

DOOR - upper, right-hand, Includes: Ref. 1 - 5

1шт.

R37705

DOOR - upper, left-hand, not shown, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - door

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

4

R37829

NUT - special, 1/4" - 20 NC

6шт.

5

R37645

HINGE

- door

1шт.

6

R37676

KNOB - door

2шт.

7

195-106

WASHER,1/2"

- flat, 1/2"

4шт.

8

R37662

GROMMET,9/16" ID x 13/16" Groove Dia

BUSHING - rubber

4шт.

9

131-1402

THIN NUT,1/2"-13, GB, Thin

NUT, LOCK, 1/2"-13, GB, Thin

2шт.

10

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- round head slotted, No. 10-24 NC x 3/4"

8шт.

11

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

8шт.

12

D71511

LATCH

-left-hand .

1шт.

12

D71512

LATCH

- right-hand

1шт.

12

D71512

LATCH

- left-hand

1шт.

13

L60224

BUMPER

- rubber

2шт.

14

REF

INSTRUCTION

SEAL - rear side, 5 ft. (152 cm) long, cut from R37570, see below

1шт.

15

REF

INSTRUCTION

SEAL - top and front sides, 3 ft. (91 cm) long, cut from R37709, see below

1шт.

16

REF

INSTRUCTION

SEAL - bottom, 3 ft. (91 cm) long, cut from R37761, see below

2шт.

R37761

SEAL - 25 ft. (762 cm) roll

1шт.

R37570

SEAL - 25 ft. (762 cm) roll

1шт.

R37709

SEAL - 25 ft. (762 cm) roll

1шт.

Выбрано товаров: 23
