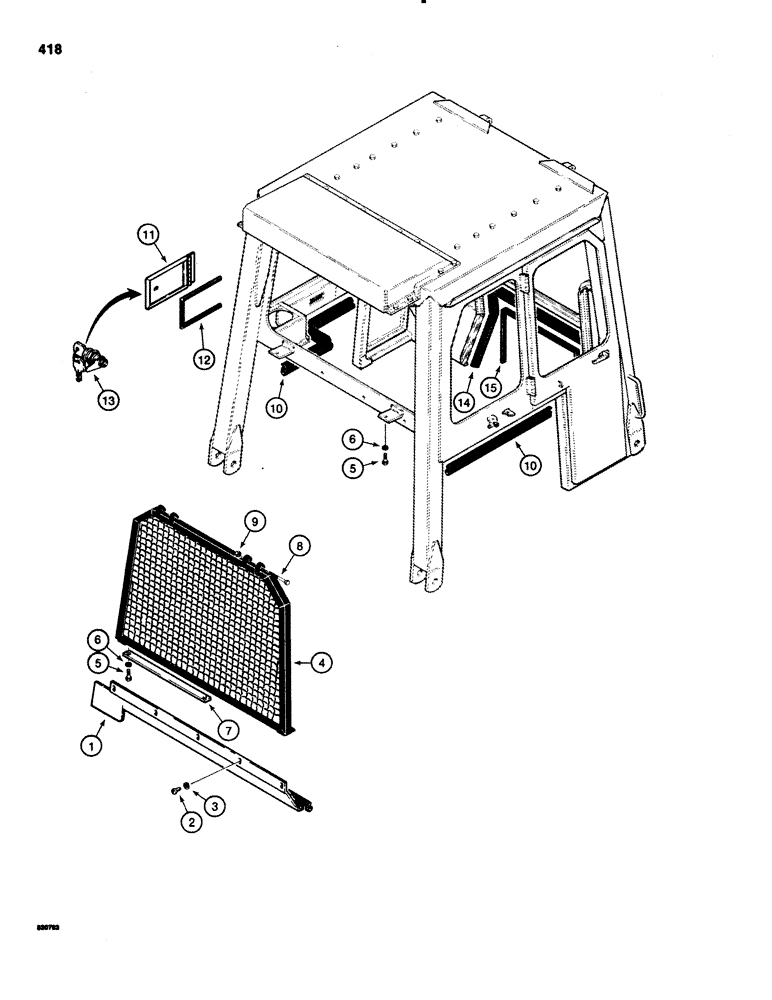

Запчасти Case 1150C (418) - PRESSURIZED CAB, REAR SCREEN, FUEL ACCESS, AND CAB SEALS (09) - CHASSIS/ATTACHMENTS

1

N6421

PANEL - filler, lower

1шт.

2

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - 1/4" - 20 NC x 1/2"

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

N6440

SCREEN - rear, hinged

1шт.

5

163-34

MACHINE SCREW - slotted hex head, 3/8" - 16 NC x 1"

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

N7662

BAR

STRIP - screen mounting, lower

1шт.

8

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

REF

INSTRUCTION

SEAL - rear filler panel and sides of cab, 12 ft. (366 cm) long, cut from D80643, see below

1шт.

11

N6450

DOOR - fuel access

1шт.

12

REF

INSTRUCTION

SEAL - fuel access door, 38" (965 mm) long, cut from D78384, see below

1шт.

13

D54482

LOCK ASSY

LOCK - fuel access door, includes keys

1шт.

14

REF

INSTRUCTION

SEAL - front of cab, dozer models only, 86" (2184 mm) long, cut from D88783, see below

1шт.

15

N6451

SEAL

- front of cab, loader models only

1шт.

D80643

SEAL

- bulk roll, 50 ft. (1524 cm) long

1шт.

D78384

SEAL

- bulk roll, 50 ft. (1524 cm) long

1шт.

D88783

RUBBER MOUNTING

SEAL - bulk roll, 50 ft. (1524 cm) long

1шт.
