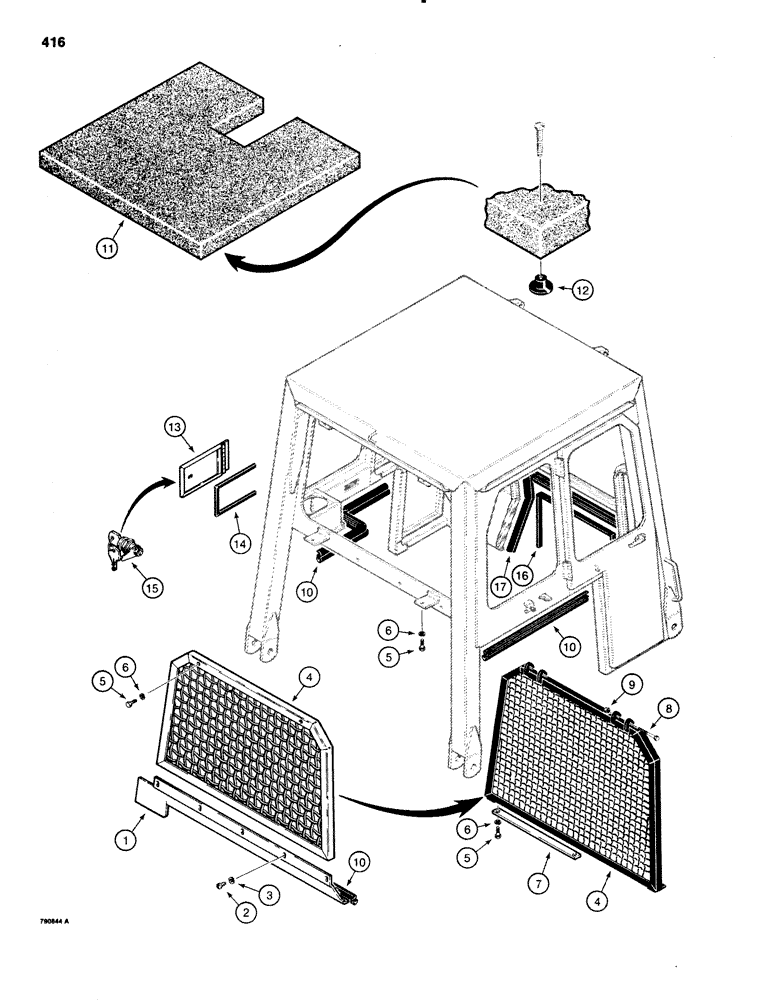

Запчасти Case 1150C (416) - NON-PRESSURIZED CAB, REAR WINDOW, FUEL ACCESS, AND HEADLINER TRAC SN 7307881 & AFT (09) - CHASSIS/ATTACHMENTS

1

N6421

CROSSMEMBER - rear window

1шт.

2

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - 1/4" - 20 NC x 1/2"

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

N6440

SCREEN - rear window, may be bolted-on type or hinged type

1шт.

5

163-34

BOLT - hex head, 3/8" - 16 NC x 1"

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

N7662

BAR

STRIP - hinged screen mounting only, lower, if used

1шт.

8

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Hinged screen mounting, if used Hex, 3/8"-16 x 3 3/4", G5

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Hinged screen mounting, if used 3/8"-16, G5

2шт.

10

REF

INSTRUCTION

SEAL - crossmember, rear window and sides, 12 ft. (366 cm) long, cut from D80643, see below

1шт.

11

N6430

HEADLINER - roof

1шт.

12

R37161

RETAINER

- headliner

8шт.

13

N6450

DOOR - fuel access

1шт.

14

REF

INSTRUCTION

SEAL - fuel access door, 38" (965 mm) long, cut from D78384, see below

1шт.

15

D54482

LOCK ASSY

LOCK - fuel access door, keys included

1шт.

16

N6451

SEAL

- front, cab, 12 ft. (366 cm) long, loader models only

1шт.

17

REF

INSTRUCTION

SEAL - front, cab, 86" (2184 mm) long, dozer models only, cut from D88783, see below

1шт.

D80643

SEAL

- 50 ft. (1524 cm) roll

1шт.

D78384

SEAL

- 50 ft. (1524 cm) roll

1шт.

D88783

RUBBER MOUNTING

SEAL - 50 ft. (1524 cm) roll

1шт.
