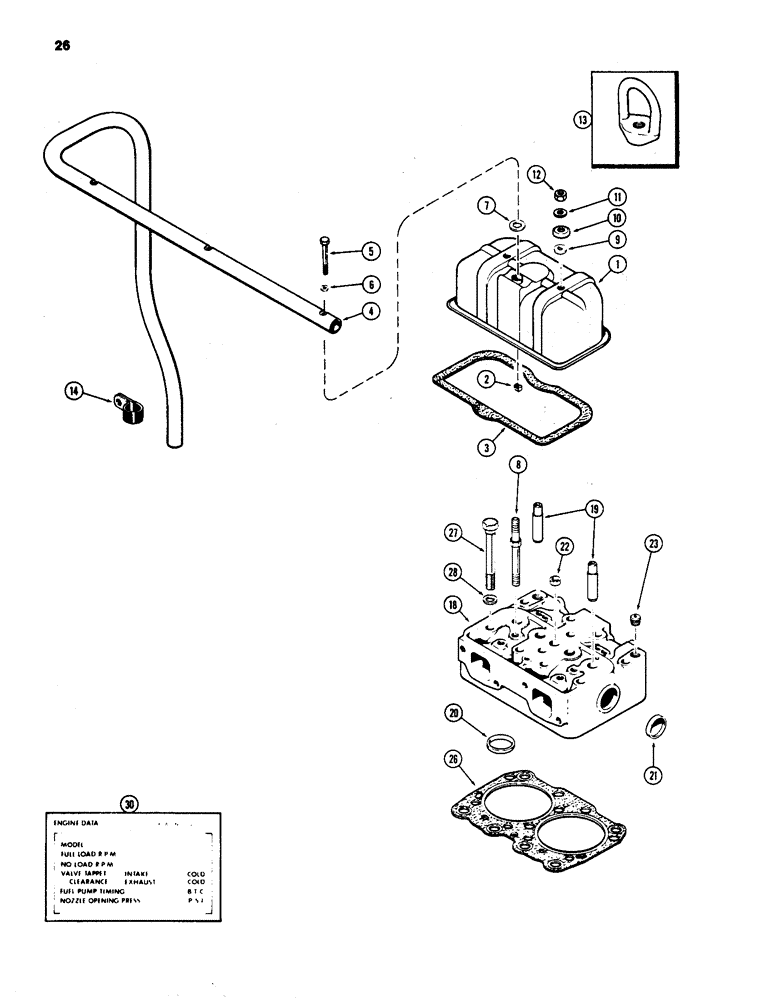

Запчасти Case 1150C (026) - CYLINDER HEAD AND COVER, 451BD DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4 inch tinnerman

1шт.

3

REF

INSTRUCTION

GASKET - cylinder head cover to cylinder head (See Figure 042)

3шт.

4

A65433

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

6

A34133

GASKET

- breather tube, upper, 1/4 x 1/2 x 1/16 inch fiber (6.35 x 12.7 x 1.59 mm)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower, 11/16 x 1-1/4 x 1/4 inch (17.46 x 31.75 x 6.35 mm)

3шт.

8

A67121

STUD

- rocker arm bracket and cylinder head cover, 7/16 x 6 inch NC

6шт.

9

A142098

GROMMET

- cover stud

6шт.

10

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud

6шт.

11

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16 inch (11.91 x 23.42 x 1.59 mm)

6шт.

12

25-107

NUT,7/16"-14, G5

- 7/16 inch NC hex

6шт.

13

A60567

EYE

- engine lifting

2шт.

14

D34033

CLAMP

- breather tube

1шт.

18

A66441

HEAD

ASSEMBLY - cylinder (Casting #A58522), Includes: Ref. 19 - 22

3шт.

19

A41783

GUIDE

- intake and exhaust valves

4шт.

20

A21023

INSERT

- exhaust valve seat

2шт.

21

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8 inch cup type (41.28 mm)

2шт.

22

A58620

PLUG,Cup, 3/4", Stainless

- 3/4 inch cup type (19.05 mm)

3шт.

23

221-1843

PLUG

- 3/8 inch PT, socket head

6шт.

26

REF

INSTRUCTION

GASKET - cylinder head (See Figure 042)

3шт.

27

A76638

BOLT

- cylinder head, 5/8 x 6-1/4 inch NC hex

30шт.

28

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 1/8 inch (15.88 x 25.4 x 3.18 mm)

30шт.

30

321-2315

DECAL

- engine data

1шт.
