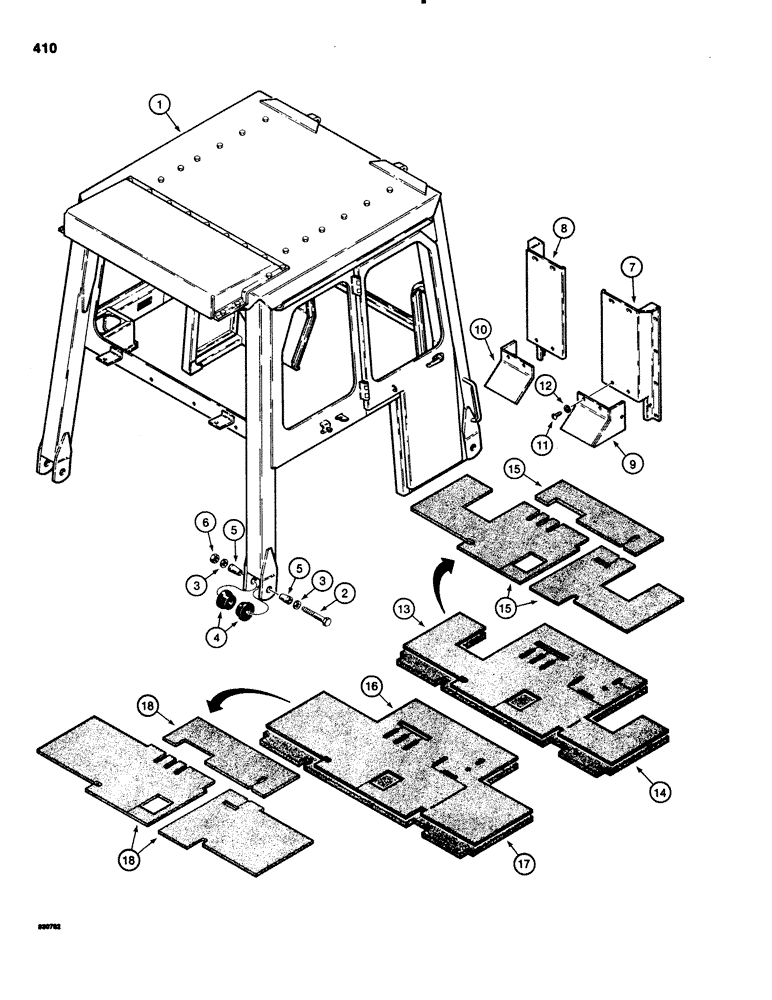

Запчасти Case 1150C (410) - PRESSURIZED CAB, FRAME, MOUNTING, AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, machinery item, see Figure 002 for ordering

1шт.

2

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

8шт.

4

F44214

MOUNTING PARTS

INSERT - rubber

8шт.

5

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- rubber

8шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" - 10 NC

4шт.

7

N6434

PANEL - upper, right-hand, loader models only

1шт.

8

N6435

PANEL - upper, left-hand, loader models only

1шт.

9

N6436

PANEL - lower, right-hand, loader models only

1шт.

10

N6437

FILLER

PANEL - lower, left-hand, loader models only

1шт.

11

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - 1/4" - 20 NC x 1/2"

16шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

13

N6432

FLOORMAT - loader models, one-piece, no longer available, order R47407 floormat, ref. 15

1шт.

14

N6433

BASE - floormat, loader models, one-piece, no longer used

1шт.

15

R47407

FLOORMAT - loader models, three-piece

1шт.

16

N6441

FLOORMAT - dozer models, one-piece, no longer available, order R47408 floormat, ref. 18

1шт.

17

N6442

BASE - floormat, dozer models, one-piece, no longer used

1шт.

18

R47408

FLOORMAT - dozer models, three-piece

1шт.
