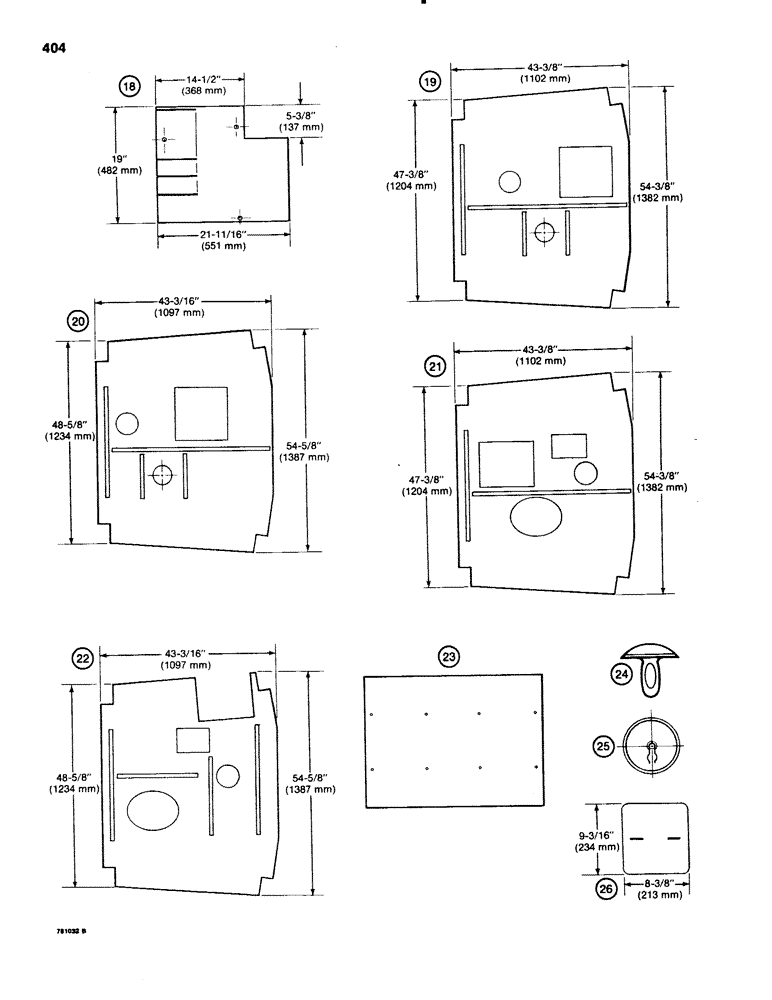

Запчасти Case 1150C (404) - NOISE REDUCTION PADS (09) - CHASSIS/ATTACHMENTS

18

REF

INSTRUCTION

PAD - floor, left-hand, cut from R30870

1шт.

19

REF

INSTRUCTION

PAD - hood, loader models without turbocharger, cut from R30870

1шт.

20

REF

INSTRUCTION

PAD - hood, dozer and drawbar models without turbocharger, cut from R30870

1шт.

21

REF

INSTRUCTION

PAD - hood, loader models with turbocharger, cut from R30870

1шт.

22

REF

INSTRUCTION

PAD - hood, dozer and drawbar models with turbocharger, cut from R30870

1шт.

23

R42135

PAD

HEADLINER - ROPS roof

1шт.

24

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - ROPS headliner

8шт.

25

R37160

RETAINER

- noise reduction pad

1шт.

26

REF

INSTRUCTION

PAD - cover, control valve access, inner side of hydraulic reservoir frame

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm)

1шт.

345-44

ADHESIVE

- for attaching pads to metal surfaces, spray can, 23 fluid ounces

1шт.
