Запчасти Case 1150C (392) - SEATS AND SEAT BELTS, SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

1

R36082

SEAT

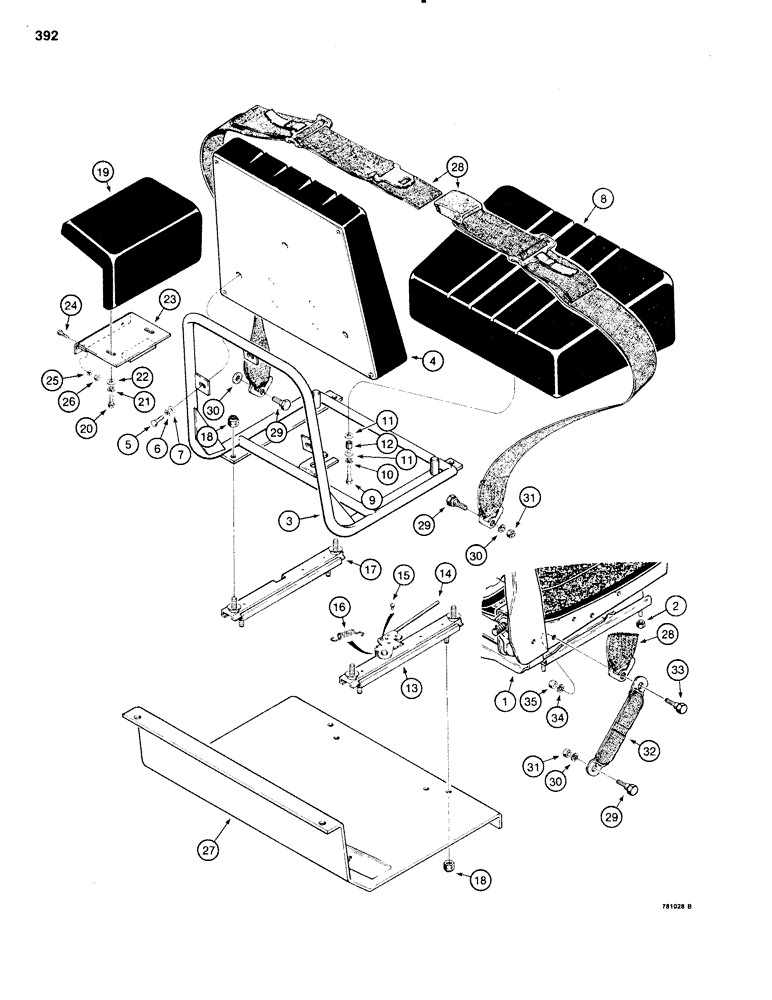

SUSPENSION SEAT ASSEMBLY - parts list Figure 394

1шт.

2

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

3

R40835

SEAT SUPPORT

FRAME - seat, standard

1шт.

4

R27596

CUSHION

BACKREST - seat,standard

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Standard seat Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

6

92-6

LOCK WASHER,3/8"

standard seat 3/8"

3шт.

7

195-25

WASHER,3/8"

flat, , standard seat 3/8"

3шт.

8

R39323

CUSHION

standard seat

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Standard seat Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

standard seat 3/8"

1шт.

11

195-25

WASHER,3/8"

flat, , standard seat 3/8"

2шт.

12

D35217

BUSHING

SPACER - seat cushion mounting, standard

1шт.

R27894

RUNNER

SLIDE ASSEMBLY - seat, right-hand, standard seat, Includes: Ref. 13 - 16

1шт.

13

A45060

SPRING

SLIDE - seat, standard

1шт.

14

R25577

LEVER

HANDLE - seat adjusting, standard

1шт.

15

45-311

RIVET - 3/16" x 11/16" (Replaced 45-310), standard seat

2шт.

16

L35503

SPRING

handle, standard seat

1шт.

17

R27898

RUNNER

SLIDE - seat, left-hand, standard

1шт.

REF. 17-THE SCREW USED IN THE SLIDE IS R27897.

1шт.

18

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, standard seat

8шт.

19

R39322

CUSHION

ARMREST - seat, parts used w/ both

2шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Parts used w/ both seats Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

21

92-5

LOCK WASHER,5/16"

parts used w/ both seats 5/16"

4шт.

22

195-21

WASHER,5/16"

- flat, , Parts used w/ both seats 5/16"

4шт.

23

R34710

SUPPORT

BRACKET - armrest mounting, parts used w/ both seats

2шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Parts used w/ both seats Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Parts used w/ both seats 1/4"

4шт.

26

25-104

NUT,1/4"-20, G5

Parts used w/ both seats 1/4"-20, G5

4шт.

27

R41409

LARGE PLATE

SUPPORT - seat mounting, for noise reduction pad see Figure 402, parts used w/ both seats

1шт.

28

D85816

SAFETY BELT

3" (76 mm) wide, if used, parts used w/ both seats

1шт.

28

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide, If used, Parts used w/ both

1шт.

29

F42236

STEP BOLT

SHOULDER - special, parts used w/ both seats

2шт.

30

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Parts used w/ both seats 7/16"

2шт.

31

425-117

NUT,7/16"-20, G5

parts used w/ both seats 7/16"-20, G5

2шт.

32

R45816

SAFETY BELT ,1.80" W

Extension, Used with suspension seat only, Parts used w/ both seats 1.80" W

2шт.

33

R45855

BOLT

SHOULDER BOLT - special, parts used w/ both seats

2шт.

34

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Parts used w/ both seats 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

parts used w/ both seats 7/16"-20, G5

2шт.
